DIGITUS 1U hliníkový PDU do racku 8x C13 2x C19 16A 230VAC 50/60Hz IEC C20 konektor samec

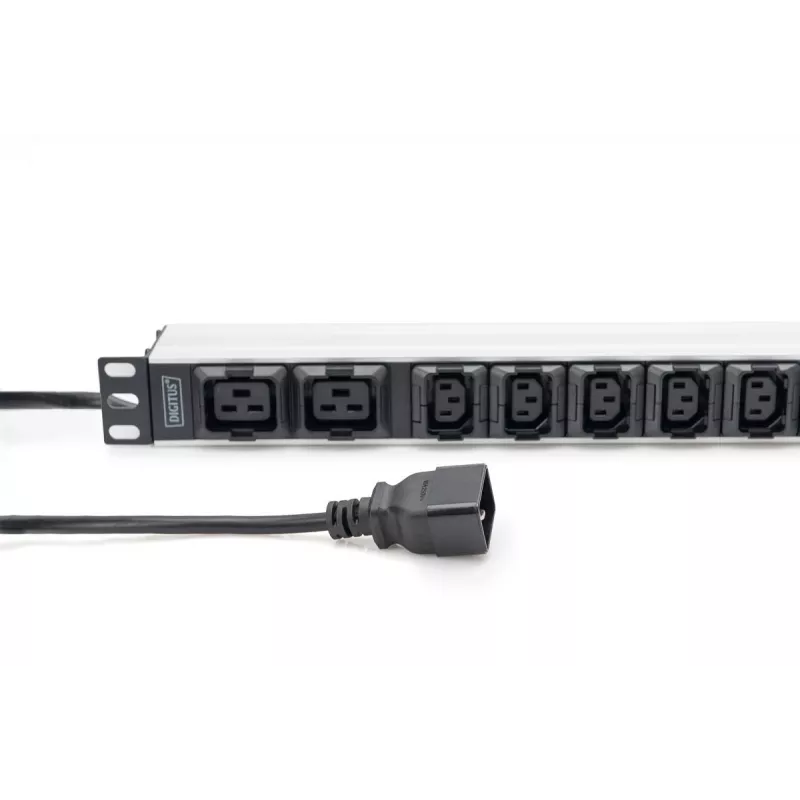

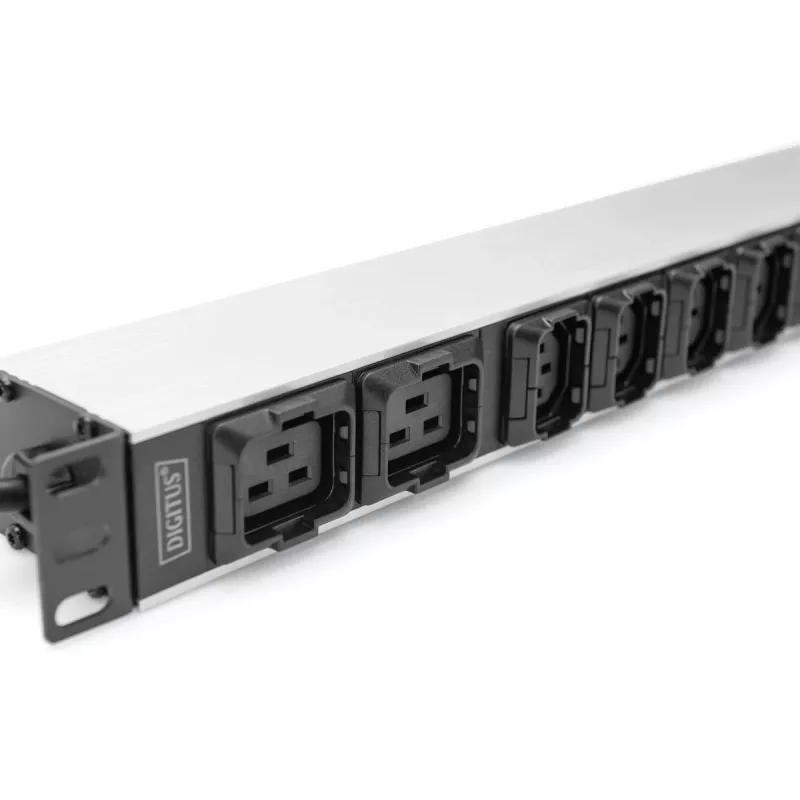

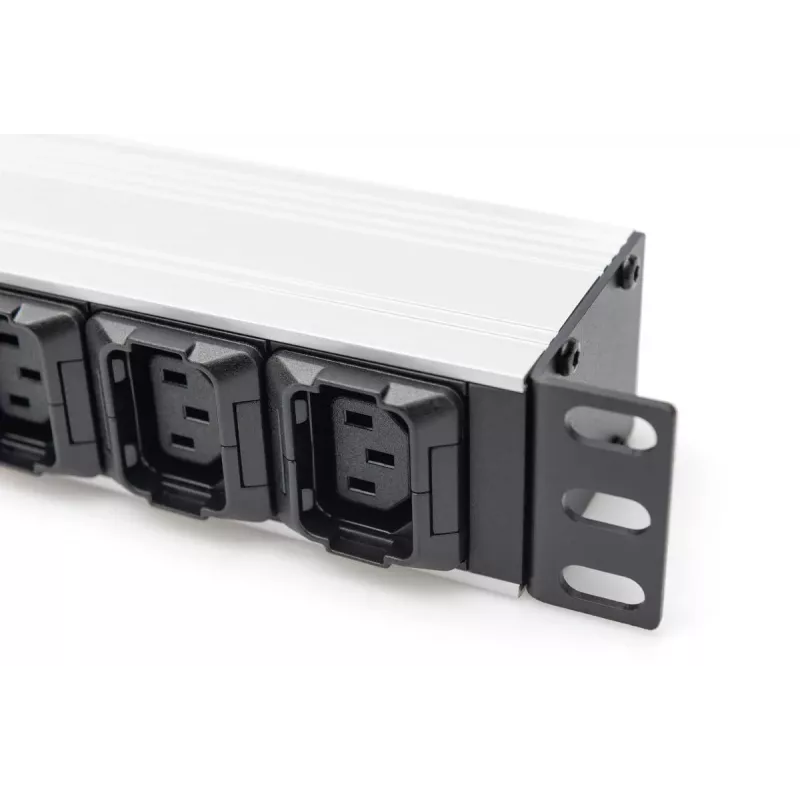

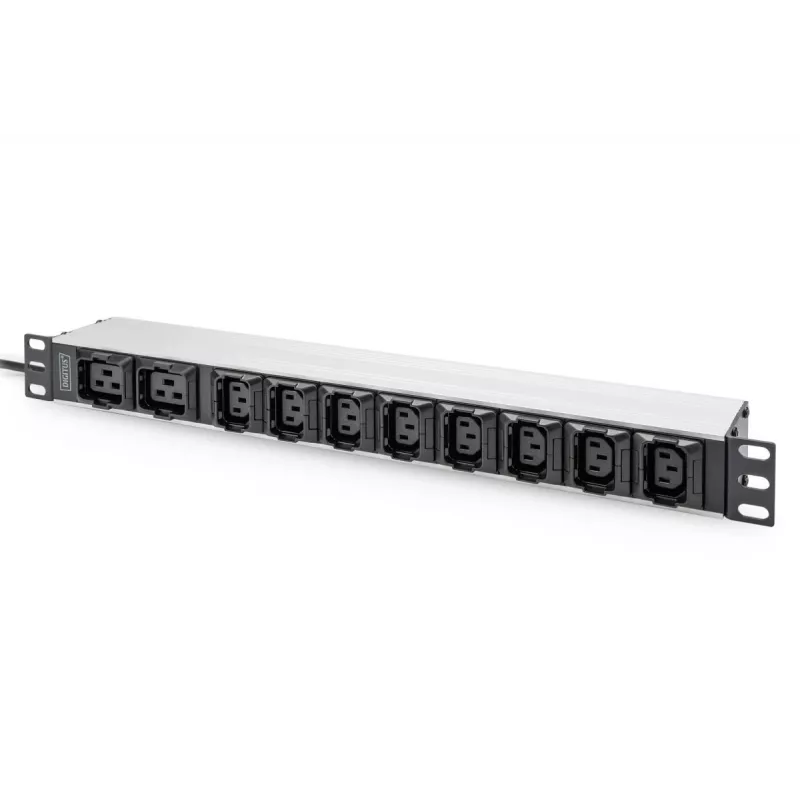

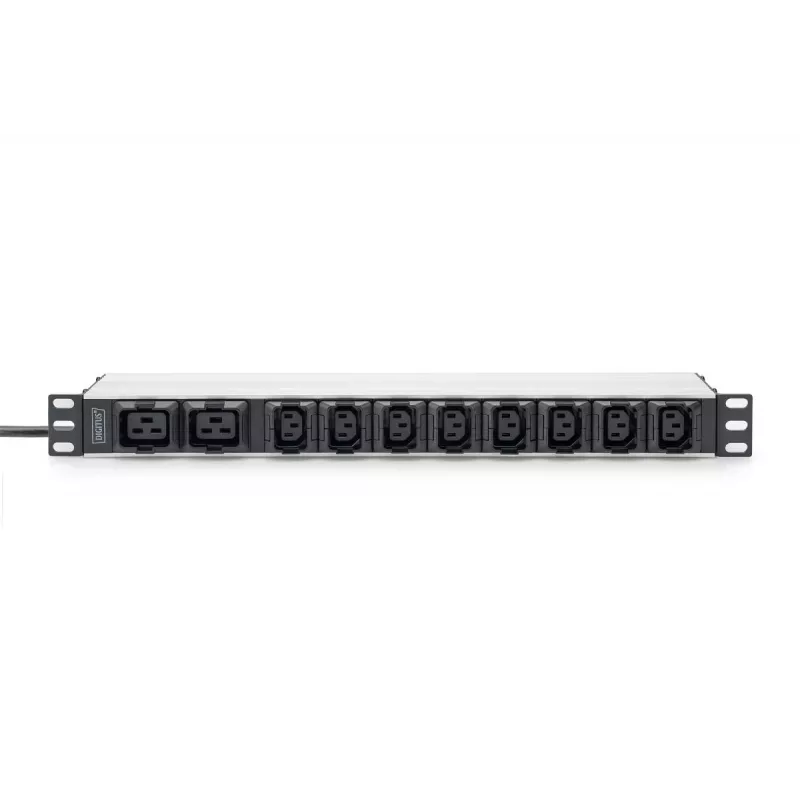

The DIGITUS Socket Strip with Aluminum Profile is a 1U 19" power distribution unit designed for safe and professional current supply in network and IT racks. It features a robust aluminum housing, ten AC outlets (C13 and C19 compatible), and a 2 m cable with an IEC C20 plug for reliable connection to a UPS or mains supply. The unit supports single-phase operation with a nominal input voltage of 230 V and a maximum current of 16 A, and its compact design ensures easy installation and access in server and network cabinets.

Advantages

The PDU provides optimal current distribution for network and IT environments and is suitable for connection to an uninterruptible power supply via its IEC-60320 C20 input. Each individual C13 and C19 output includes integrated extraction protection that prevents unintentional unplugging, while the aluminum profile offers sturdy construction and good heat dissipation. The jack layout supports efficient space management and straightforward cabling in 19" racks.

Suitable for

• Power distribution in server racks and network cabinets
• Connection to UPS systems using an IEC C20 inlet
• IT equipment, switches, routers, and laboratory devices compatible with C13/C19
• Environments requiring compact 1U installation and organized cabling

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-95427
• EAN: 4016032483533
• Rack size: 1U, 19"
• AC outlets: 10 (C13 / C19 compatible)
• Input connector: IEC-60320 C20 plug (2 m cable)
• Nominal input voltage: 230 V
• Maximum current: 16 A
• Weight: 0.85 kg

How to use

Mount the PDU into a 19" rack using standard 1U mounting holes. Connect the IEC C20 plug to an appropriate UPS or power distribution source rated for 230 V / 16 A. Plug equipment into the C13 and C19 outlets as required, ensuring cables are seated properly into the extraction-protected jacks. Distribute connected loads to avoid exceeding the PDU's maximum current rating.

Recommendations

Install the PDU in a dry, ventilated rack space. Verify total connected current and avoid overloading. Use compatible C13/C19 cables and periodically check that extraction protection clips remain secure to prevent accidental disconnection.
