DIGITUS 1U panel na vedenie káblov s kefou, 4 oceľové krúžky 40x75 mm, sivý (RAL 7035)

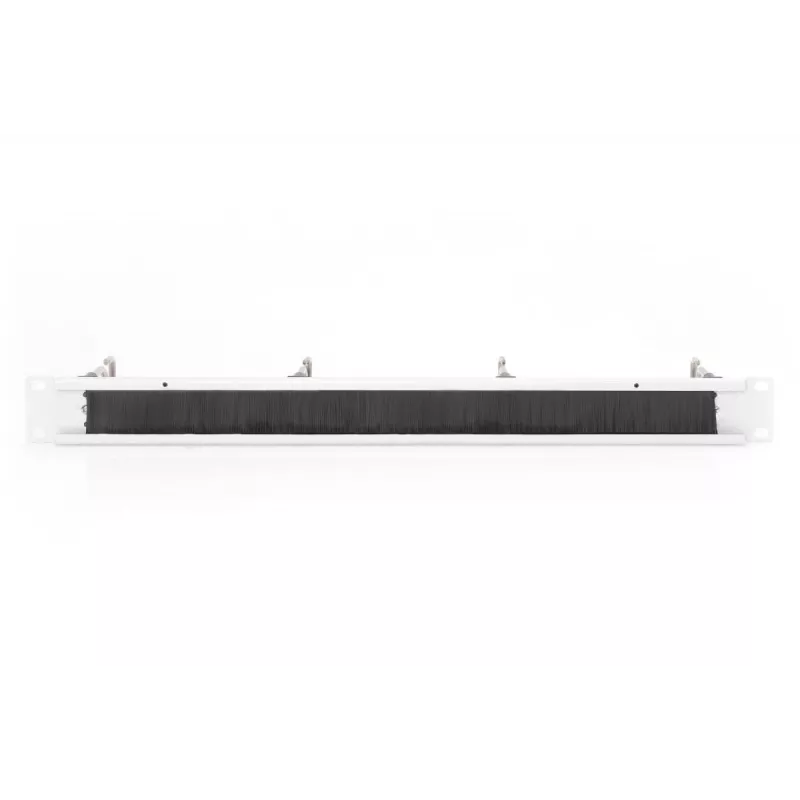

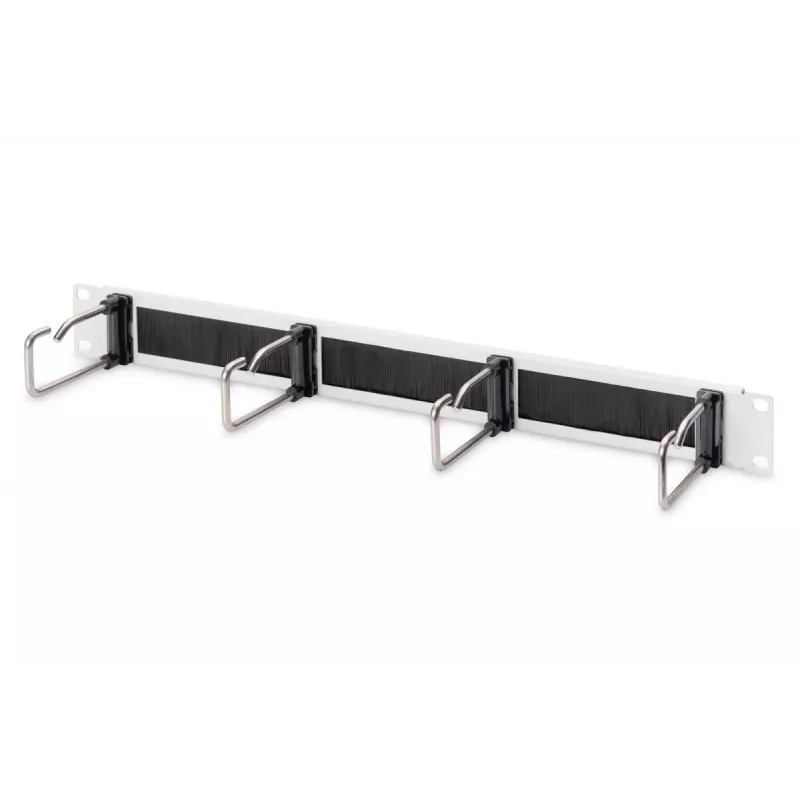

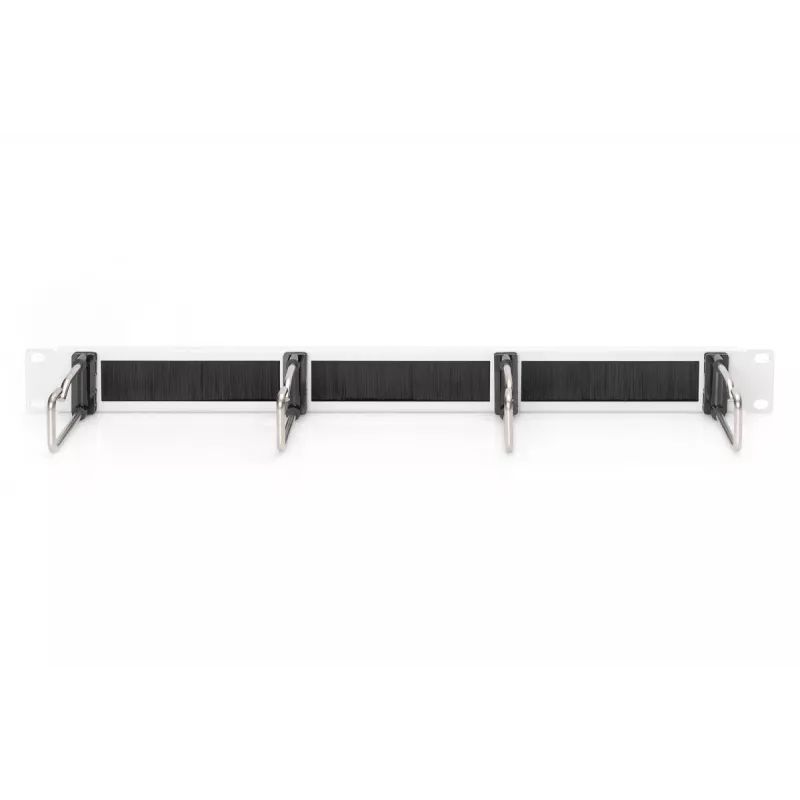

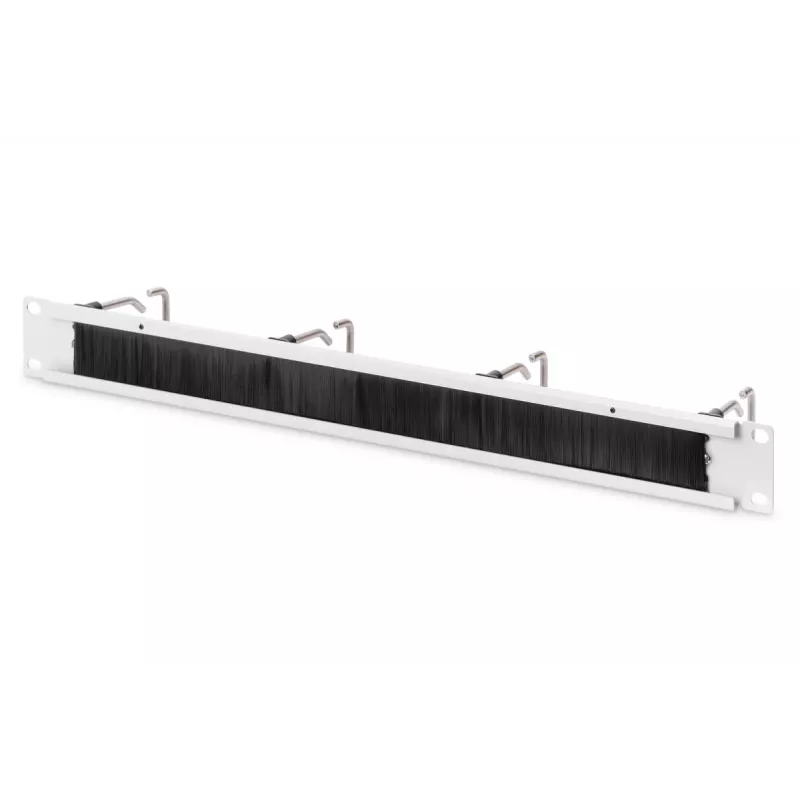

The DIGITUS Cable Management Panel DN-97668 is a 1U accessory for 19" (482.6 mm) cabinets that provides structured routing for larger cable quantities. It features a sturdy steel panel with four removable steel brackets and integrated brush strips between the brackets to guide cables into the cabinet while preserving a neat front appearance. The housing is powder-coated in light gray (RAL 7035) or jet black (RAL 9005) and has a depth of 75 mm.

Advantages

Steel construction and powder coating deliver durability and a professional look. Four robust steel brackets allow organized separation and routing of multiple cables, while the brush strips reduce dust ingress and protect cables where they pass through the panel. Brackets are removable to adapt the panel layout to different installation needs.

Suitable for

• 19" server cabinets and network racks
• Data centers and server rooms with high cable density
• Telecommunications and IT cabinets requiring tidy cable entry
• Installations where modular bracket arrangement is needed

Key specifications

• Model: DIGITUS DN-97668
• Form factor: 1U for 19" (482.6 mm) cabinets
• Material: steel panel with steel brackets
• Bracket count: 4 removable steel brackets
• Brush strips: present between each bracket
• Depth: 75 mm
• Colour: light gray (RAL 7035) or jet black (RAL 9005); powder-coated

How to use

Mount the panel in a standard 1U position in a 19" cabinet and secure with appropriate rack screws. Route cable bundles through the brush strips and around the steel brackets to separate and guide individual runs. If required, remove one or more steel brackets to create wider openings or to better fit specific cable assemblies, then reattach brackets in the desired configuration.

Recommendations

For best results, group cables by type or destination before routing through the panel to maintain airflow and simplify maintenance. Use compatible rack hardware and avoid overfilling brackets to prevent cable strain.
