Digitus Dual M.2 NVMe SSD dokovacia stanica USB-C Offline Clone funkcia

The Digitus Dual M.2 NVMe SSD Docking Station (DA-71545) lets you manage two M.2 NVMe SSDs via a USB-C™ (USB 3.2 Gen2) connection. Each M.2 slot supports drives up to 4 TB, for a combined maximum capacity of 8 TB. The unit supports standard M.2 NVMe sizes 2242, 2260, 2280 and 22110 and accepts M-Key and B+M-Key NVMe modules. A one-touch offline clone button duplicates an SSD without a PC, while LED indicators show the copy progress. The dock is plug-and-play and does not require driver installation.

Advantages

Supports two NVMe M.2 SSDs simultaneously with transfer speeds up to 10 Gbps over USB-C (USB 3.2 Gen2). Offline cloning is possible with a single button press and copying progress is visible via LEDs. Compatible with common M.2 form factors and keying (2242/2260/2280/22110, M-Key and B+M-Key). Compact, black design and simple plug-and-play operation make it suitable for expanding storage or performing backups without additional software.

Suitable for

• Cloning or duplicating M.2 NVMe SSDs without a PC
• Expanding external storage for notebooks, PCs and gaming consoles with USB-C
• Quick data transfer and backup between NVMe SSDs
• Using as temporary external storage for TVs, NAS or routers that support USB-C

Key specifications

• Model: DIGITUS DA-71545
• Interface: USB-C (USB 3.2 Gen2), up to 10 Gbps
• M.2 support: 2242 / 2260 / 2280 / 22110
• Supported keys: M-Key, B+M-Key (NVMe)
• Slots: 2 x M.2 NVMe SSD, up to 4 TB each (max. 8 TB total)

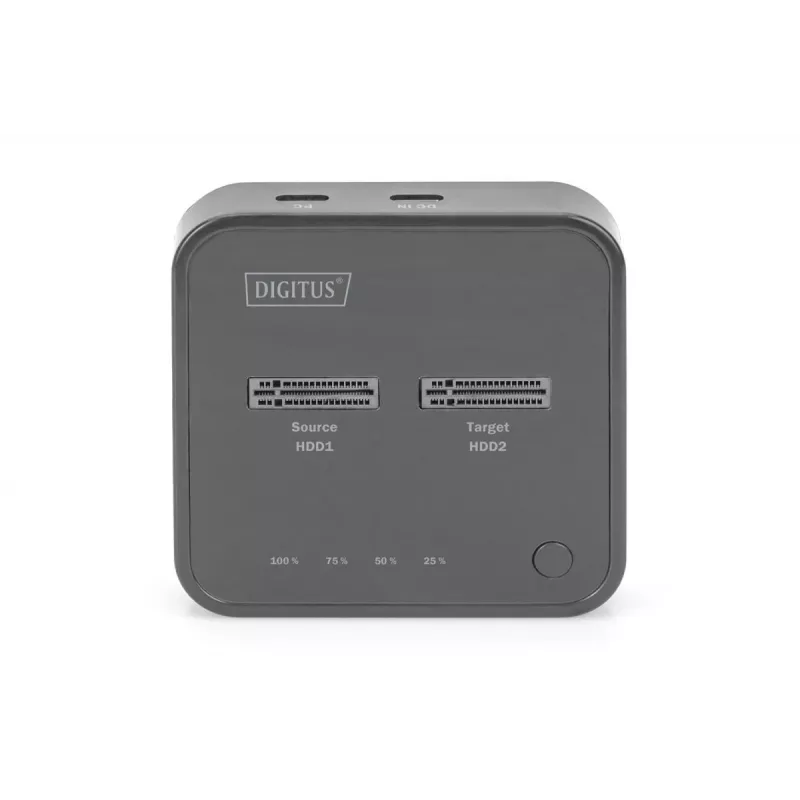

• Offline clone: one-touch button, LED copy progress indicators
• Plug & Play: no driver required
• Colour: Black; Weight: 0.146 kg

How to use

Insert up to two compatible M.2 NVMe SSDs into the appropriate slots, connect the docking station to a host device via the USB-C cable, and the drives will be accessible immediately without driver installation. To perform an offline clone, install the source and target SSDs, press the clone button and monitor the progress via the LED indicators until the process completes.

Recommendations

Ensure the source and target SSDs are correctly seated and oriented before starting the offline clone. Verify drive capacities and back up important data before cloning. Use a USB-C port that supports USB 3.2 Gen2 to achieve maximum transfer speeds.
