DIGITUS nástenná skriňa 254 mm (10 palcov) - 312x300 mm (ŠxH) sivá

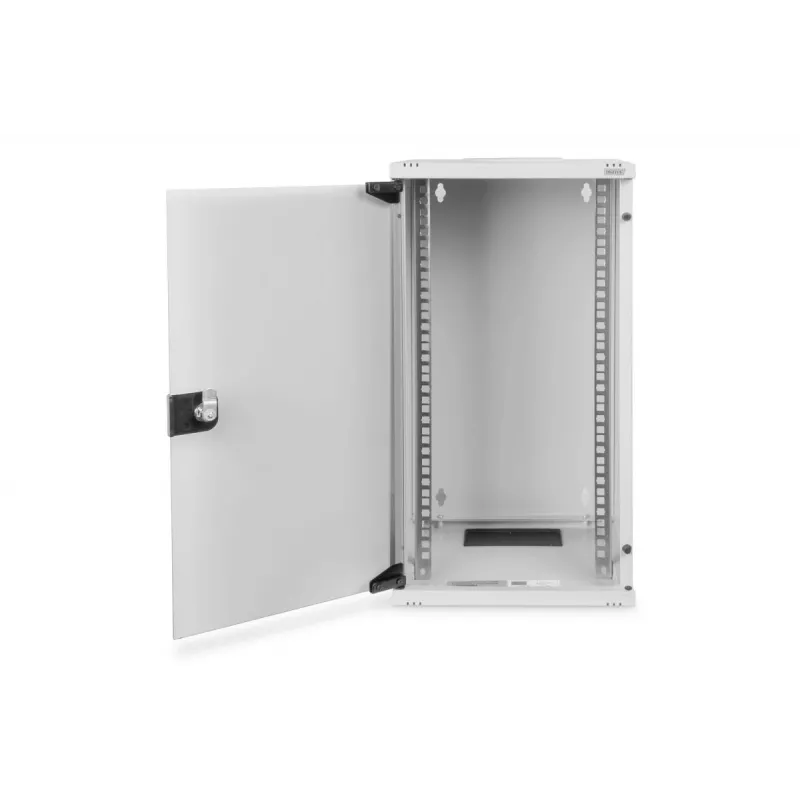

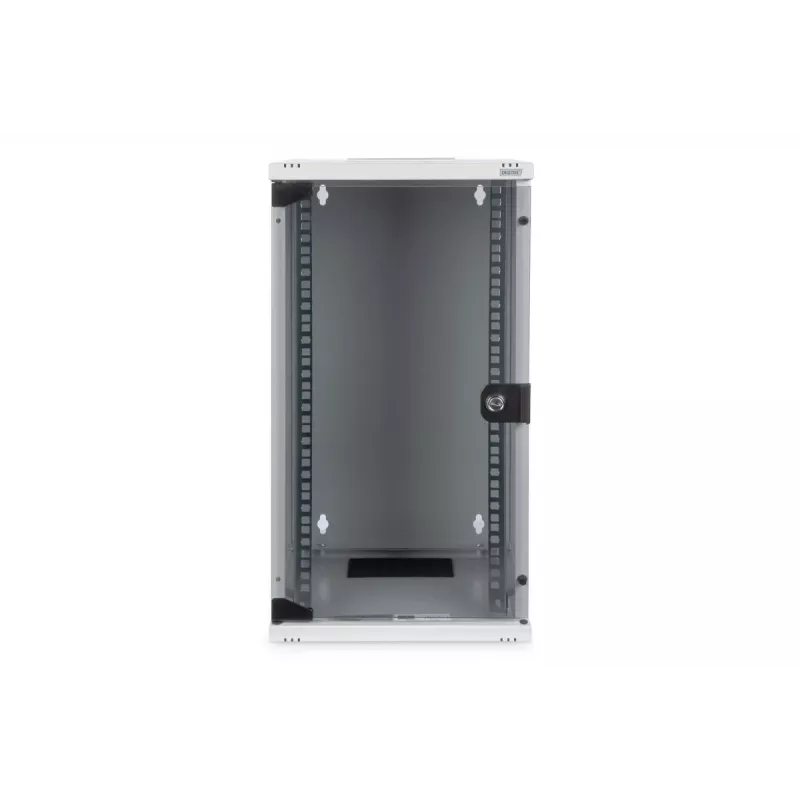

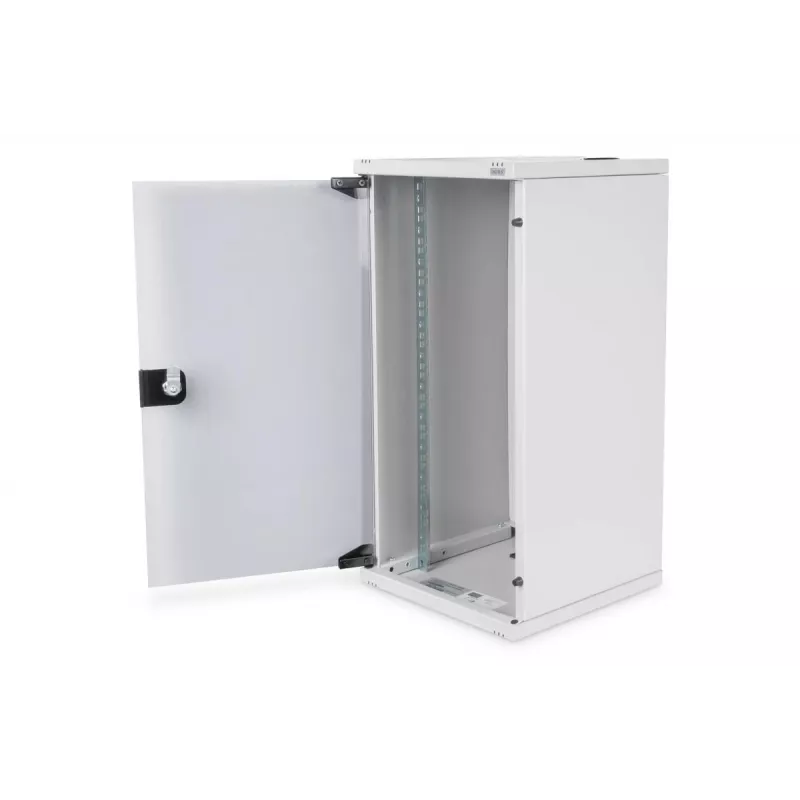

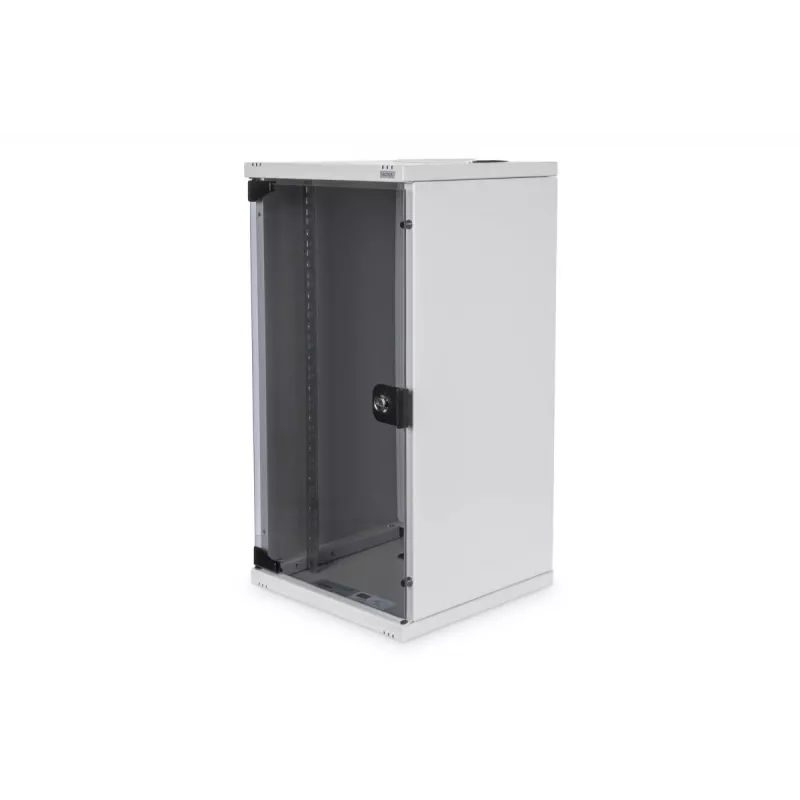

The DIGITUS Wall Mounting Cabinet 254 mm (10") DN-10-12U is a compact 12U enclosure designed for space-limited IT installations. Measuring 312 x 300 mm (W x D) with a height of 592 mm, the cabinet supports up to 30 kg of equipment, features a full glass door with switchable hinges, a key lock for basic access control, and cable entries with brushes in the top and bottom. Constructed from up to 1.5 mm sheet steel with an electrostatic powder coating in grey (RAL 7035), it provides adjustable 10" profile rails and collapsible design for easy installation and transport. The cabinet is rated IP20.

Advantages

The wall-mounted rack offers a very compact footprint suitable for tight spaces while delivering organized cable management thanks to roof and floor brush entries. Adjustable galvanized 10" profile rails with clear unit markings and a switchable full glass door ensure flexible mounting and visual access. Its collapsible construction and durable sheet-steel body with powder coating make assembly, transport and long-term use straightforward.

Suitable for

• Small office network equipment
• Sub-distribution points in buildings
• Home server or network components in confined spaces
• Telecommunications or network patching in corridor cupboards

Key specifications

• Model: DIGITUS DN-10-12U
• Rack capacity: 12U
• External dimensions (W x D x H): 312 x 300 x 592 mm
• Maximum mounting depth: 240 mm
• Maximum load capacity: 30 kg
• Protection rating: IP20
• Material: up to 1.5 mm sheet steel, electrostatic powder coated (grey RAL 7035)
• Door: full glass with switchable hinges and key lock
• Cable entry: brush strips in roof and floor

How to use

Mount the cabinet securely on a suitable wall using appropriate fixings for the wall material and expected load. Adjust the galvanized 10" profile rails to the required depth for your devices and secure them in place. Route cables through the brush entries at the top or bottom to preserve cable organisation and reduce dust entry. Install equipment up to the stated 30 kg limit, close and lock the glass door as required. For transportation or delivery to constrained locations, disassemble the collapsible parts and reassemble on site following the manufacturer's instructions.

Recommendations

Install this 10" wall cabinet in dry indoor environments in accordance with its IP20 rating. Do not exceed the 30 kg load rating, and use appropriate wall anchors and mounting hardware for the substrate. For ventilation-sensitive equipment, consider additional cooling solutions as the enclosure is compact.
