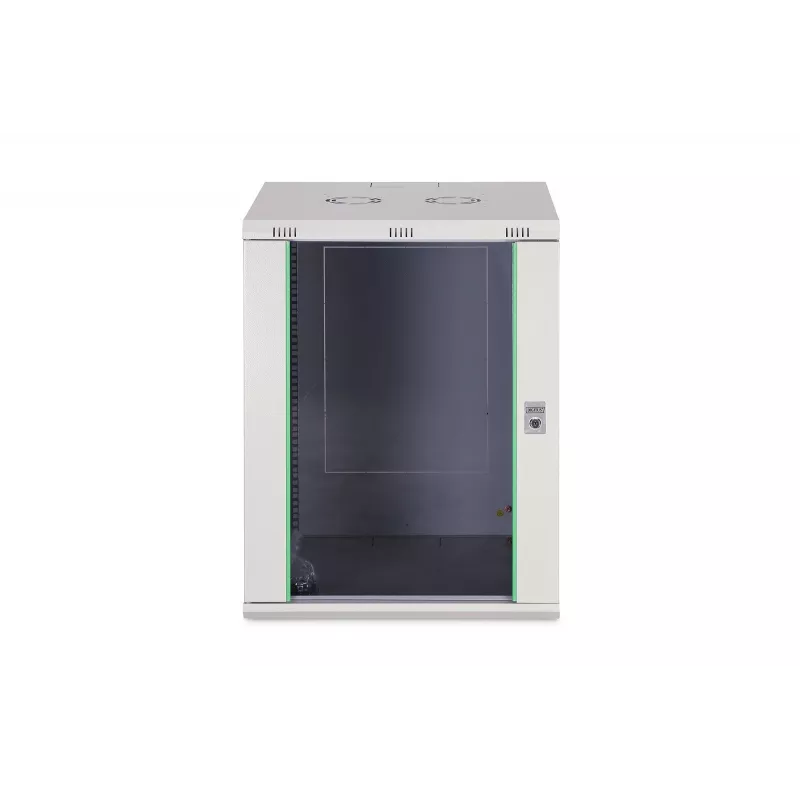

Nástenný rack 19 DN-37114

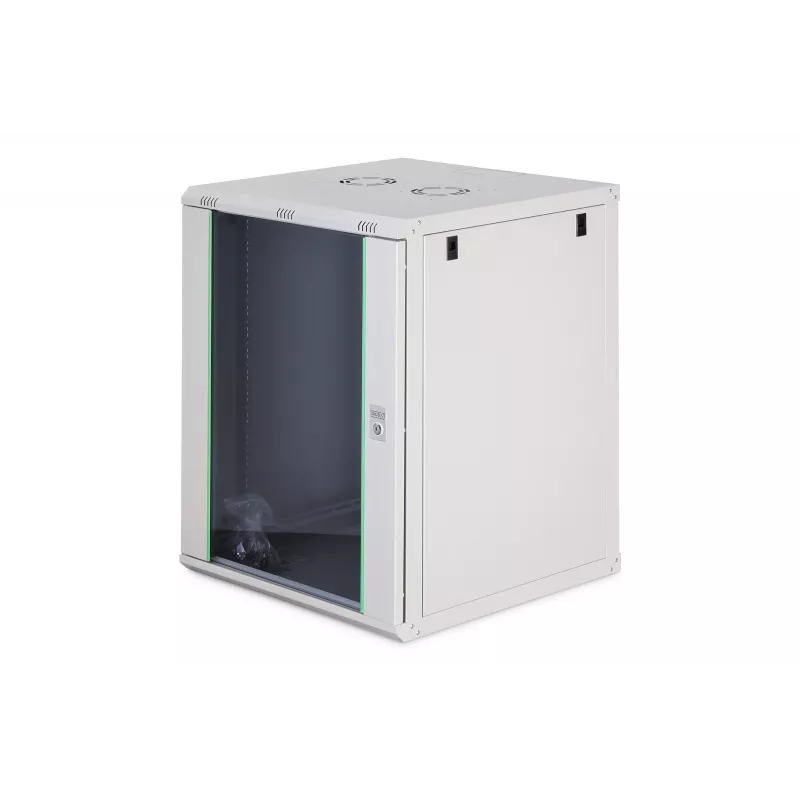

With a 60 kg load capacity and 16U of 19" rack space, this DIGITUS Dynamic-N wall-mount cabinet anchors your network hardware securely while keeping installation simple. The 600 x 600 mm footprint fits standard equipment, and the unassembled flat-pack design cuts shipping costs and storage space.

Overview

The Dynamic-N series is built for cost-effective network expansion. The cabinet is constructed from sturdy steel sheet up to 1.2 mm thick, finished in grey (RAL 7035) electrostatic powder coating. It includes two pairs of galvanized 483 mm (19") profile rails at the front and rear, marked with height units readable from both directions. Rails are depth-adjustable to accommodate different equipment depths.

What stands out

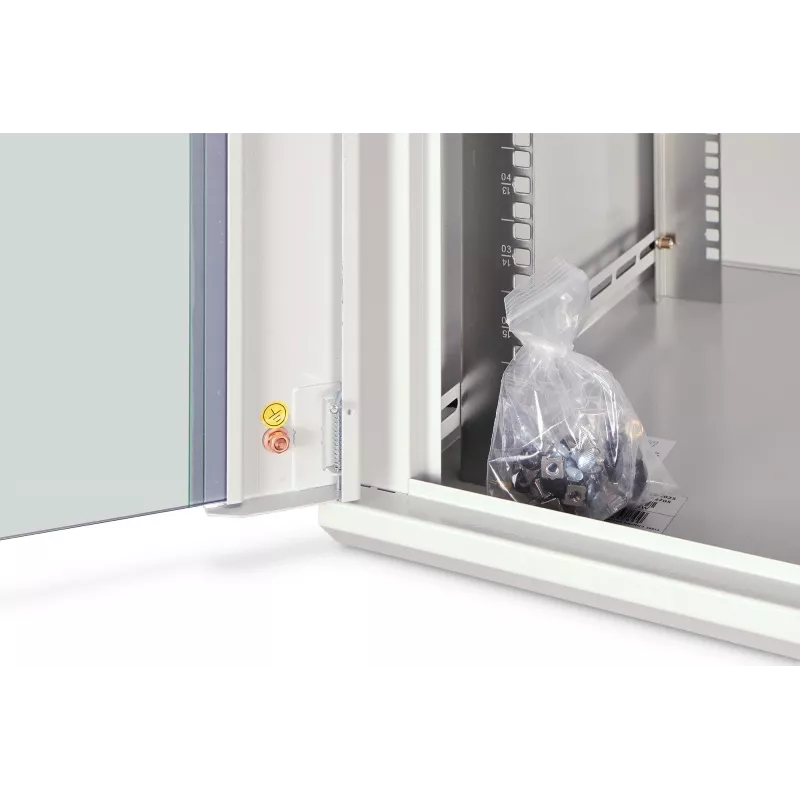

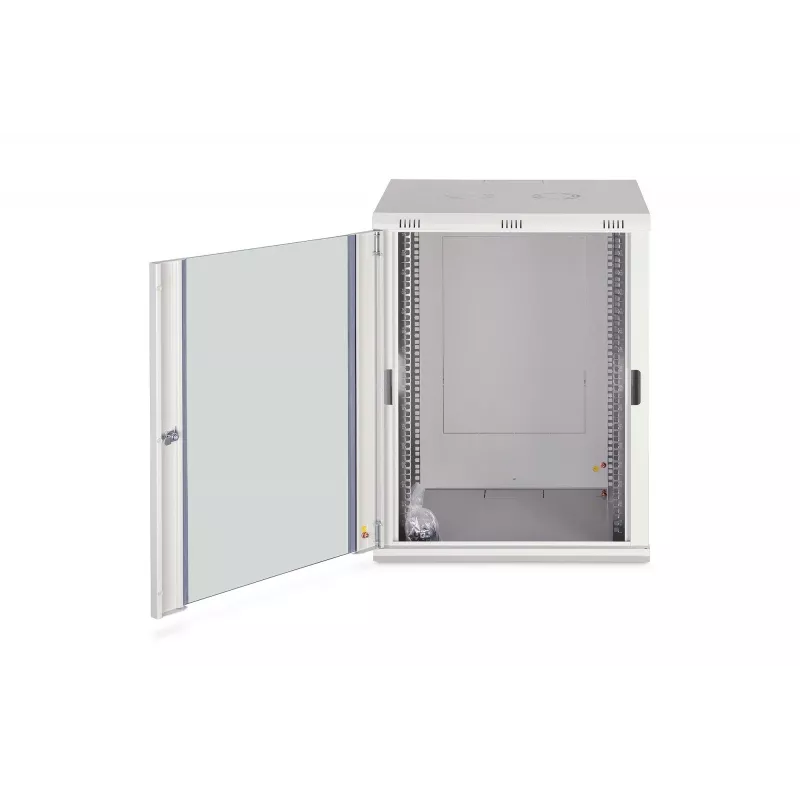

• Lockable front door with safety glass in a steel frame, opening angle 230°

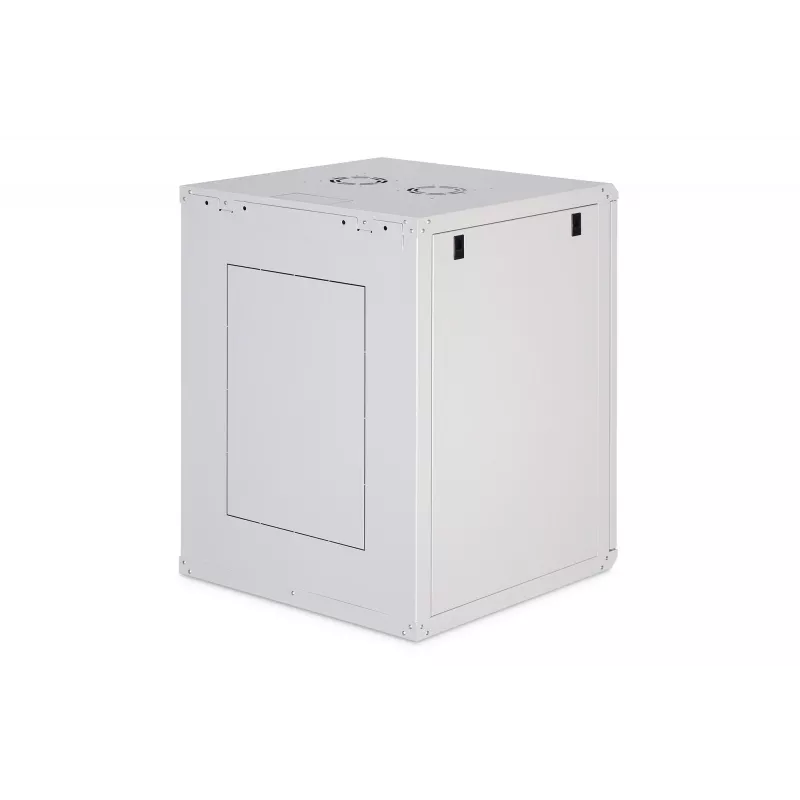

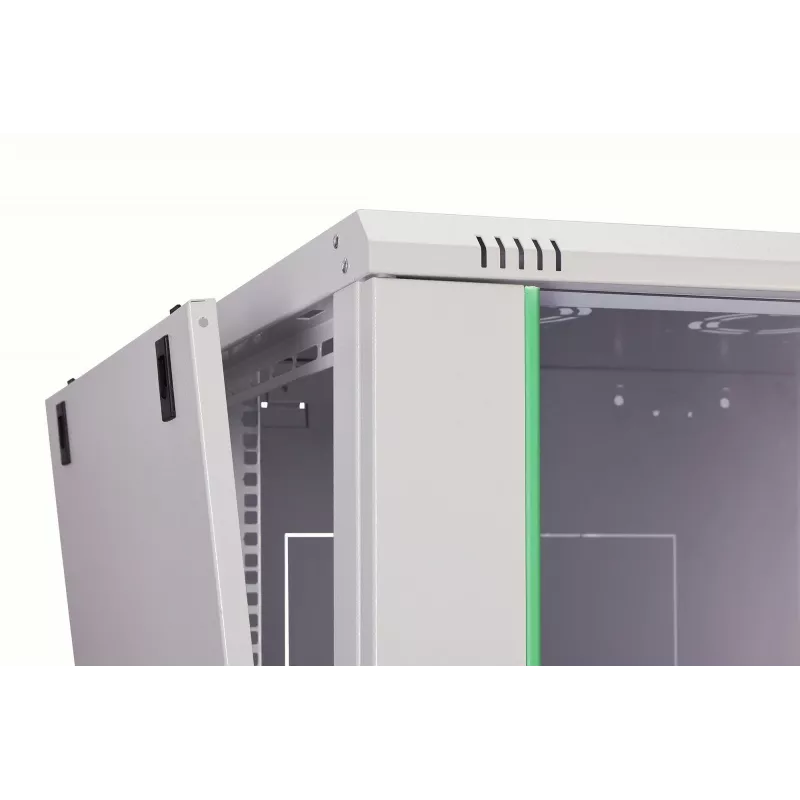

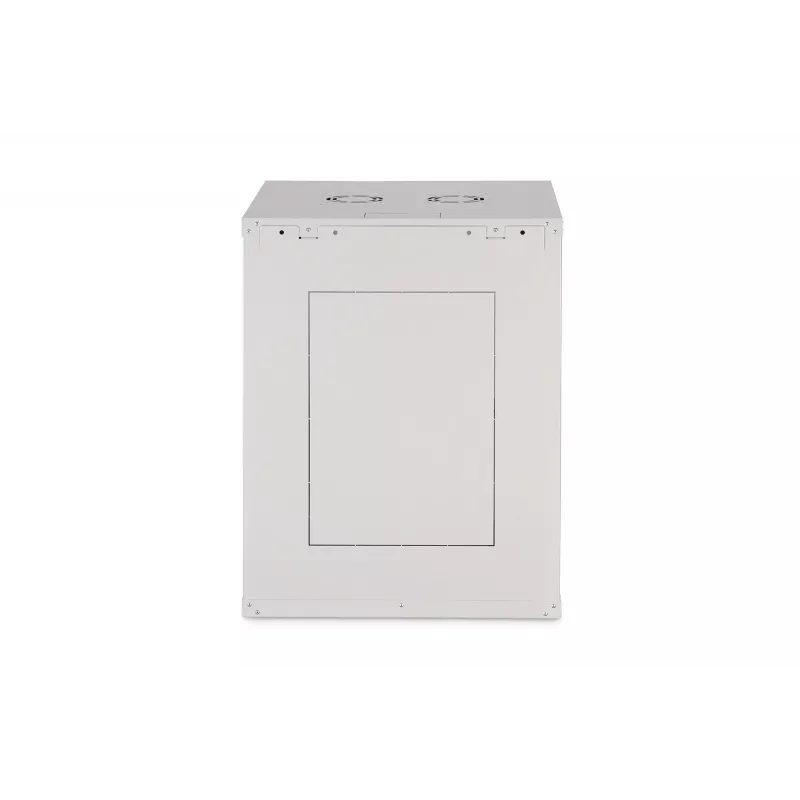

• Removable and lockable side panels for easy access during installation and maintenance
• Pre-cut cable entries in roof, base, and rear panel; roof also has a hole for a fan module
• Wall mounting in two steps: attach the included mounting plate to the wall, then hang the cabinet
• Delivered unassembled in space-saving flat packaging with assembly instructions
• IP20 protection rating, passive ventilation cut-outs, and prepared for fan unit

Technical details

• Rack standard: 19 inch
• Rack units: 16U
• External dimensions (W x D x H): 600 x 600 x 785 mm (height calculated for 16U)
• Material: steel sheet, 1.0 - 1.2 mm thick
• Colour: grey (RAL 7035)
• Load capacity: 60 kg
• Protection class: IP20
• Cable entry: top and bottom with brush strips
• Ventilation: passive cut-outs, prepared for fan unit

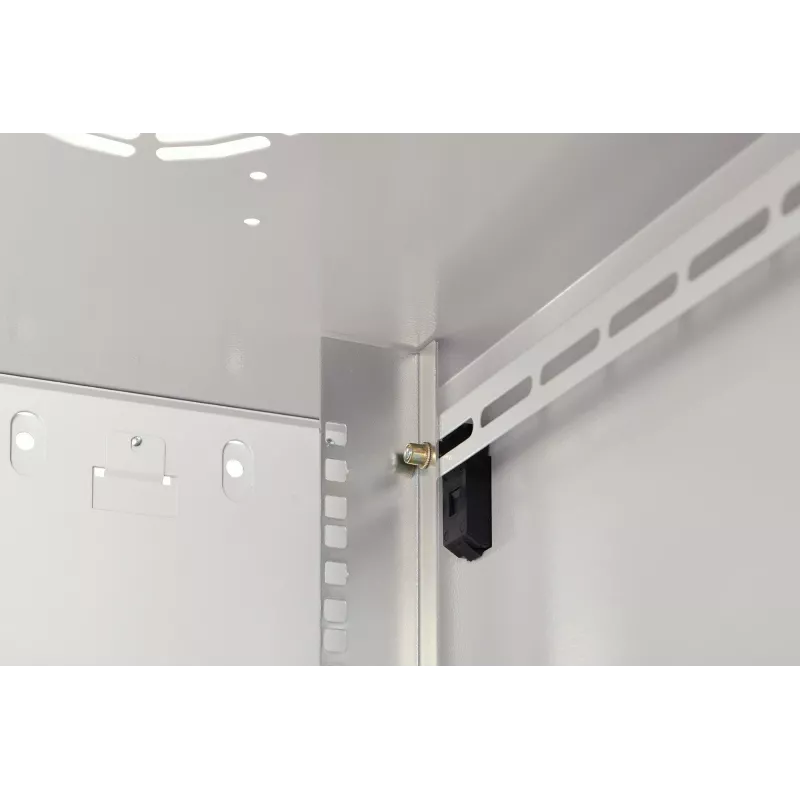

• Mounting rails: 2 pairs, depth adjustable, marked with height units

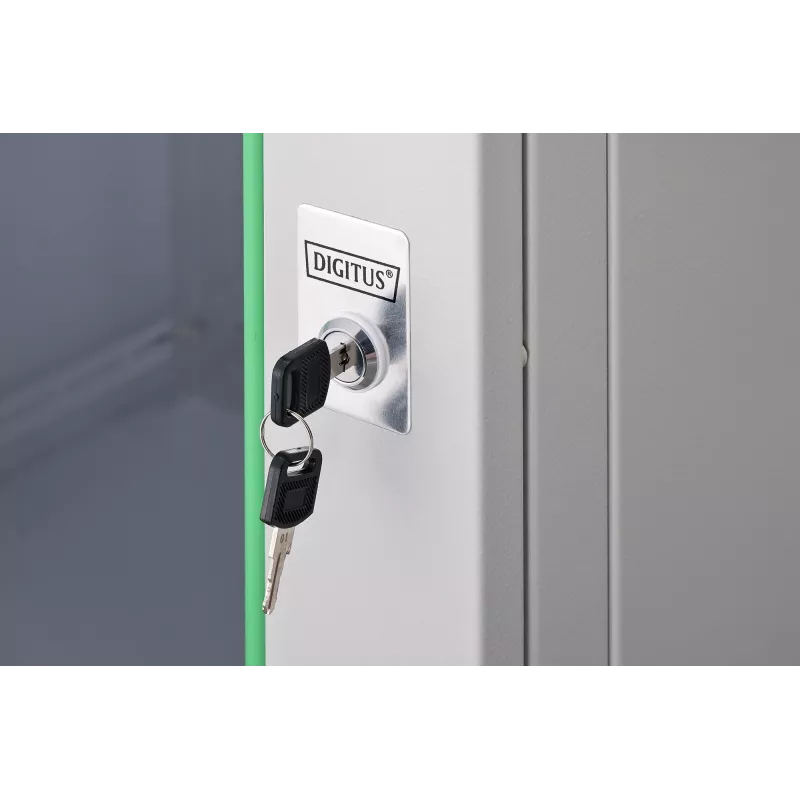

• Door: lockable, safety glass, steel frame, opening angle 230°, single-point lock
• Side panels: removable and lockable
• Assembly: required (unassembled delivery)
• Mounting kit: wall mounting plate included

Our verdict

A solid, no-frills wall-mount cabinet that delivers essential features—security, ventilation, and adjustability—at a competitive price. The unassembled design is a smart logistics choice for installers and resellers.
