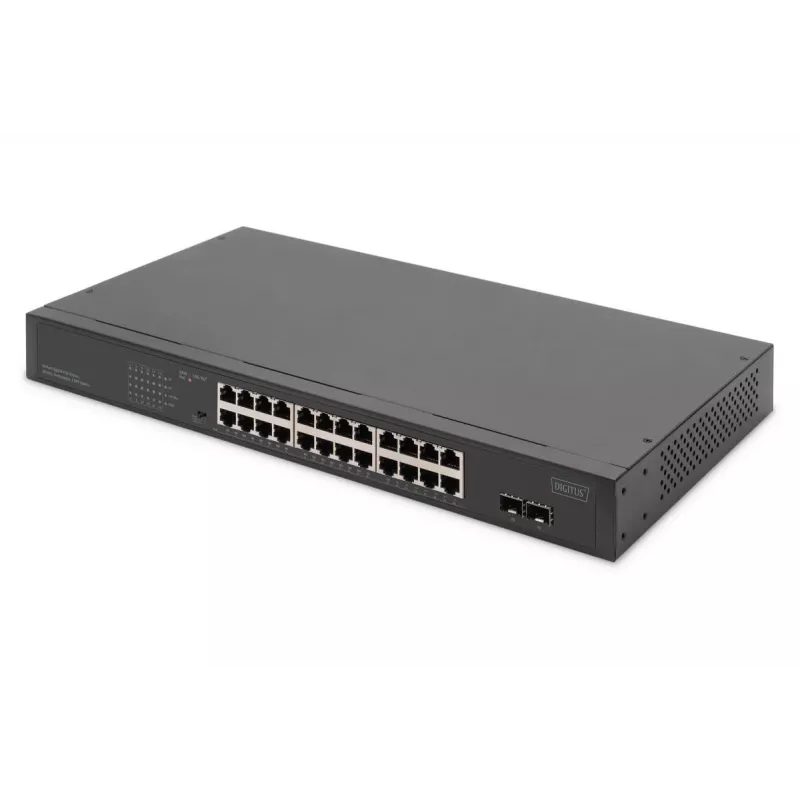

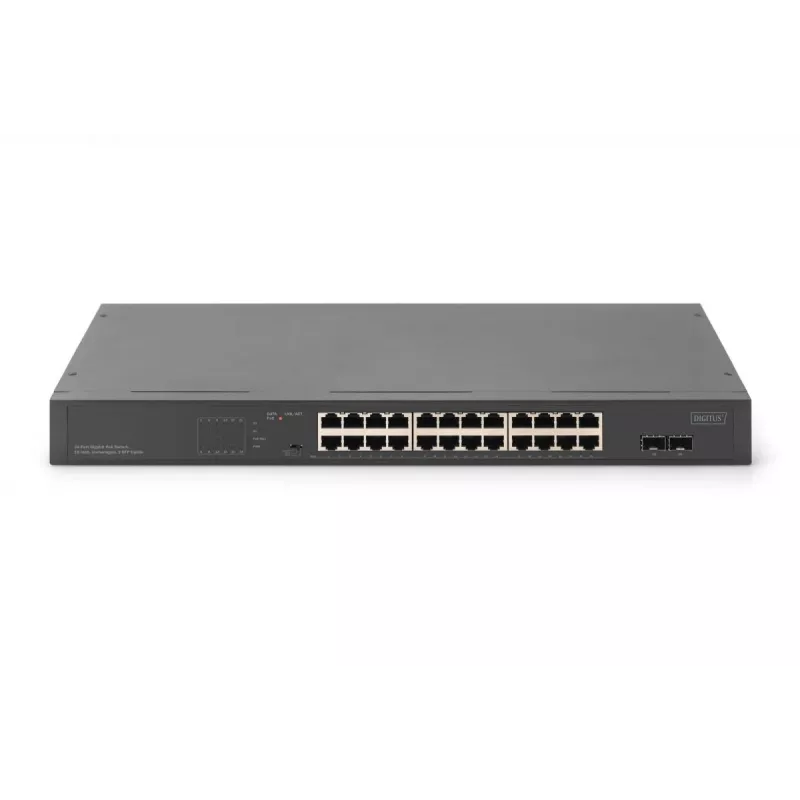

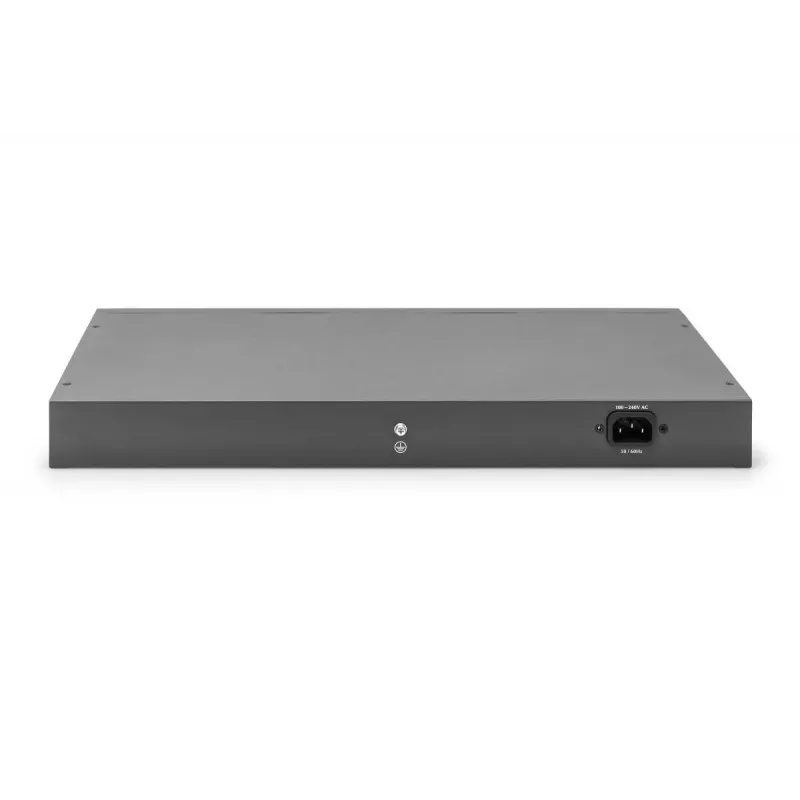

DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP

DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
DIGITUS Nespravovaný PoE switch - 24-portový Gigabit + 2-portový Gigabit SFP
364,20 €
Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W- Support IEEE802.3af/at Standard- Single port output power up to 30W- Automatic detection and identification of standard PoE power receiving devices, intelligent power... Čítať viac
Sklad 14 Kód 116844 Značka DIGITUS Model DN-95348-2 Záruka 2 roky

Doprava a vrátenie tovaru

Predpokladané doručenie utorok 3. novembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W

- Support IEEE802.3af/at Standard
- Single port output power up to 30W
- Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
- Support port power supply prioritization, guarantee the continuous power supply of key nodes
- Panel indicators monitor working status and help fault analysis
- Support VLAN and CCTV function
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

The DN-95348-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritising the port power supply, the module ensures the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximise flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimises data transmission efficiency. Overall, the DN-95348-2 PoE switch offers a powerful, intelligent and reliable solution for powering network components that meets today's requirements for modern network infrastructures.

Hlavné vlastnosti
  • Support IEEE802.3af/at Standard
  • Single port output power up to 30W
  • Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
  • Support port power supply prioritization, guarantee the continuous power supply of key nodes
  • Panel indicators monitor working status and help fault analysis
  • Support VLAN and CCTV function
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  • Mainboard, Power supply, PoE (three in one)
  • PoE Standard: IEEE802.3af/at
  • PoE Port: Port 1~24
  • PSE Power on RJ-45: Mode A 1/2(+),3/6(-)
  • PoE Port Output, Voltage: 55V DC, 30W max
  • PoE Power Budget: 370W
  • Power supply: 400W
  • Input Power Supply:AC 100-240V, 50/60Hz
  • Key supply: CCTV&VLAN
  • Forwarding Mode: Storage-and-Forward
  • Switching Capacity: 52 Gbps
  • MAC address table: 8K, Auto--learning, Auto-aging
  • Jumbo frames: 9216Byte
  • Packet Buffer: 4.1Mbit
  • Forwarding Rate: 38,69 Mpps
  • Operation Temperature: 0℃~40℃
  • Storage Temperature: -40℃~70℃
  • Operation Humidity: 10%~90% RH
  • Storage Humidity: 5%~90% RH
  • Dimensions(L*W*H): 440*207*44mm
  • Fan Qty:2
Parametre
Celkový výkon Power over Ethernet (PoE)
370 W
Farba produktu
Grey
Formát
1U
Hĺbka
207 mm
Hĺbka balenia
500 mm
Hmotnosť balenia
3.57 kg
Jumbo rámce
9216
Káble v balení
AC
Krajina pôvodu
China
LED indikátory
Yes
Materiál krytu
Metal
Montáž do racku
Yes
Napájací konektor
AC-in jack
Napätie Power over Ethernet (PoE)
55 V
Plný duplex
Yes
Počet portov Gigabit Ethernet (medené)
24
Počet slotov pre moduly SFP
2
Počet uplink portov
2
Počet ventilátorov
2 fan(s)
Počet základných prepínacích portov RJ-45 Ethernet
24
Podpora 10G
No
Podpora automatického starnutia MAC adries
Yes
Podpora automatického učenia MAC adries
Yes
Podpora jumbo rámcov
Yes
Podpora riadenia toku
Yes
Podpora VLAN
Yes
Polovičný duplex
Yes
Power over Ethernet (PoE)
Yes
Prepínacia kapacita
52 Gbit/s
Prevádzková teplota (T-T)
0 - 40 °C
Relatívna vlhkosť pri prevádzke (H-H)
10 - 90%
Relatívna vlhkosť pri skladovaní (H-H)
5 - 90%
Rýchlosť preposielania
38.69 Mpps
Rýchlosti Ethernet LAN
10,100,1000 Mbit/s
Sieťové štandardy
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Šírka
440 mm
Šírka balenia
320 mm
Spotreba energie (max.)
400 W
Stohovateľný
No
Store-and-forward
Yes
Stručný návod na obsluhu
Yes
Tabuľka MAC adries
8000 entries
Teplota skladovania (T-T)
-40 - 70 °C
Typ prepínača
Unmanaged
Typ rozhrania Ethernet
Gigabit Ethernet
Typ základných prepínacích portov RJ-45 Ethernet
Gigabit Ethernet (10/100/1000)
Vstupná frekvencia AC
50/60 Hz
Vstupné napätie AC
100 - 240 V
Výkon Power over Ethernet (PoE) na port
30 W
Vyrovnávacia pamäť paketov
4.1 MB
Výška
44 mm
Výška balenia
75 mm
Zdroj napájania
AC
Zdroj súčasťou balenia
Yes
