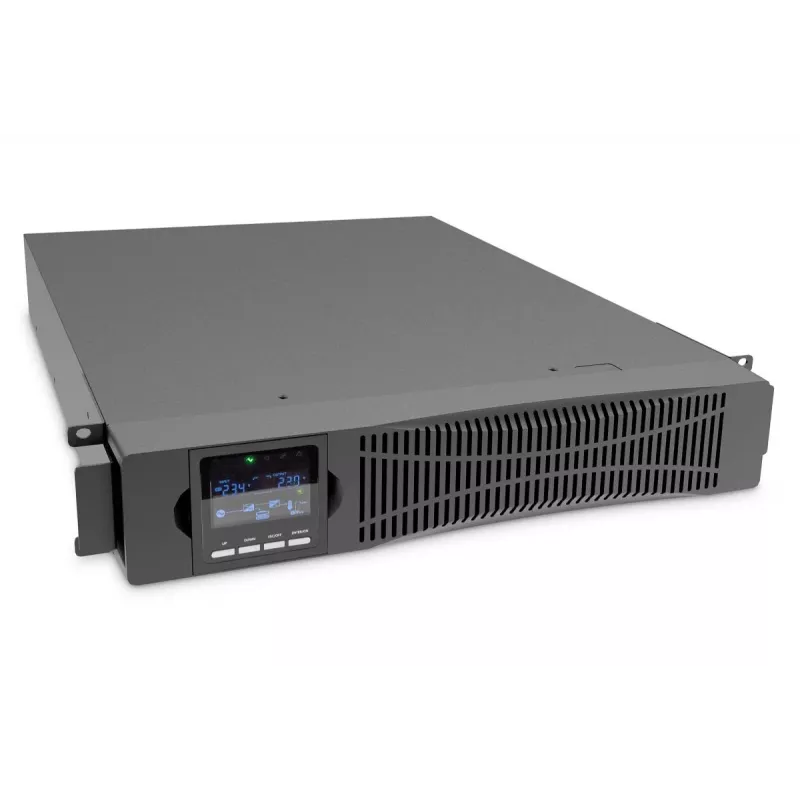

DIGITUS OnLine UPS modul 2000VA / 2000W

DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
496,55 €
PDF
PDF
Sklad 2 Kód 300091 Model DN-170095 Záruka 2 roky

Doprava a vrátenie tovaru

Predpokladané doručenie streda 2. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

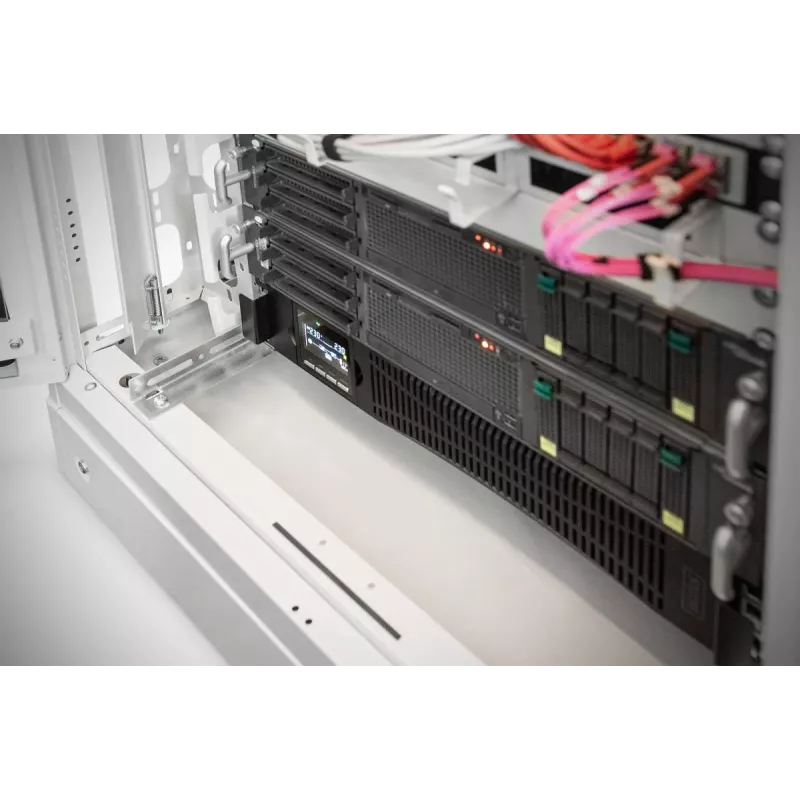

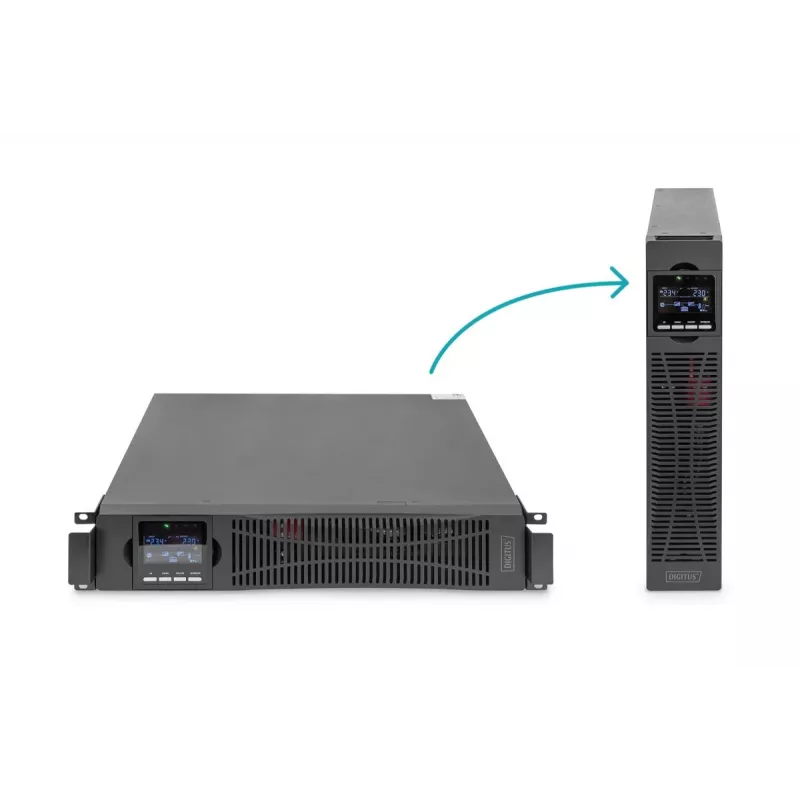

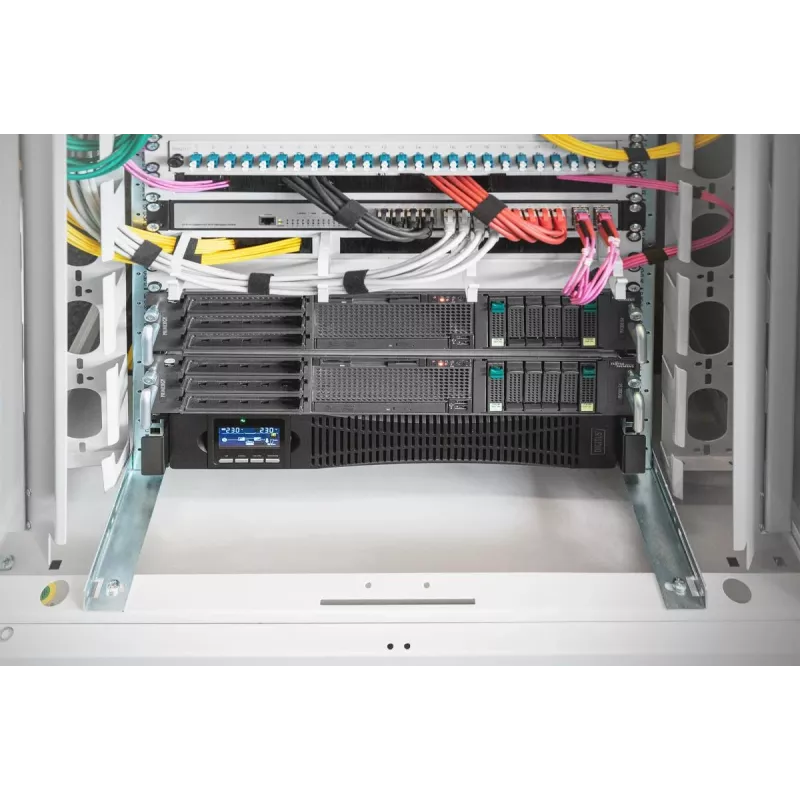

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.

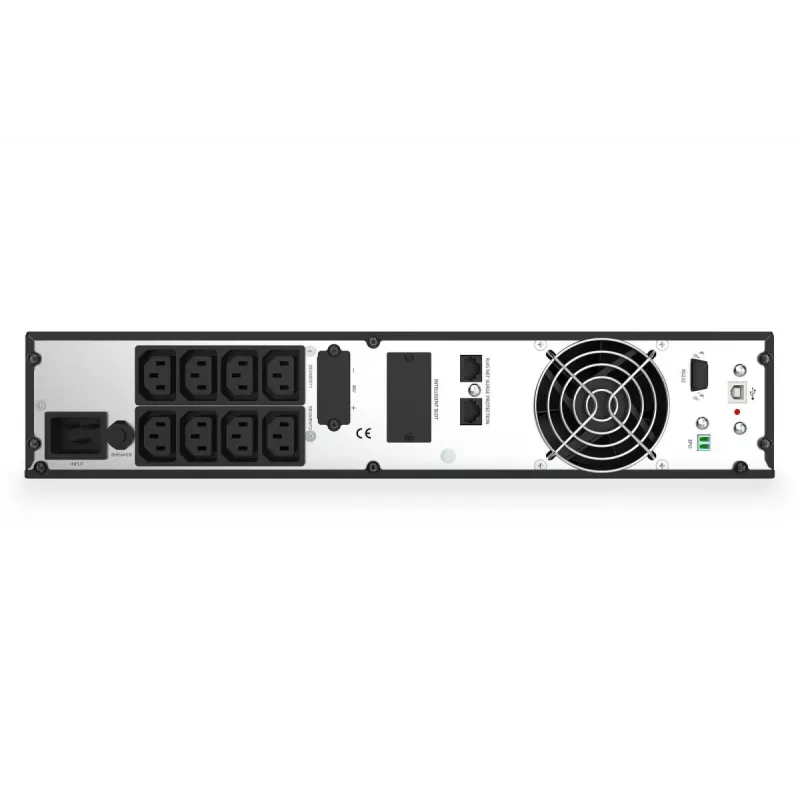

- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.

Hlavné vlastnosti
  • Online double conversion system (VFI-SS-111)
  • Input: IEC60320 C20 socket, 208/220/230/240 Vac
  • Output: 8 x IEC60320 C13, max. 10A per socket outlet
  • Nominal system power: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Internal battery pack can be replaced during operation.
  • Battery: Valve-protected, non-spillable lead-acid battery
  • Battery quantity: 4 x 12V x 9.0 Ah
  • Charging: 4 hours to 90% capacity after full discharge
  • Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency Power-off (EPO) contact for switching off the UPS in an emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19.5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23.7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
  • IP protection class: IP21
  • Heat dissipation: 614 BTU/h
  • Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).

Parametre

Parametre
Colný kód UK Trade Tariff
85044085
Doba nabíjania akumulátora (90 %)
4 h
Farba produktu
Čierna
Formát
Rackmount
Hĺbka
460 mm
Hĺbka balenia
595 mm
Hmotnosť
19.5 kg
Hmotnosť balenia
22.9 kg
Káble v balení
RS-232, kábel USB
Kapacita akumulátora
9 Ah
Kapacita výstupného výkonu
1,5 kVA
Konektor núdzového vypnutia napájania (EPO)
Áno
Krajina pôvodu
China
Maximálny prúd
10 A
Napätie batérie
12 V
Objem balenia
66705.5 cm³
Odpojiteľný napájací kábel
Áno
Počet podporovaných batérií
4
Počet sériových portov
1
Počet výstupov AC
8 zásuviek
Porty Ethernet LAN (RJ-45)
2
Prevádzková nadmorská výška
0 - 1500 m
Prevádzková teplota (T-T)
0 - 40 °C
Prevádzkové vstupné napätie (max.)
240 V
Prevádzkové vstupné napätie (min.)
208 V
Príručka
Áno
Relatívna vlhkosť pri prevádzke (H-H)
20 - 90%
Relatívna vlhkosť pri skladovaní (H-H)
20 - 90%
Sada na montáž do racku
Áno
Sériové rozhranie
RS-232
Sieťová zástrčka
konektor C20
Šírka
440 mm
Šírka balenia
555 mm
Teplota skladovania (T-T)
-25 - 55 °C
Topológia UPS
Dvojitá konverzia (online)
Typ chladenia
Aktívne
Typ displeja
LCD
Typ konektora USB
USB Type-B
Typ zdroja napájania
AC
Typy výstupných zásuviek AC
konektor C13
Účinník
1
Účinnosť
93%
Účinnosť (režim ECO)
98%
USB port
Áno
Veľkosť (palce)
48.3 cm (19")
Vstavaný ventilátor
Áno
Výška
86.5 mm
Výška balenia
200 mm
Výstupný výkon
2000 W
