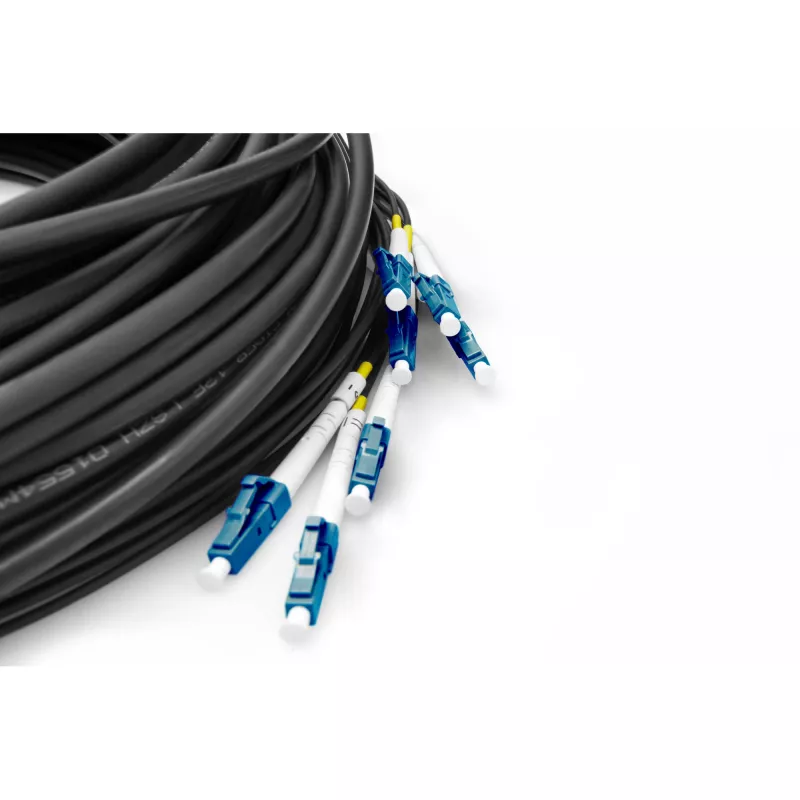

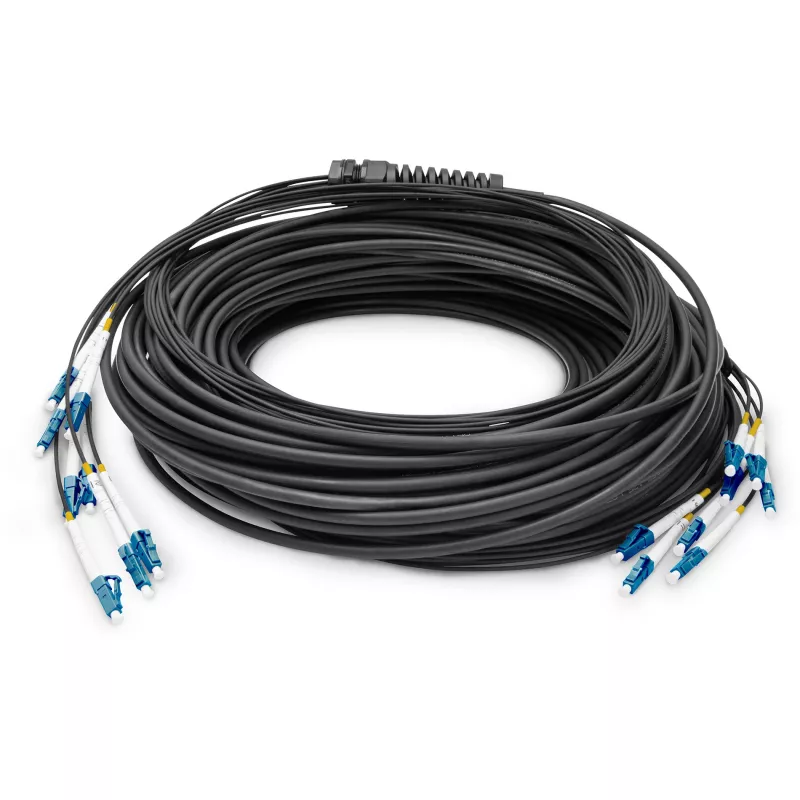

Digitus predkonfekcionovaný univerzálny optický breakout kábel, Singlemode OS2, 8 vlákien, LC/UPC, 75 m

Pre-assembled fiberglass breakout cable with 8 single-mode OS2 fibers and factory-mounted LC/UPC connectors. The Digitus universal breakout cable (U-DQ(ZN) BH) with 9 µm core diameter and 75 m length provides a ready-to-use, mechanically robust fiber solution for indoor and outdoor network routes. Supplied with a measurement report, it reduces commissioning time and eliminates additional splicing work.

Advantages

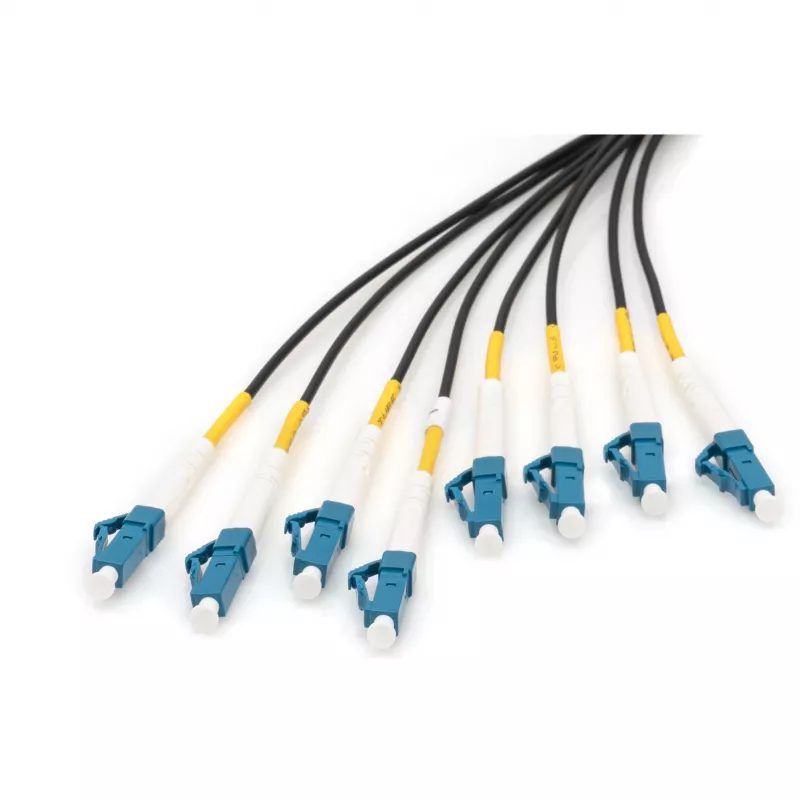

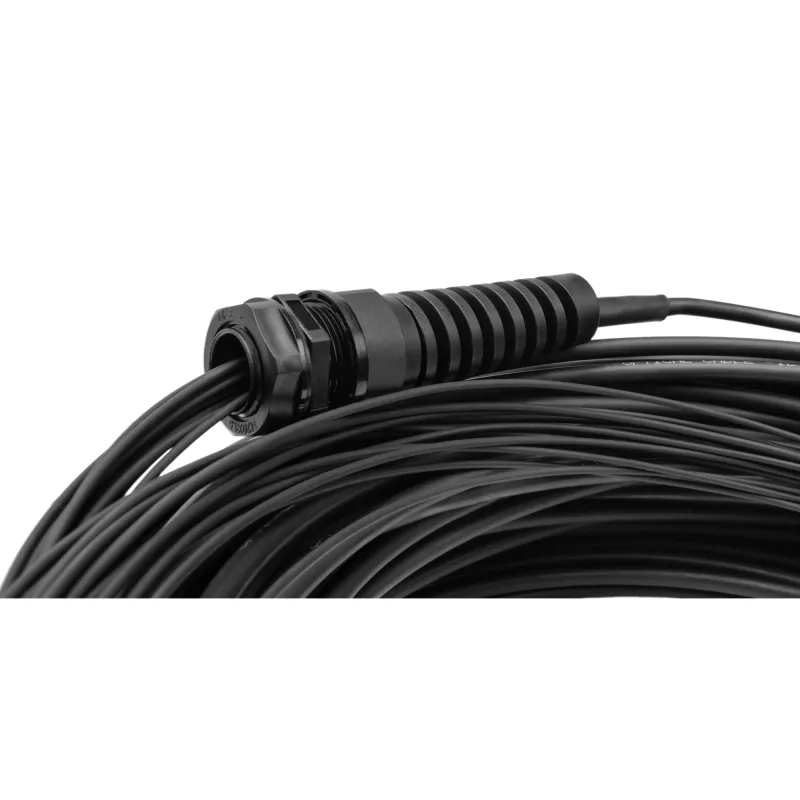

The cable is delivered pre-assembled with high-quality, factory-mounted LC/UPC plugs and offers individual mechanical protection for each fiber within a robust outer construction. Standard lengths are available from stock, it supports plug & play installation without further splicing, and can be used in both indoor and outdoor applications. Two-sided insertion tooling simplifies secure connector installation and the included measurement report documents performance.

Suitable for

• Connection of network cabinets and patch panels
• High-bandwidth backbone links in buildings and campus networks
• Environments requiring increased mechanical protection of fibers
• Installations where pre-terminated, ready-to-use fiber cables reduce installation time

Key specifications

• Brand: DIGITUS
• Model / MPN: DK-2A338U075BK-BBB
• EAN: 4016032485209
• Fiber count: 8
• Mode: Single mode OS2

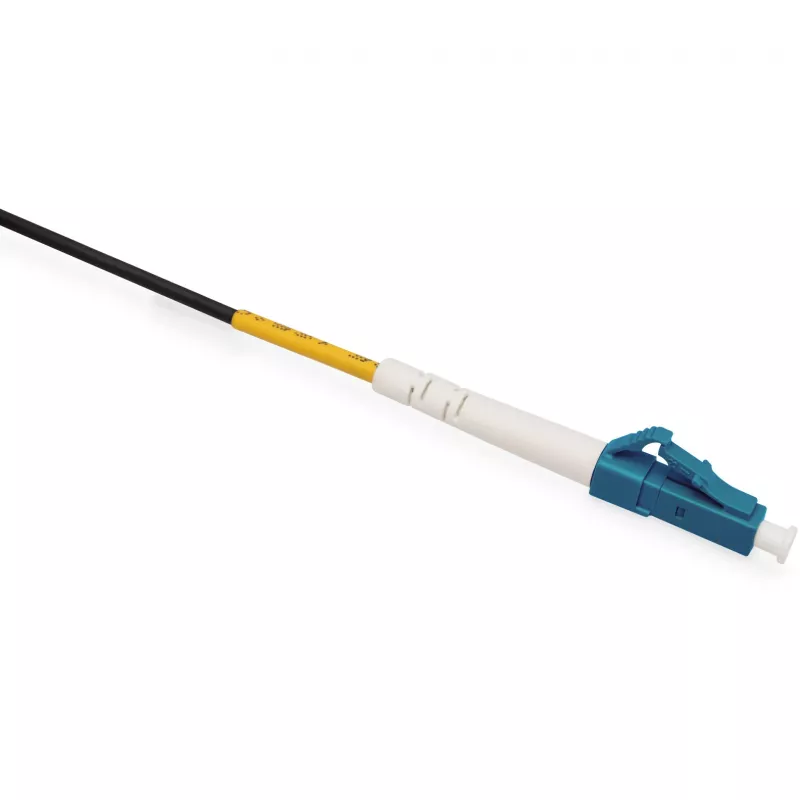

• Connectors: LC/UPC (pre-assembled)
• Cable type: U-DQ(ZN) BH
• Core diameter: 9 µm
• Length: 75 m

How to use

Install the pre-assembled Digitus breakout cable by routing it to the desired network cabinet or patch panel and inserting the LC/UPC connectors into the corresponding ports. No additional splicing is required; only secure mechanical fixation and strain relief at entry and termination points are recommended. Use the supplied two-sided insertion tool if needed to ensure proper seating of connectors.

Recommendations

For reliable long-term operation, avoid sharp bends and excessive tensile load during installation. Verify connector cleanliness before mating and retain the supplied measurement report as documentation for acceptance testing.
