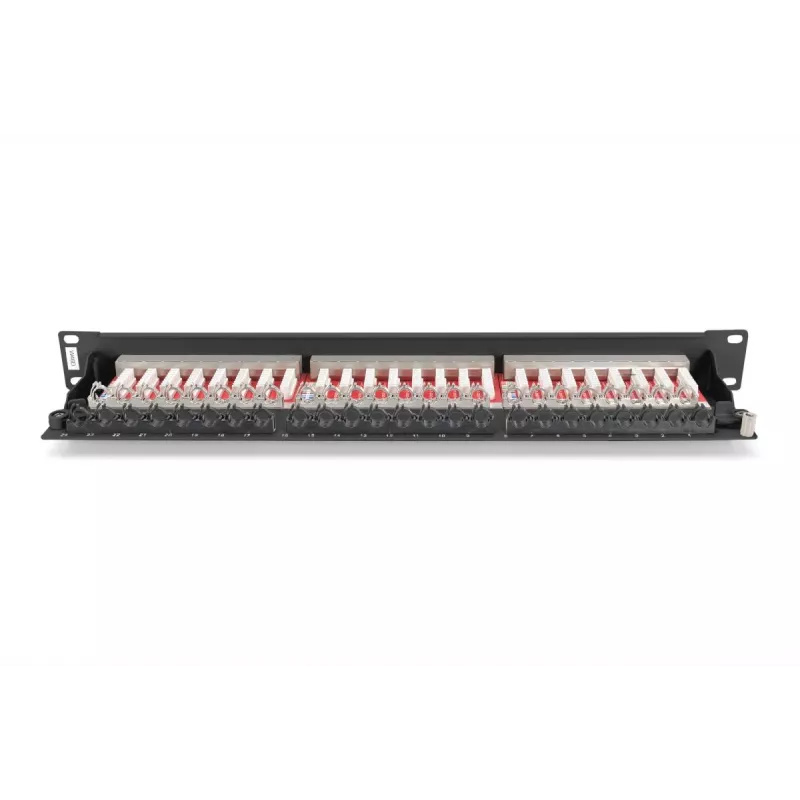

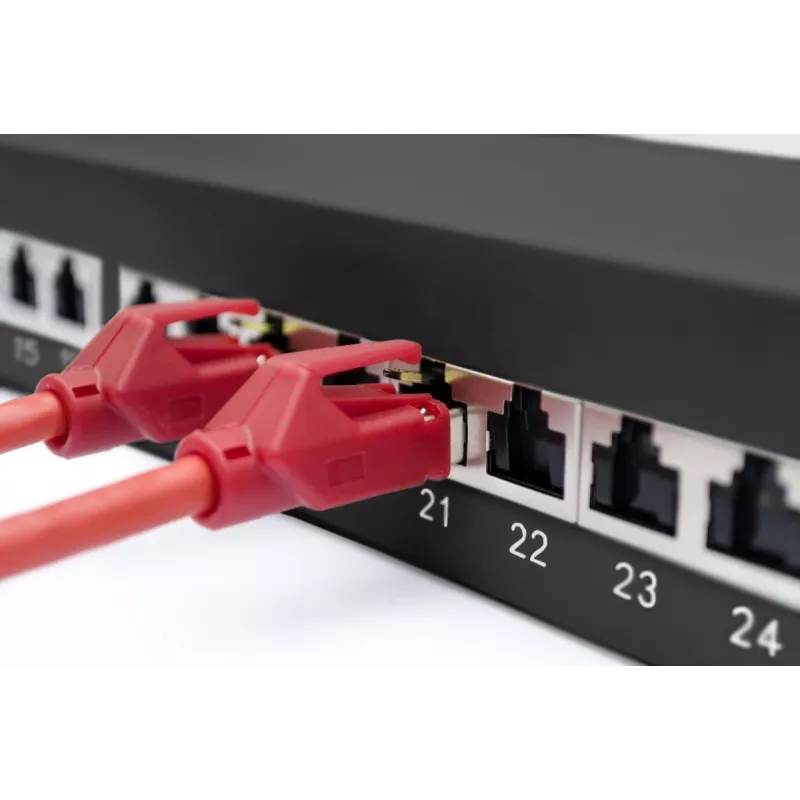

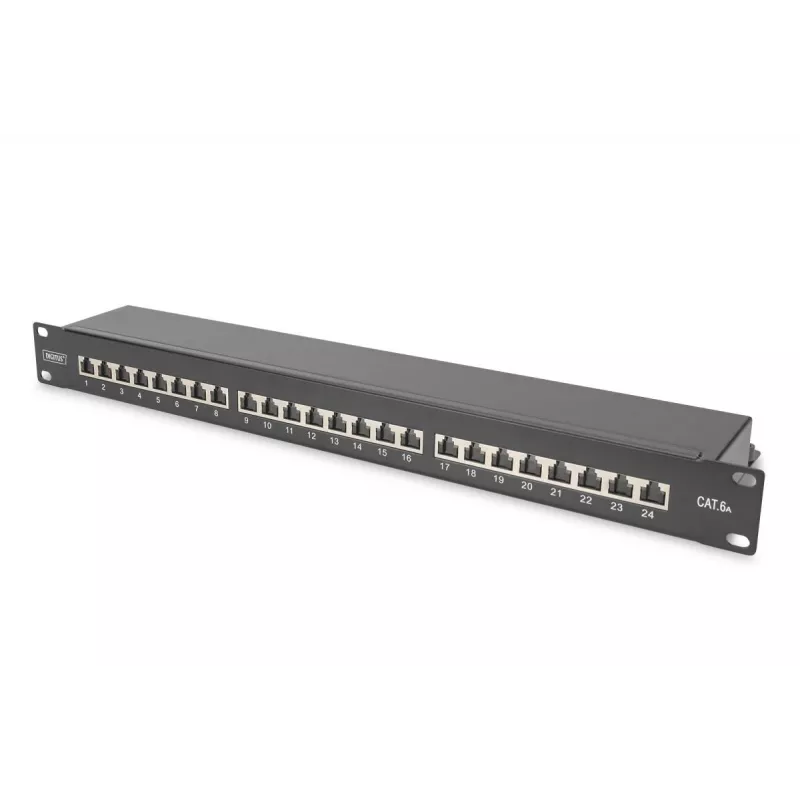

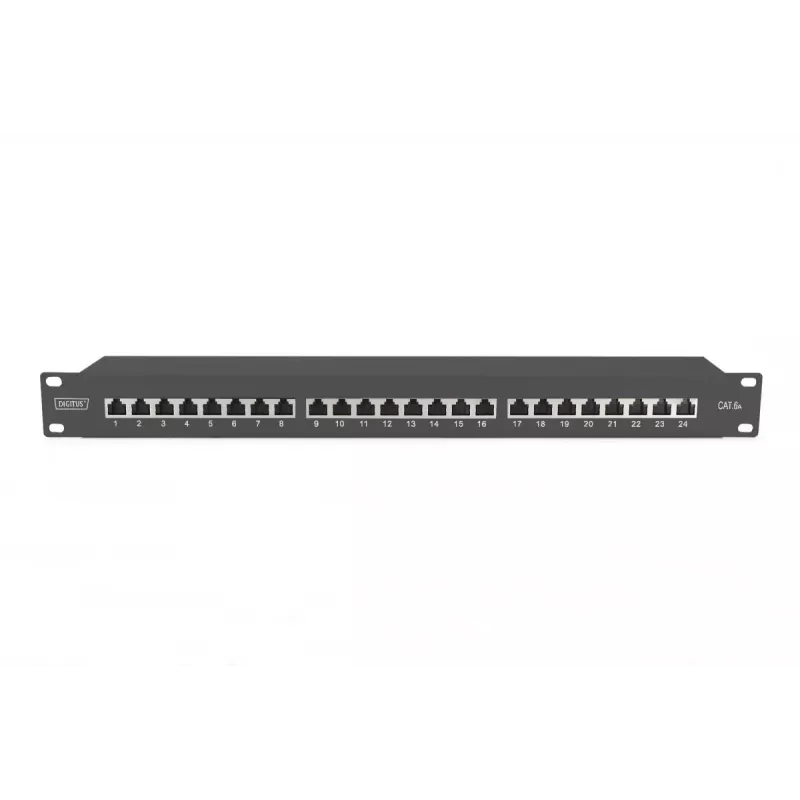

DIGITUS Professional CAT6A, trieda EA Patch Panel, tienený

The DIGITUS® DN-91624S-EA CAT 6A 24-port patch panel provides high-end quality and future-oriented standards for structured networks. Constructed from 1.5 mm cold-rolled steel with full metal shielding, it is designed for 19" rack mounting and supports PoE+ (802.3at) and PoE (802.3af) applications. The panel includes dust protection shutters, IDC-strip cable termination and a central grounding connector to ensure reliable shield contact and overall electromagnetic protection.

Advantages

The metal housing and complete shielding deliver effective EMI protection and improved signal integrity. IDC-strip termination and metal-coated cable fixation simplify installation and ensure solid grounding of the cable shield. A central grounding connector and dielectric strength up to 1500 VDC between contact and ground increase safety and durability. Dust protection shutters help maintain connector cleanliness in rack environments.

Key specifications

• Model: DIGITUS® DN-91624S-EA
• Ports: 24
• Category: CAT 6A
• Housing material: 1.5 mm cold-rolled steel
• Shielding: complete metal shielding with shield contact

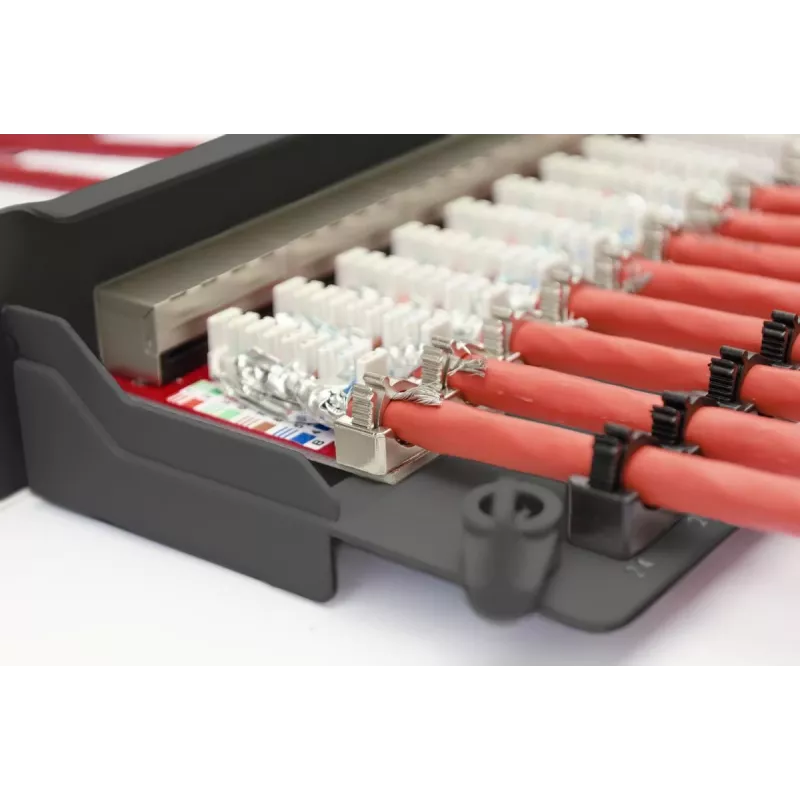

• Cable termination: IDC-strips
• Grounding: central grounding connector; metal-coated cable fixation for shield grounding
• Dielectric strength: up to 1500 VDC (contact/ground)
• PoE support: 802.3at (PoE+), 802.3af (PoE)
• Mounting: 19" rack
• Additional: dust protection shutters

How to use

Mount the patch panel in a standard 19" rack and secure it with appropriate screws. Terminate network cables using the IDC-strips according to the color code and ensure the cable shield is connected to the metal-coated fixation. Connect the central grounding connector to the rack or building ground to establish a continuous shield ground. Verify connections and test links before placing the assembly into production.

Recommendations

For optimal performance, use CAT 6A shielded cables and maintain consistent grounding throughout the rack. Regularly inspect the dust protection shutters and clean contacts if necessary. Follow PoE power budgets and equipment specifications when deploying powered devices.
