DimasTech vandalizmu odolný tlačidlový spínač 25 mm Silverline Dot RGB PD216

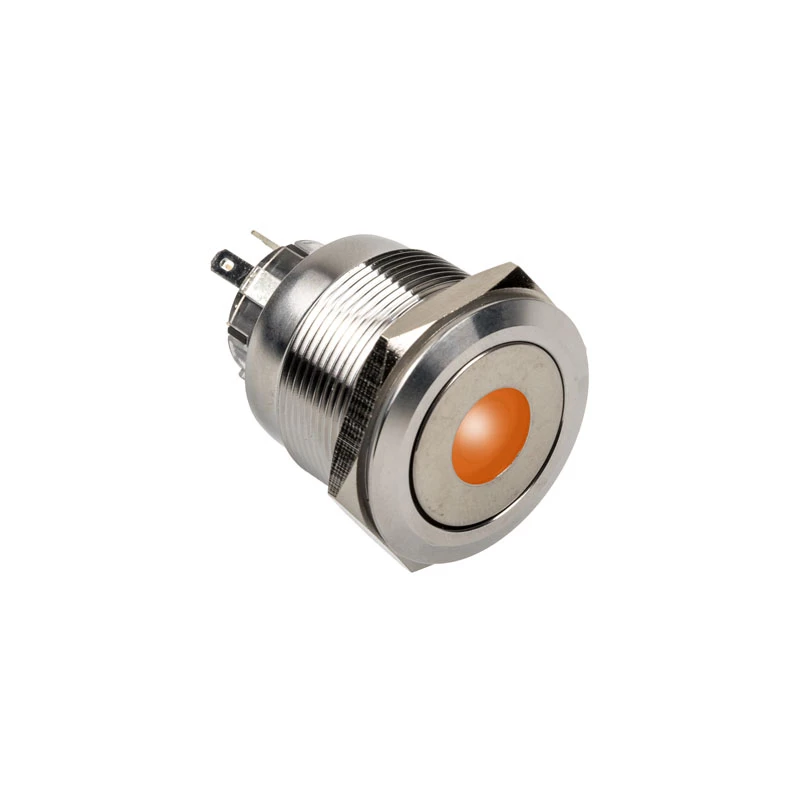

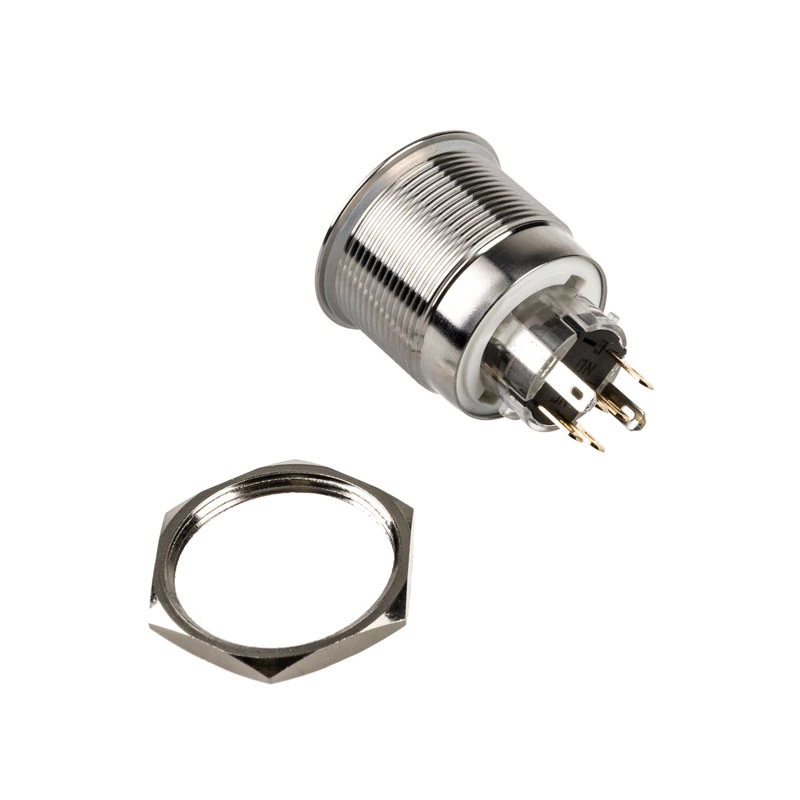

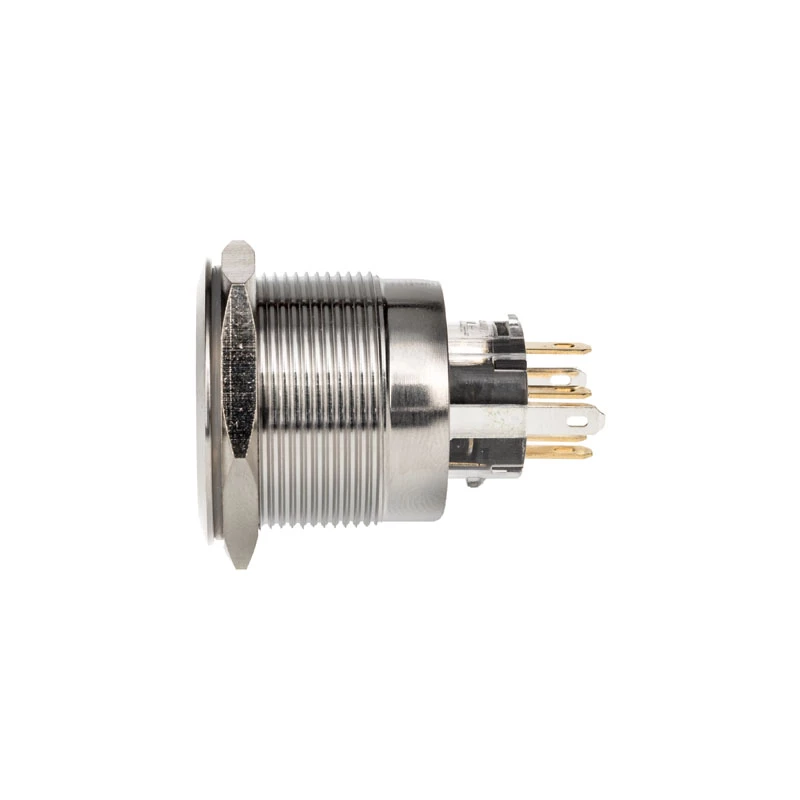

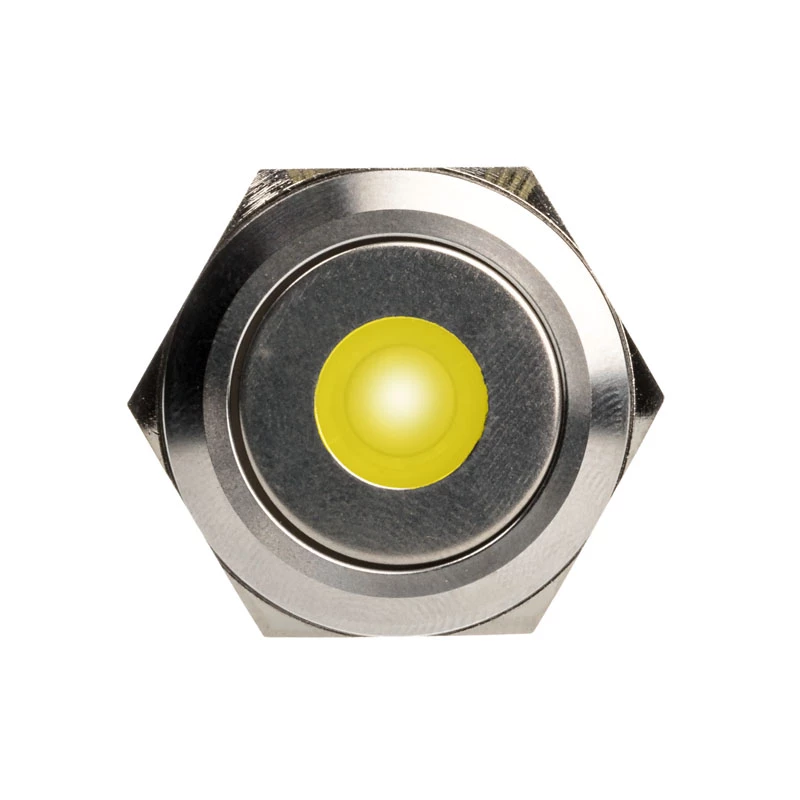

The DimasTech vandal-proof push button 25 mm Silverline Dot RGB PD216 is a metal push button designed for reliable, durable user input in public and industrial environments. The 25 mm actuator and robust metal housing provide mechanical resistance to impact and tampering, while the integrated RGB LED illumination enables customizable visual signaling. The button is intended for installation in panels, kiosks, elevators, access control systems and industrial machinery where long-lasting, clearly visible controls are required.

Advantages

The stainless-feel metal construction offers enhanced durability and resistance to vandalism and wear. Integrated RGB illumination allows selection of different colors and signaling modes to match system feedback or status indication. A compact 25 mm diameter actuator saves panel space while remaining easy to press. The product is built for continuous operation and frequent actuation cycles in demanding environments.

Suitable for

• Access control panels and door entry systems
• Public kiosks, ticket machines and information terminals
• Elevator and lift control panels
• Industrial machinery operator stations
• Outdoor or semi-protected installations requiring tamper-resistant controls

Key specifications

• Actuator diameter: 25 mm
• Housing material: metal construction for vandal resistance
• Illumination: integrated RGB LED for multi-color signaling
• Mounting style: panel-mounted round button
• Intended environment: public, industrial and commercial installations

How to use

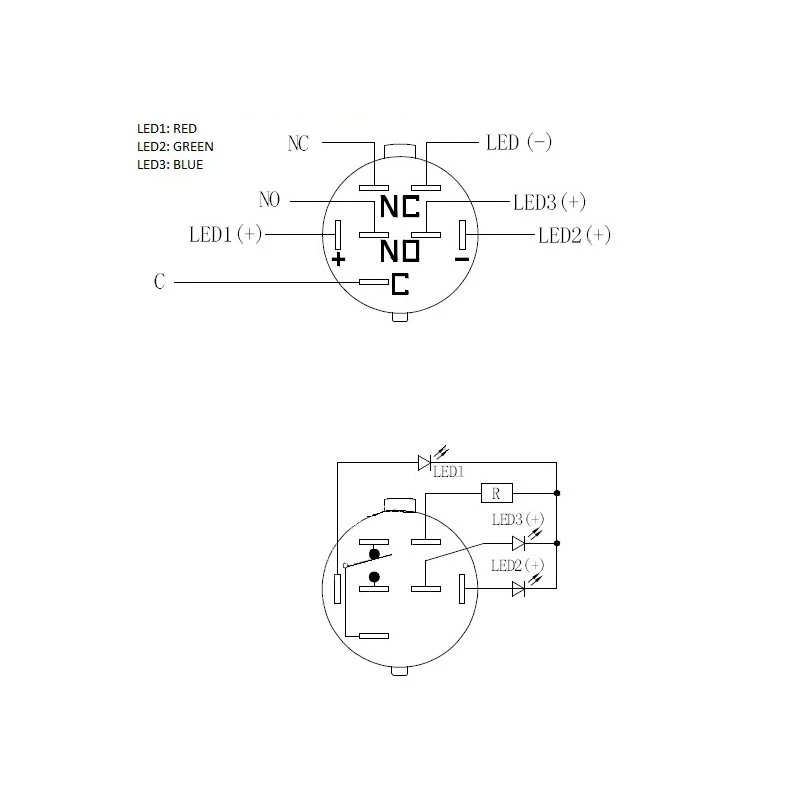

Drill or prepare a matching 25 mm panel cut-out and secure the push button in the panel according to the product’s mechanical mounting method. Connect the electrical terminals for the switch contacts and the RGB LED circuit to the control system following the wiring diagram provided by the system designer or installer. Adjust the LED color and behavior through the control electronics or driver to provide the appropriate status indications. Test mechanical operation and illumination after installation to verify correct functioning.

Recommendations

For long service life, install the button in a properly sealed panel and avoid exposure to corrosive chemicals. Use appropriate sealing or gaskets where required and follow local electrical safety standards when wiring the RGB LED and switch contacts. Periodic visual inspection and functional testing are recommended in high-usage or public environments.
