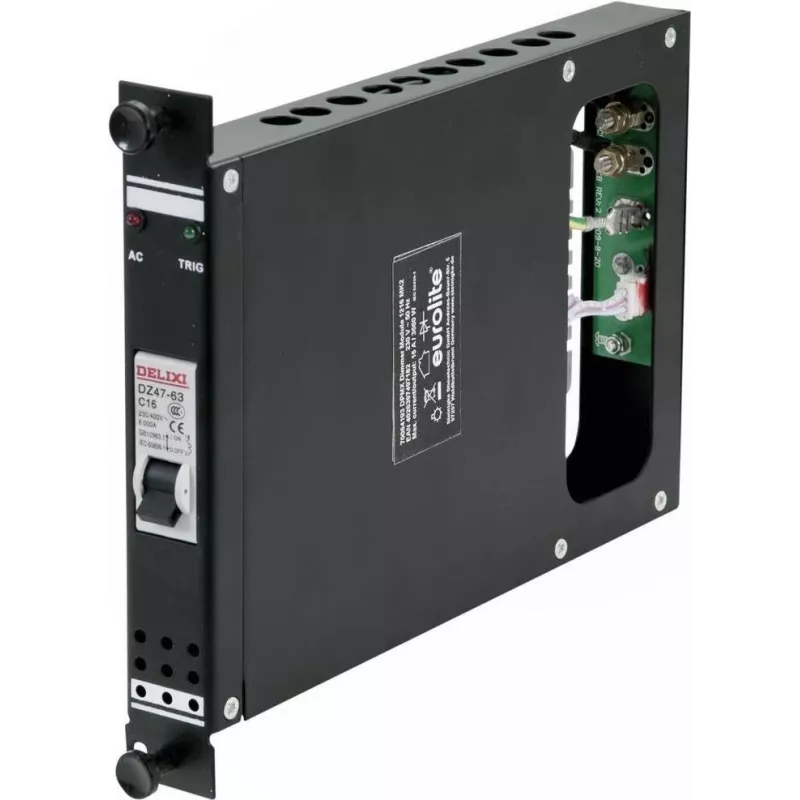

Dimmer modul EUROLITE DPMX 1216 MK2 16-kanálový 3-pin-XLR

EUROLITE DPMX 1216 MK2 16-channel 3-pin XLR dimmer module is designed for integration into DMX-controlled lighting systems. The compact unit provides sixteen independent channels with 3-pin XLR connectors for signal distribution and can be used to regulate intensity across multiple fixtures. It fits into stage, event or fixed-install setups where centralized channel control and simplified wiring are required.

Advantages

The module delivers sixteen dedicated channels that simplify management of multiple dimmable circuits from a single DMX universe. Its 3-pin XLR connections are compatible with common DMX cabling standards, enabling straightforward integration with consoles and other DMX devices. The compact design reduces rack space requirements and supports tidy cable routing, while robust construction ensures reliable operation in professional environments.

Key specifications

How to use

Connect the module to your DMX controller using standard 3-pin XLR cables following DMX wiring conventions. Address each channel according to your lighting plan and assign fixtures to the corresponding DMX channels on your console. Use the controller to adjust intensity and create scenes; the module passes DMX data to the connected outputs so fixtures respond according to assigned channels. Ensure correct termination and grounding to maintain signal integrity.

Recommendations

Place the module in a ventilated area and secure it to prevent movement during events. Use high-quality DMX cables and proper termination at the end of the DMX line. Verify channel addressing before performances and perform a pre-event check to confirm each output responds as expected.
