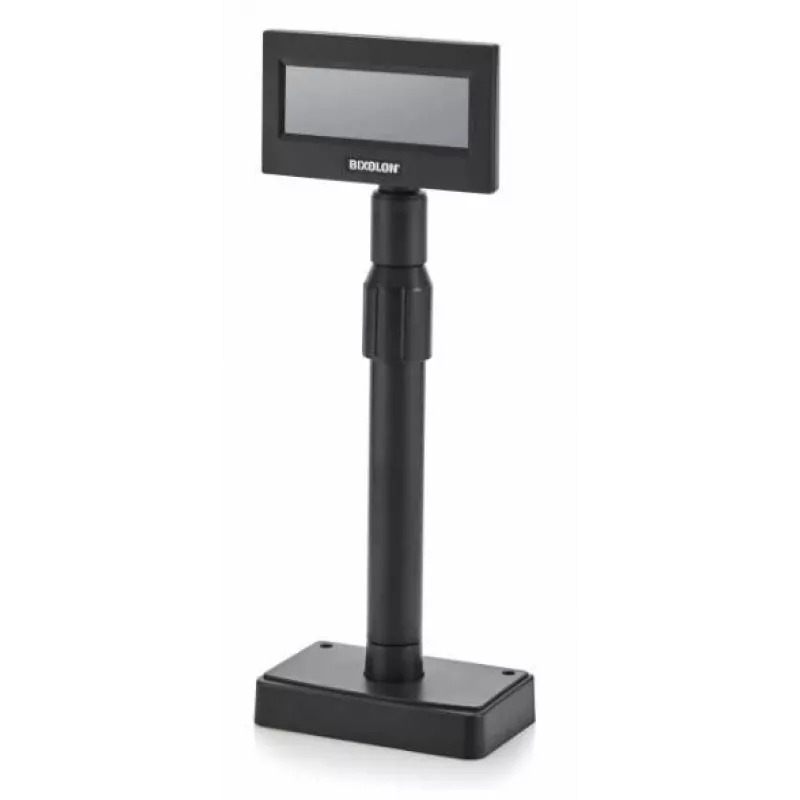

Zákaznícky displej Bixolon BCD-2000 – sériový RS232, čierny (BCD-2000DSG)

Zákaznícky displej Bixolon BCD-2000 – sériový RS232, čierny (BCD-2000DSG)
Zákaznícky displej Bixolon BCD-2000 – sériový RS232, čierny (BCD-2000DSG)
126,32 €
PDF
PDF

Doprava a vrátenie tovaru

Predpokladané doručenie štvrtok 3. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

The Bixolon BCD-2000 is a compact customer display for POS environments featuring up to 120 characters shown on a bright 100 cd/m² screen. It offers fine digit pitch (0.03 mm), two character font sizes (8×16 and 9×17), adjustable height (174–528 mm) and a tilt angle range up to 13°. Connectivity includes RS-232 and USB 2.0 for easy plug-and-play integration with Android™, iOS™ and Windows® systems. The device is lightweight (0.85 kg), available in black and designed for versatile mounting and positioning in retail and hospitality settings.

Advantages

The display supports flexible character alignment (horizontal, vertical, font and line spacing) and adjustable text alignment (center, left, right), allowing clear presentation of messages and totals. Two font options and a maximum 120-character capacity accommodate longer customer messages. Mechanical features include adjustable display height, 13° tilt and 360° screen rotation plus an optional wall mount for adaptable placement. The unit provides improved reliability compared with previous Bixolon models and a simple image or text download via utility, while USB pass-through simplifies connection to the host.

Suitable for

  • Retail point-of-sale counters
  • Restaurants and hospitality check-out stations
  • Any environment requiring customer-facing transaction displays

Key specifications

  • Model: Bixolon BCD-2000 (BCD-2000DSG, EAN 8809521191912)
  • Display capacity: up to 120 characters
  • Digit pitch: 0.03 mm
  • Brightness: 100 cd/m²
  • Fonts: 8×16 and 9×17
  • Height adjustment: 174–528 mm
  • Tilt angle: 0–13° (plus 13° five-option adjustor) and 360° rotation
  • Connectivity: RS-232, USB 2.0 (plug and play, USB pass-through)
  • Dimensions (W×D×H): 220.4 × 105.4 × 528 mm
  • Weight: 0.85 kg
  • Colour: Black

How to use

Position the BCD-2000 on the counter or mount it on a wall using the optional bracket, then adjust the height and tilt to the desired viewing angle. Connect power and link the unit to the POS host via RS-232 or USB 2.0; USB supports plug-and-play setup and a pass-through design for tidy cabling. Use the supplied utility to configure character alignment, select font size, upload images or text and set line and font spacing before putting the display into service.

Recommendations

Place the display where customers can easily read transaction totals; set font size and alignment to balance readability and message length. For integrated systems, test USB and RS-232 connections during installation to confirm communication with your POS software.
Hlavné vlastnosti
  • Retail point-of-sale counters
  • Restaurants and hospitality check-out stations
  • Any environment requiring customer-facing transaction displays
  • Model: Bixolon BCD-2000 (BCD-2000DSG, EAN 8809521191912)
  • Display capacity: up to 120 characters
  • Digit pitch: 0.03 mm
  • Brightness: 100 cd/m²
  • Fonts: 8×16 and 9×17
  • Height adjustment: 174–528 mm
  • Tilt angle: 0–13° (plus 13° five-option adjustor) and 360° rotation
  • Connectivity: RS-232, USB 2.0 (plug and play, USB pass-through)
  • Dimensions (W×D×H): 220.4 × 105.4 × 528 mm
  • Weight: 0.85 kg
  • Colour: Black

Parametre

Parametre
Farba osvetlenia
Biela, modrá
Farba produktu
Čierna
Hĺbka
105.4 mm
Hmotnosť
0.85 kg
Jas displeja
100 cd/m²
Počet číslic displeja
120 číslic
Prevádzková teplota (T-T)
0 - 40
Relatívna vlhkosť pri prevádzke (H-H)
10 - 80
Relatívna vlhkosť pri skladovaní (H-H)
10 - 90
Rozhranie
RS-232
Rozsah nastavenia výšky
174 - 528
Rozsah uhla sklonu
0 - 13
Rozstup číslic
0.03 mm
Šírka
220.4 mm
Teplota skladovania (T-T)
-20 - 55
Veľkosť displeja (VxŠ)
127.2 x 33.9
Voliteľné pripojenie
USB 2.0, Serial (RS-232)
Výška
528 mm
