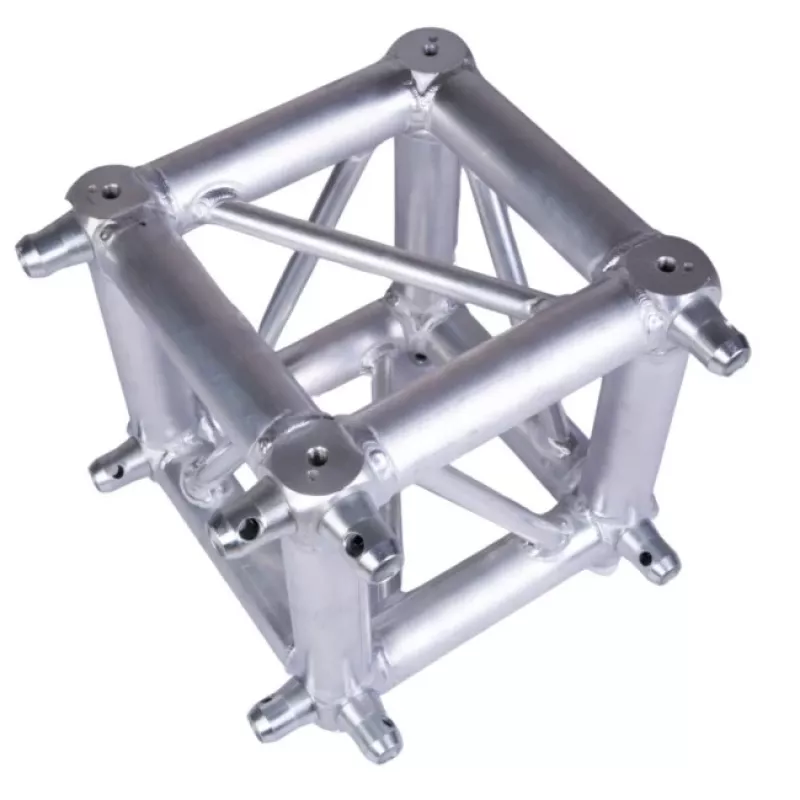

DNA TQ4 rohová kocka pre traverzové systémy

Creating complex truss structures often hits a wall when you need to branch in multiple directions. Standard corners limit your design to a single plane, forcing compromises or custom fabrication. The DNA TQ4 Cube Corner solves this by providing six connection faces in one robust aluminium unit, enabling true three-dimensional truss configurations for stages, exhibitions, and architectural installations.

Who is it for

This corner is built for event production companies, exhibition booth builders, stage riggers, and retail display designers who demand reliable, modular truss systems. If you work with DNA TQ4 series truss segments and need to create multi-directional structures—such as cubes, towers, or complex roof grids—this component is essential. It suits both indoor and outdoor applications, from concert stages to trade show pavilions.

Main features

• 6-way cube design allows connections on all faces for full 3D versatility.
• Constructed from high-strength aluminium alloy EN AW-6082 T6 for excellent load-bearing capacity and corrosion resistance.
• Main tubes of 50 mm diameter with 2 mm wall thickness ensure structural integrity.
• Conical coupler (spigot) connection system with pins and R-clips enables fast, tool-free assembly.
• Fully compatible with DNA TQ4 series truss segments, maintaining consistent 290 x 290 mm profile.
• Natural aluminium finish provides a professional, clean look suitable for visible installations.

Specifications

• Truss system series: DNA TQ4
• Truss profile: Square truss
• Corner configuration: 6-way cube corner
• Outer dimensions (square profile): 290 x 290 mm
• Main tube diameter: 50 mm
• Main tube wall thickness: 2 mm
• Brace tube diameter: 20 mm
• Material: Aluminium alloy EN AW-6082 T6
• Connection system: Conical coupler (spigot) with pins and R-clips
• Number of connection faces: 6
• Finish: Natural aluminium (silver)
• Application: Stage construction, exhibition booths, event structures, retail displays
• Load rating: Designed for medium to heavy-duty applications
• Corrosion resistance: High
• Assembly method: Tool-free with included pins and clips (sold separately)
• Product type: Truss corner element
• Compatibility: Fully compatible with DNA TQ4 series truss segments
• Environmental resistance: Suitable for indoor and outdoor use

Tips

For maximum stability, always secure each connection with the provided pins and R-clips. When designing multi-level structures, distribute loads evenly across all six faces to prevent undue stress on any single joint. Regular inspection of connectors and aluminium surfaces will extend the lifespan of your truss system.
