Dok pre notebook Port Designs 900140

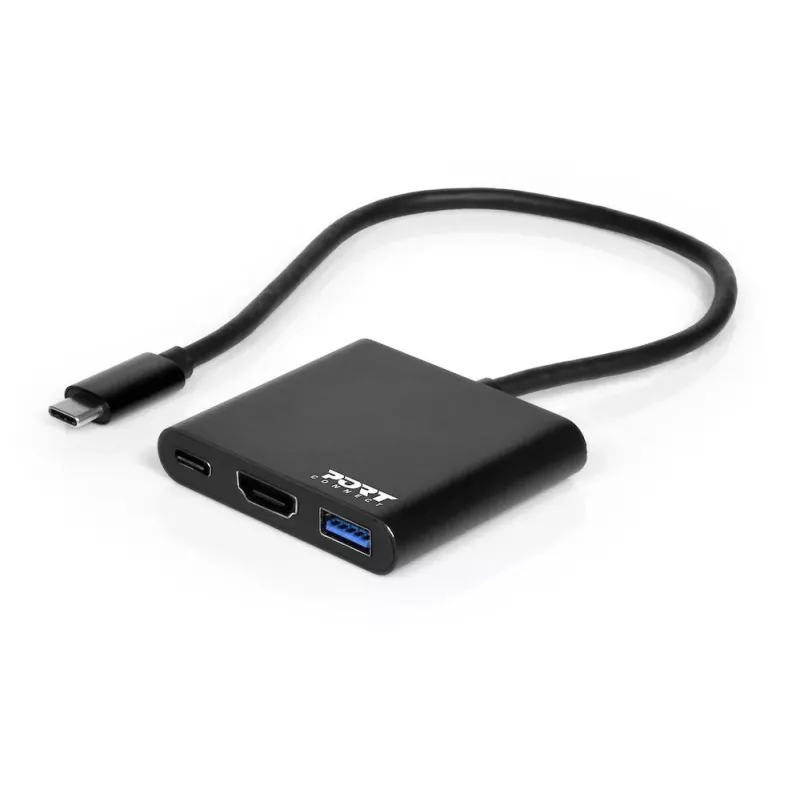

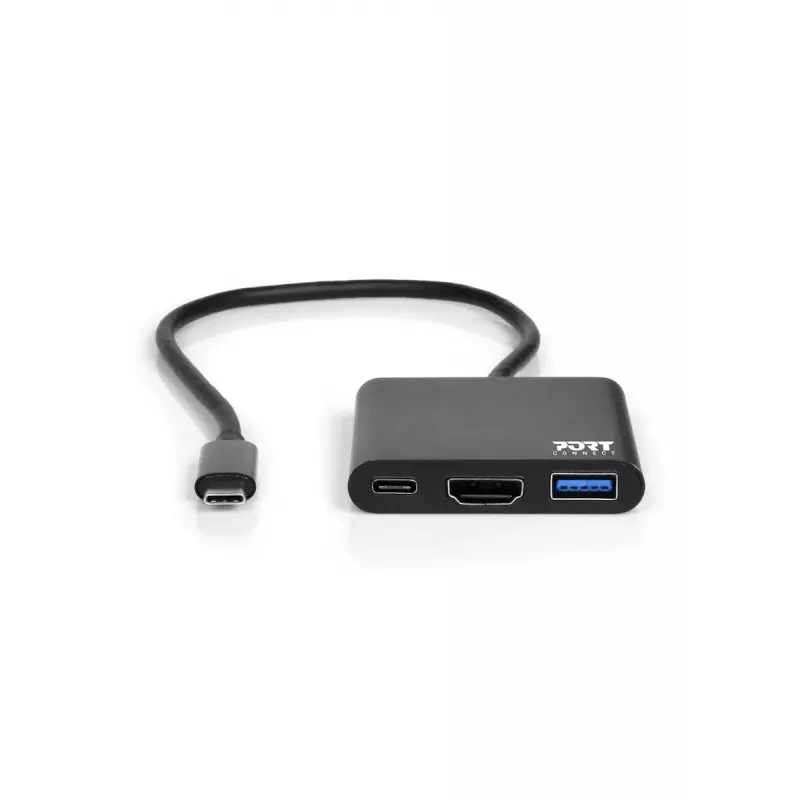

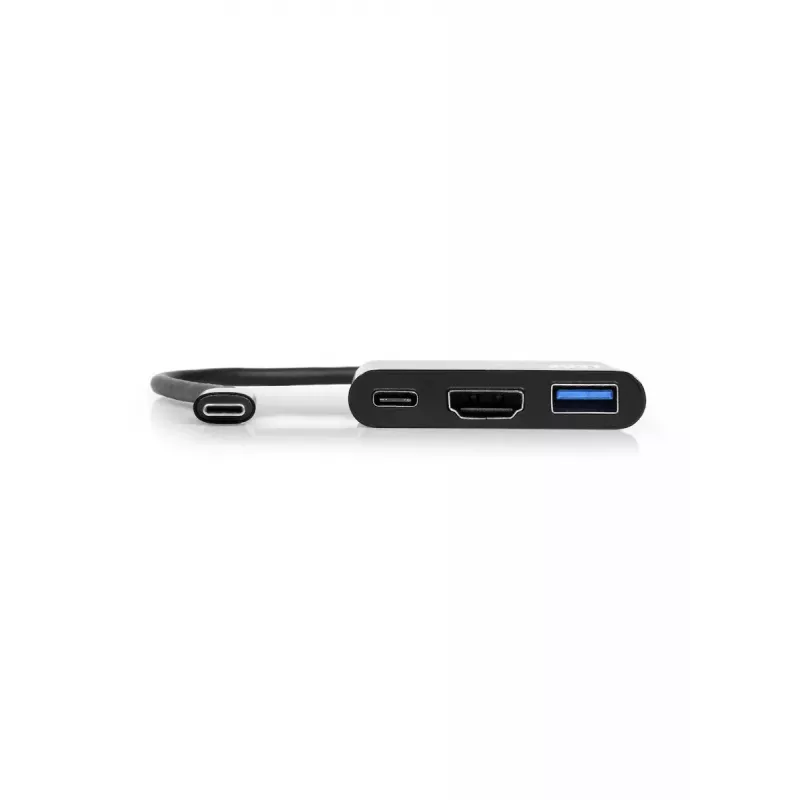

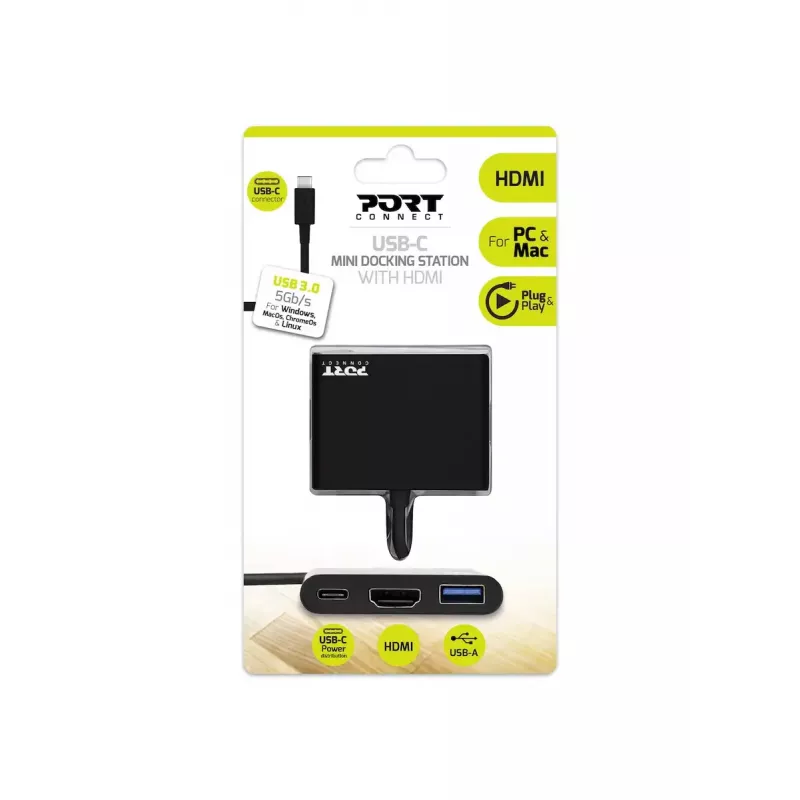

The Port Designs 900140 USB-C Mini Docking Station with HDMI is a compact wired dock that expands laptop connectivity through a USB 3.2 Gen 1 Type-C interface. It supports up to 4K Ultra HD video output via HDMI and offers power delivery up to 60 W over USB-C. The dock provides three ports — HDMI, USB-A (USB 3.0 / 3.2 Gen 1) and USB-C — in a small, lightweight housing with a 30 cm attached cable. It is compatible with PC and Mac systems and supports plug & play installation.

Advantages

This mini docking station delivers 4K HDMI video output while providing up to 60 W power distribution through the USB-C port, allowing simultaneous display and charging. The wired USB 3.2 Gen 1 connection enables high-speed data transfer up to 5 Gbit/s via the USB-A port. Its compact, ergonomic design and 30 cm cable make it easy to carry and connect to laptops, and broad OS compatibility includes ChromeOS, Windows and macOS environments.

Suitable for

• Extending a laptop display to an external monitor or TV (4K Ultra HD)
• Connecting peripherals such as external drives, keyboard or mouse via USB-A
• Charging a laptop or powering devices with up to 60 W over USB-C
• Mobile or home office setups that require a compact docking solution

Key specifications

• Model: Port Designs 900140
• Interface: USB-C wired (USB 3.2 Gen 1 / USB 3.1 Gen 1)
• Data transfer rate: up to 5 Gbit/s (USB 3.0 / 3.2 Gen 1)
• Video output: HDMI, up to 4K Ultra HD
• Power delivery: up to 60 W via USB-C
• Ports: 1× HDMI, 1× USB-A (USB 3.0), 1× USB-C
• Compatibility: PC & Mac, ChromeOS
• Dimensions (W×D×H): 60 mm × 55 mm × 12 mm
• Weight: 0.04 kg
• Colour: Black
• Cable length: 30 cm

How to use

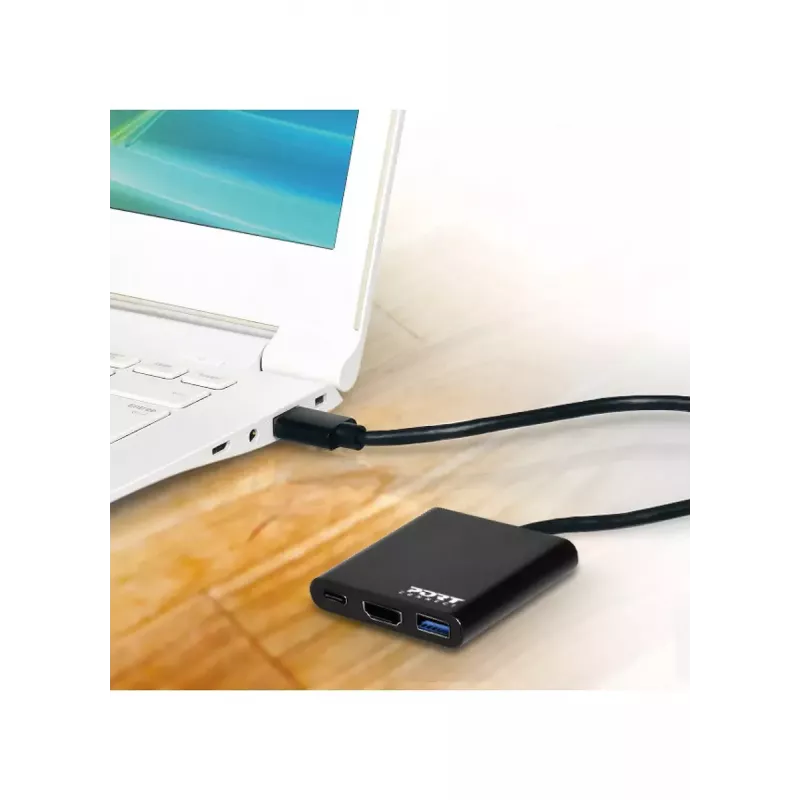

Connect the dock to your laptop using the integrated 30 cm USB-C cable. Attach an external monitor to the HDMI port to enable video output, and plug peripherals into the USB-A or USB-C ports for data transfer. If your laptop supports USB-C power delivery, the dock can provide up to 60 W to charge the device while in use. No drivers are required for standard plug & play operation on supported operating systems.

Recommendations

For best results, connect the docking station directly to a USB-C port on the host laptop that supports DisplayPort Alt Mode and USB-C power delivery. Use high-quality HDMI cables for stable 4K output and verify system settings if multiple displays are connected.
