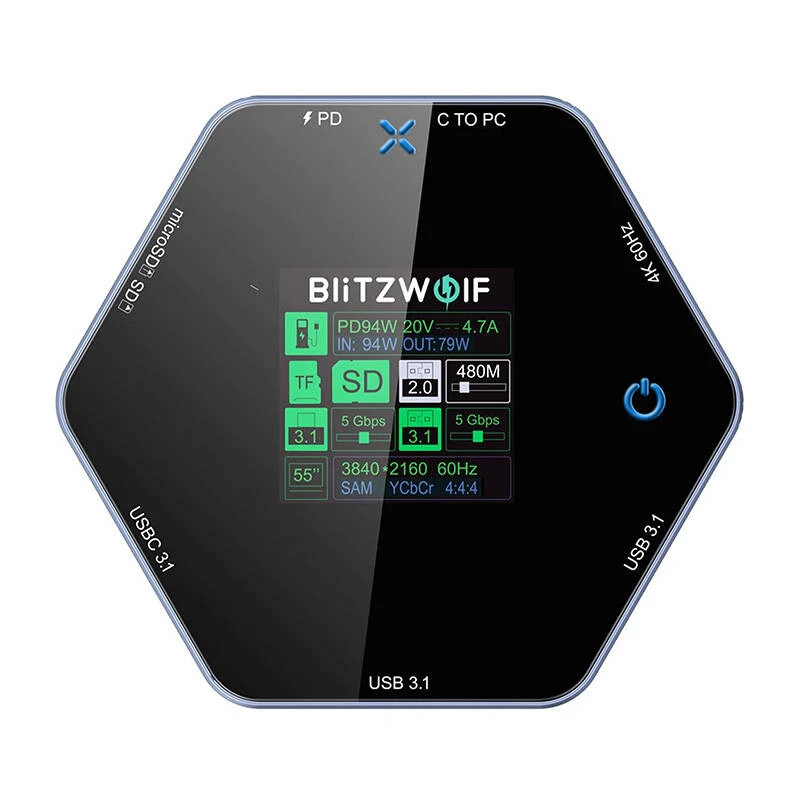

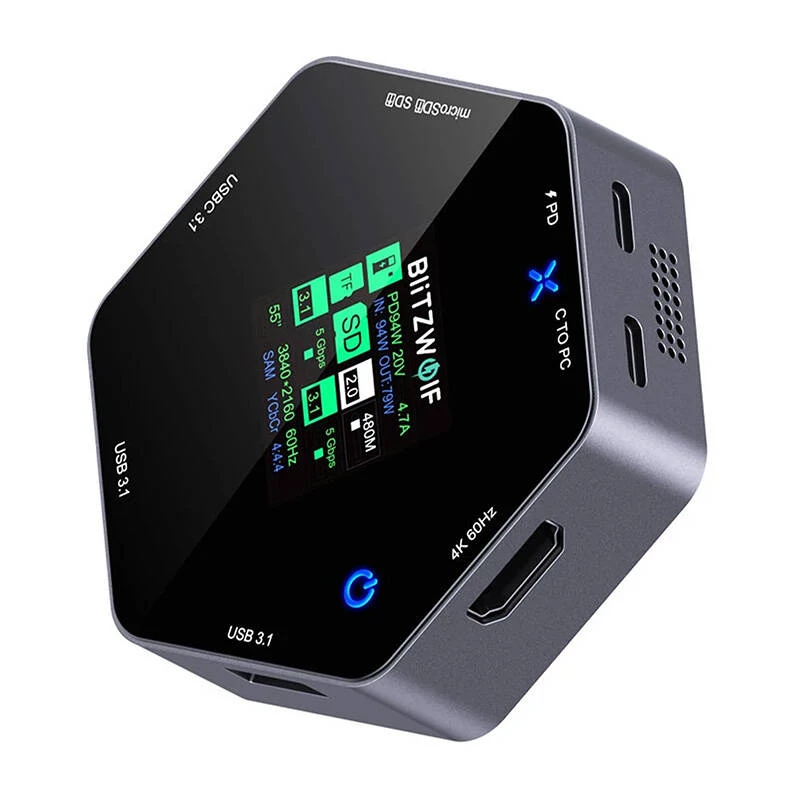

Dokovacia stanica BlitzWolf BW-TH16 8in1 USB 100W s LCD Smart Display

The BlitzWolf BW-TH16 8-in-1 USB docking station combines multiple ports, PD fast charging and an LCD smart display in a compact aluminum-alloy housing with tempered glass. Designed for laptops and compatible devices, it consolidates connections for monitors, storage, and peripherals while providing active cooling and plug-and-play operation.

Advantages

The docking station supports PD fast charging with up to 85W output and 100W input, offers 4K@60Hz video output via HDMI, high-speed data transfer over USB 3.1 and a 10Gbps card reader. An integrated 26×26 mm touchscreen LCD displays device status and settings. Active cooling with a 10,000 rpm fan maintains stable temperatures under heavy load, and the compact 82 × 72 × 22 mm aluminum-alloy design with tempered glass finish ensures portability and durability.

Suitable for

• Connecting laptops to external monitors and TVs (4K@60Hz)
• Fast charging laptops and mobile devices via USB-C PD
• Transferring files between external drives, SD/TF cards and computers
• Home office and remote-work setups requiring multiple peripherals
• Multimedia presentations with projector or large-screen displays

Key specifications

• Manufacturer: BlitzWolf
• Model: BW-TH16
• Ports: 1 × USB-C 3.1, 2 × USB 3.1, 1 × USB-C PD (100W), HDMI (4K@60Hz), SD slot (3.0), TF slot (3.0)
• Card reader speed: up to 10 Gbps
• LCD screen: 26 × 26 mm touchscreen, 30 min active display time
• Cooling: built-in fan, 10,000 rpm
• Power input/output: PD 3.0 protocol, 100W input, 85W charging output
• Material: Aluminum alloy, tempered glass
• Dimensions: 82 × 72 × 22 mm
• Cable: USB-C to USB-C (USB 3.1), 30 cm
• Operating temperature reference: 42℃ (room temp 26℃)
• Connection: Plug and play

How to use

Connect the BW-TH16 to a host device using the supplied USB-C to USB-C cable. Use the USB-C PD port to supply power (up to 100W input) and the other USB ports for data and peripherals. Attach an external display via HDMI to enable 4K@60Hz output. Insert SD or TF cards into their respective slots or connect external drives to the USB 3.1 ports for file transfers. Use the touchscreen LCD to view status and adjust basic settings. The device requires no additional drivers for standard operation.

Recommendations

To ensure optimal cooling and performance, place the docking station on a flat, ventilated surface and avoid blocking the fan intake and exhaust. For best charging and video output results, use the supplied USB-C cable and a compatible power adapter that supports PD 3.0.
