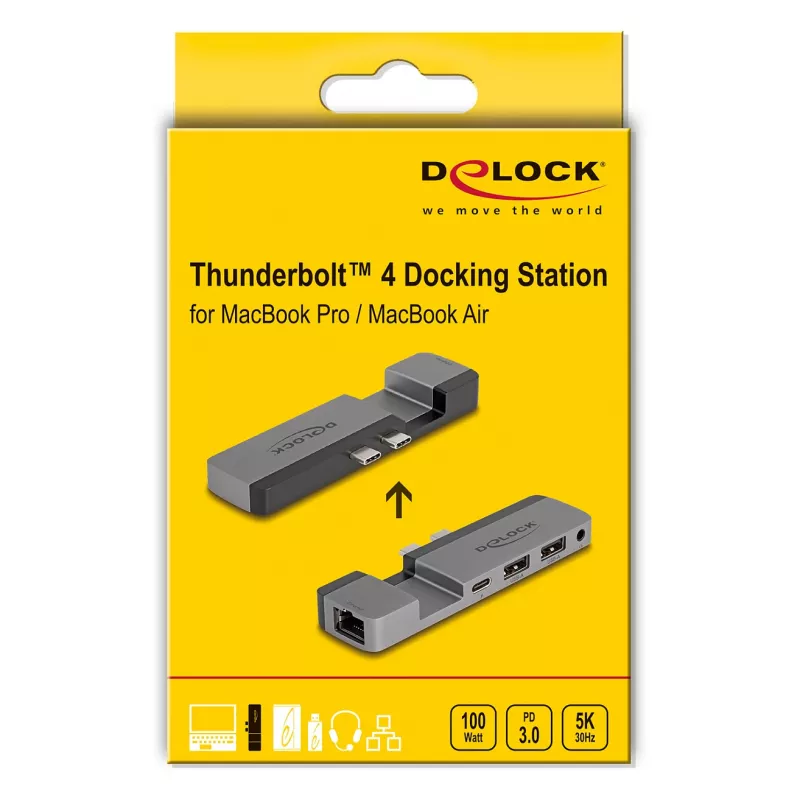

Dokovacia stanica DeLOCK 87757 Thunderbolt 4 5K 100W PD 10Gbps LAN Audio

This Delock docking station connects to a MacBook Pro or Air with two adjacent Thunderbolt™ 4 ports and provides a Thunderbolt™ 4 pass-through, two USB Type-A ports, headset connection and a Gigabit Ethernet port. It supports Power Delivery (USB PD 3.0) up to 100 W and DP Alternate Mode for video output, and its compact, sturdy housing includes a gap to allow continued use of a MagSafe 3 connector.

Advantages

The Thunderbolt™ 4 pass-through port lets you connect additional Thunderbolt devices such as docks, SSDs or monitors while also supporting DP Alt Mode for HDMI/DisplayPort/DVI via suitable adapters. USB PD 3.0 charging up to 100 W enables laptop charging through the dock. Two built-in USB Type-A ports provide connectivity for peripherals and a Gigabit Ethernet port offers stable wired network access. The small, robust aluminium-coloured housing and a MagSafe 3 gap make the unit convenient for travel and continuous MagSafe use.

Suitable for

• MacBook Pro and MacBook Air users with adjacent Thunderbolt 4 ports
• Users needing laptop charging (up to 100 W) via dock
• Connecting external displays via DP Alt Mode with adapters
• Connecting USB-A peripherals such as keyboard, mouse or storage
• Working with wired networks via Gigabit Ethernet

Key specifications

• Brand: DELOCK, model number 87757 (EAN 4043619877577)
• Interface: Thunderbolt™ 4 pass-through (supports DP Alt Mode)
• Power Delivery: USB PD 3.0, up to 100 W
• USB: 2 × USB 3.2 Gen 1 (Type-A)
• Network: 1 × Gigabit Ethernet (RJ-45)
• Audio: headset connection
• Data rate: up to 10 Gbps (Thunderbolt/USB)
• Dimensions: approx. 29 mm × 108 mm × 13 mm
• Colour: grey / black

How to use

Connect the docking station to the MacBook using the Thunderbolt™ 4 connector into one of the two adjacent Thunderbolt™ 4 ports on the laptop. Plug additional Thunderbolt devices into the pass-through port if needed, and connect monitors using appropriate adapters that support DP Alternate Mode. Attach USB peripherals to the Type-A ports, connect a headset to the audio jack and plug an Ethernet cable into the RJ-45 port for wired network access. If you use MagSafe 3, route the MagSafe connector through the docking station’s gap so the laptop can still be charged via MagSafe while the dock is attached.

Recommendations

For optimal performance, use high-quality Thunderbolt 4 and Ethernet cables and ensure your MacBook firmware and OS are up to date. When connecting high-resolution displays or charging at high power, confirm that connected devices and adapters support the required specifications.
