Dokovacia stanica DeLOCK USB Type-C DP 1.4 Triple 4K displej

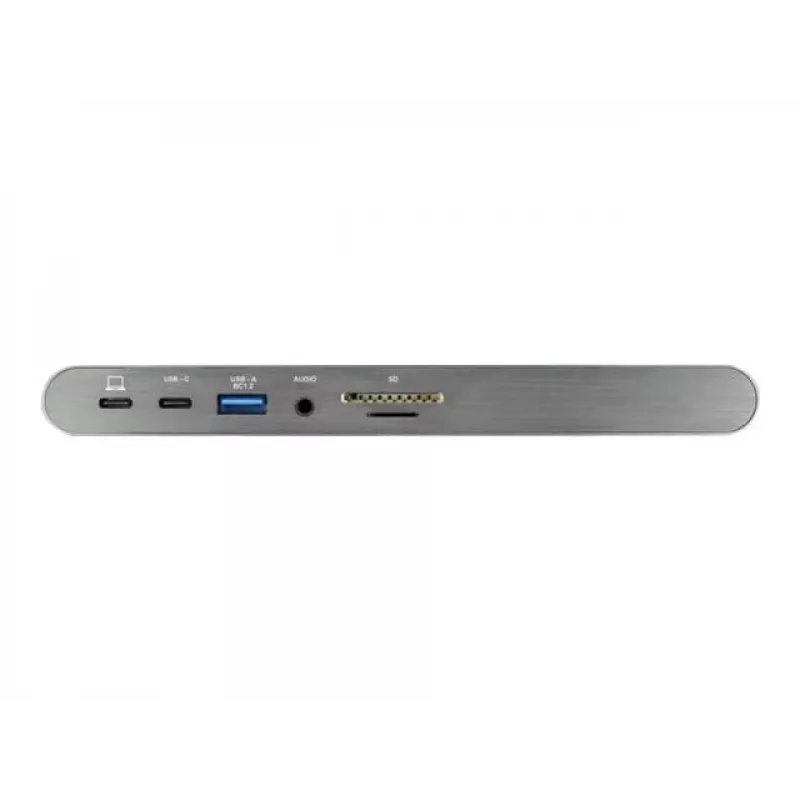

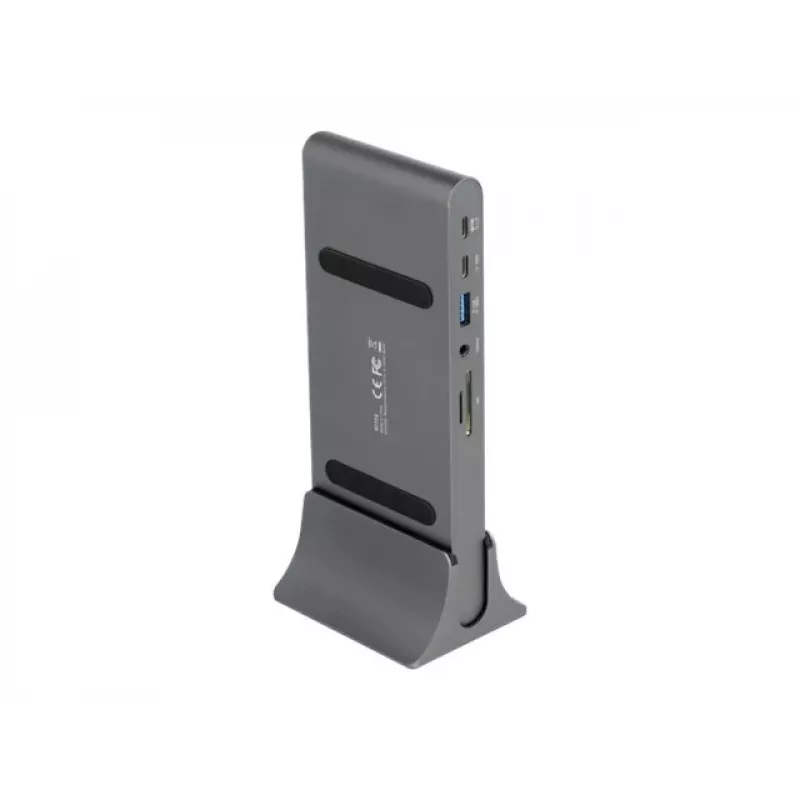

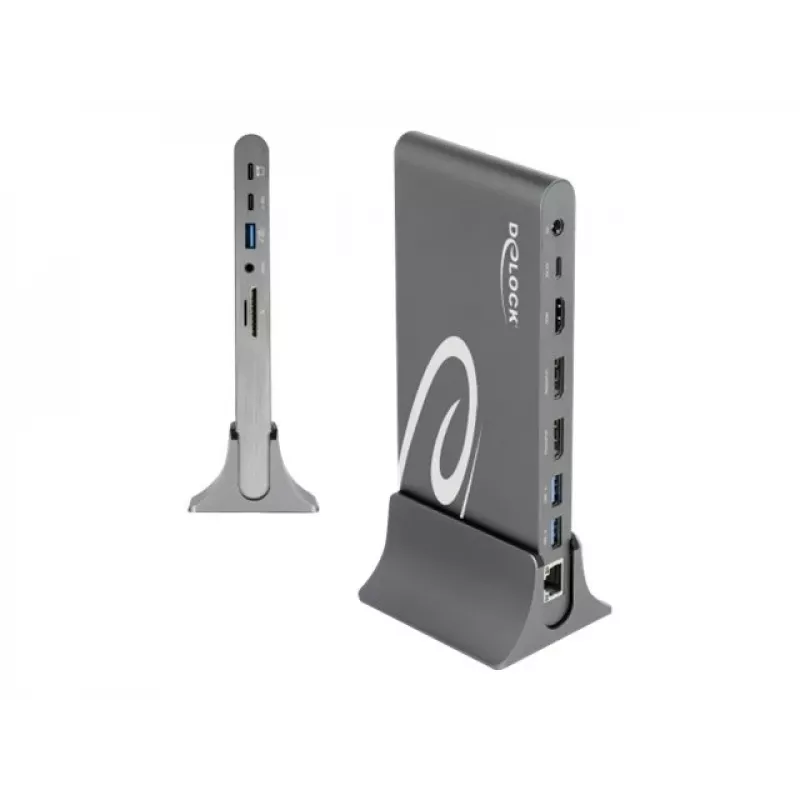

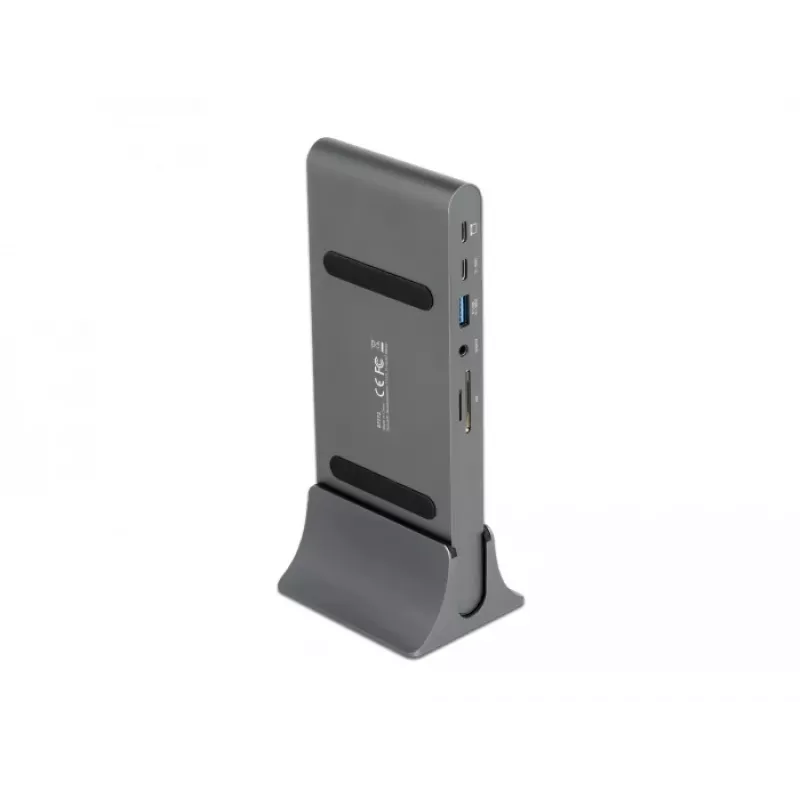

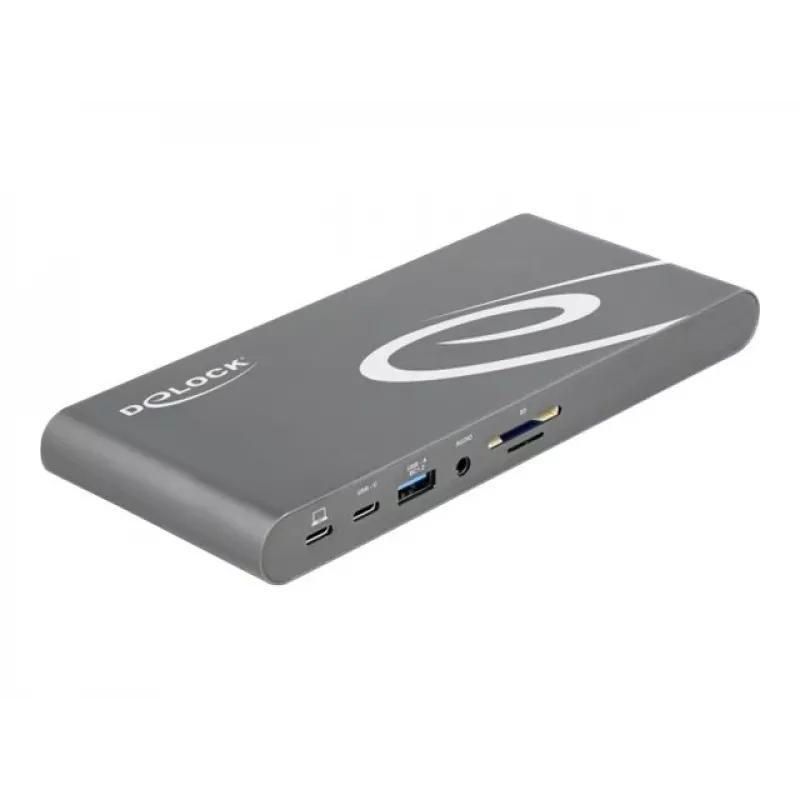

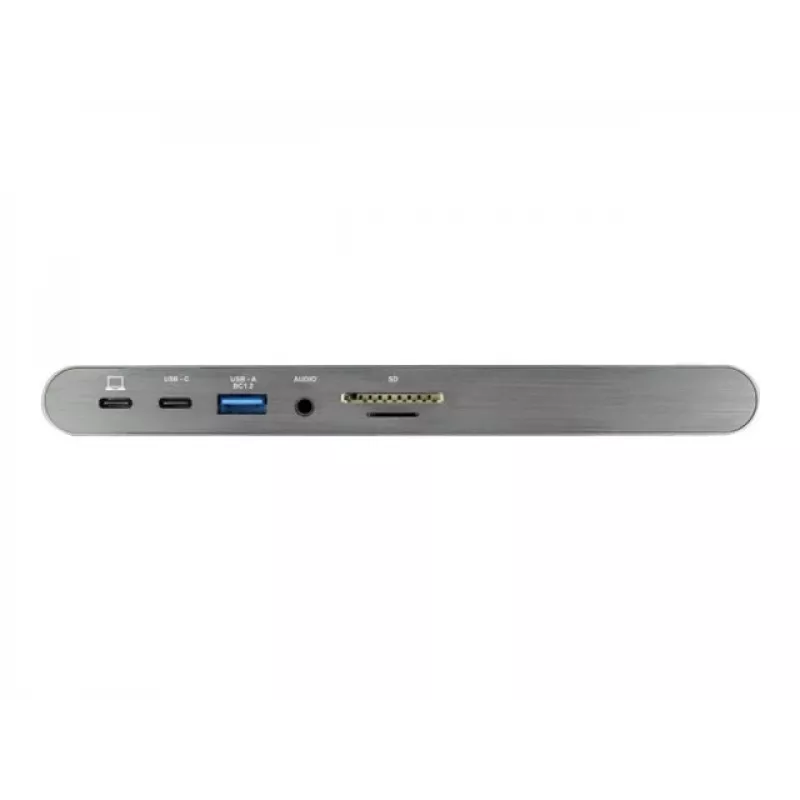

This Delock docking station connects to a computer via a USB-C™ port with DisplayPort Alt Mode or a Thunderbolt™ 3 port and provides multiple interfaces for desktop expansion. It supports Multi-Stream Transport (MST) to drive up to three monitors simultaneously via its DisplayPort and HDMI outputs, and includes SD and Micro SD card slots, a Gigabit Ethernet port, a 3.5 mm headset jack and four USB ports for peripherals. The integrated USB Power Delivery (USB PD 3.0) port supplies up to 85 W to charge a connected laptop or tablet. The unit can be used horizontally or vertically; a stand for vertical operation is included.

Advantages

The docking station supports DisplayPort MST for extended desktop setups across multiple displays and offers triple-monitor capability using DisplayPort 1.4 and HDMI outputs. It combines video outputs, wired Ethernet, card readers and multiple USB Type-A ports in a single device, and provides up to 85 W USB Power Delivery to charge compatible laptops. The included stand enables vertical placement to save desk space.

Suitable for

• Office workstations requiring multiple external monitors
• Home offices and remote work setups
• Users who need wired Ethernet and multiple USB accessories
• Photographers and content creators using SD/Micro SD cards

Key specifications

• Interface to host: USB-C with DP Alt Mode or Thunderbolt 3
• Video outputs: DisplayPort and HDMI (supports up to three monitors via MST)
• USB ports: four Type-A ports (USB 3.2 Gen 1 / 3.1 Gen 1, per product data three are USB 3.2 Gen 1 Type-A)
• Card readers: SD and Micro SD slots
• Audio: 3.5 mm headset jack
• Network: Gigabit Ethernet (RJ-45)
• Power delivery: USB PD 3.0 up to 85 W
• Power input: AC 100–240 V
• Compatibility: Windows 10, Windows 8.1, Android 9.0 (depends on host video support)
• Color: Grey

How to use

Connect the docking station to a compatible host computer using a USB-C cable to a port that supports DisplayPort Alt Mode or Thunderbolt 3. Attach external monitors to the DisplayPort and HDMI outputs; configure extended desktop or monitor arrangement in the operating system. Insert SD or Micro SD cards into the card slots to access files, and connect USB peripherals to the Type-A ports. Plug the docking station’s power supply into AC mains and, if required, connect the USB PD port to your laptop’s power input to charge the device while in use. Use the included stand to operate the unit vertically if preferred.

Recommendations

For optimal multi-monitor performance, verify that the host computer’s USB-C or Thunderbolt port supports DP Alt Mode and that the GPU and cables can handle the desired combined resolutions. Driver and OS support may affect maximum simultaneous resolutions when using MST.
