Dokovacia stanica IMIN TF2 32 s Pogo-Pin, 58 mm, POS príslušenstvo

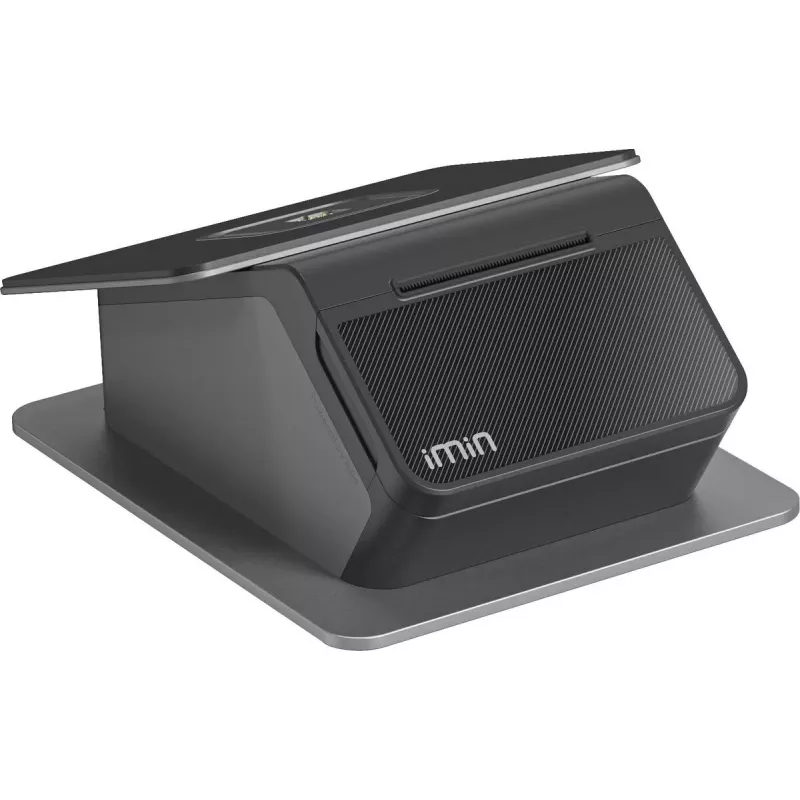

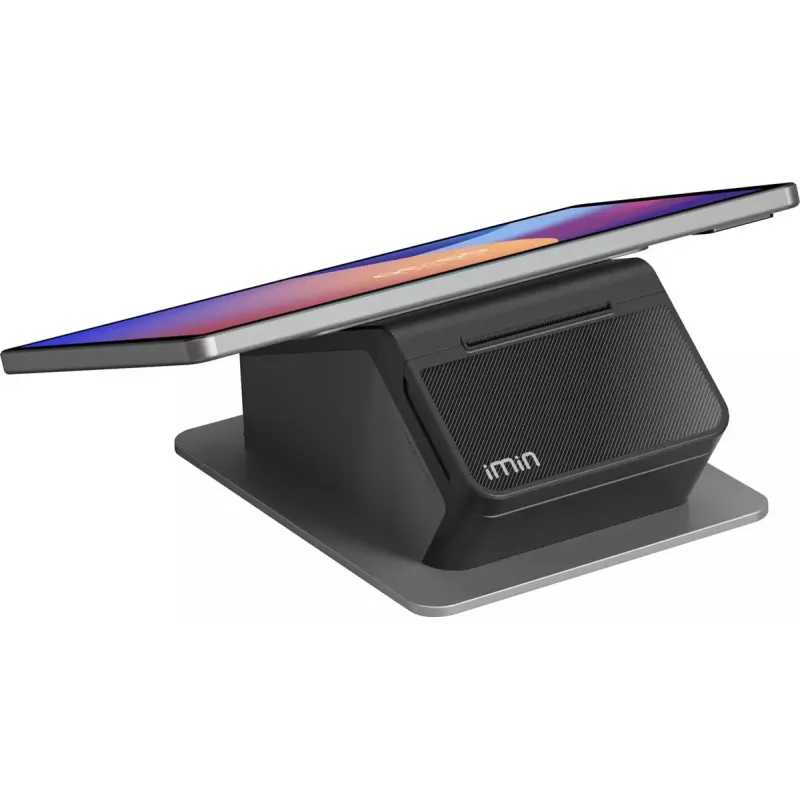

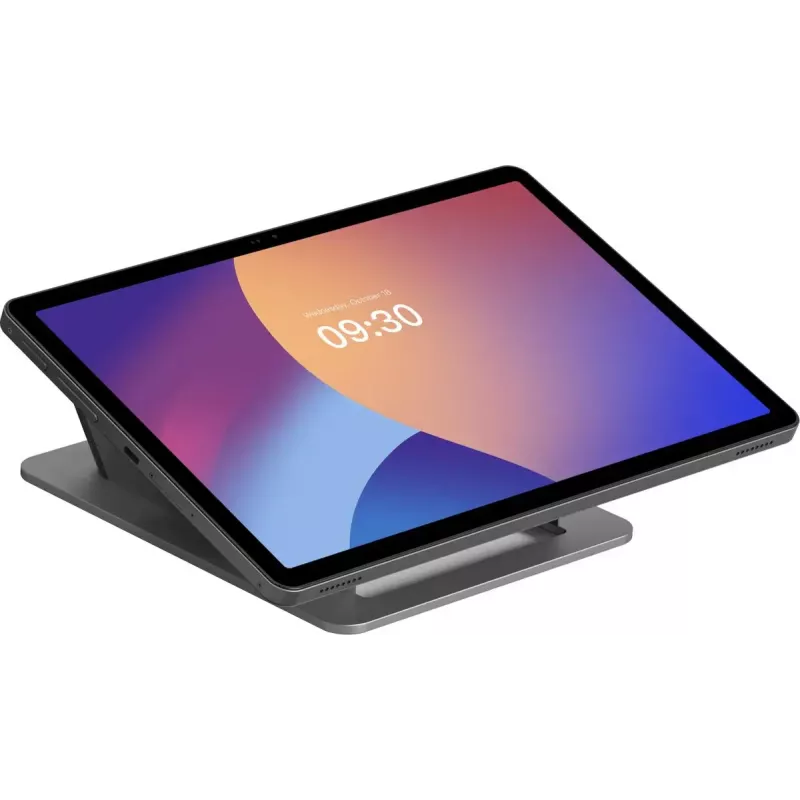

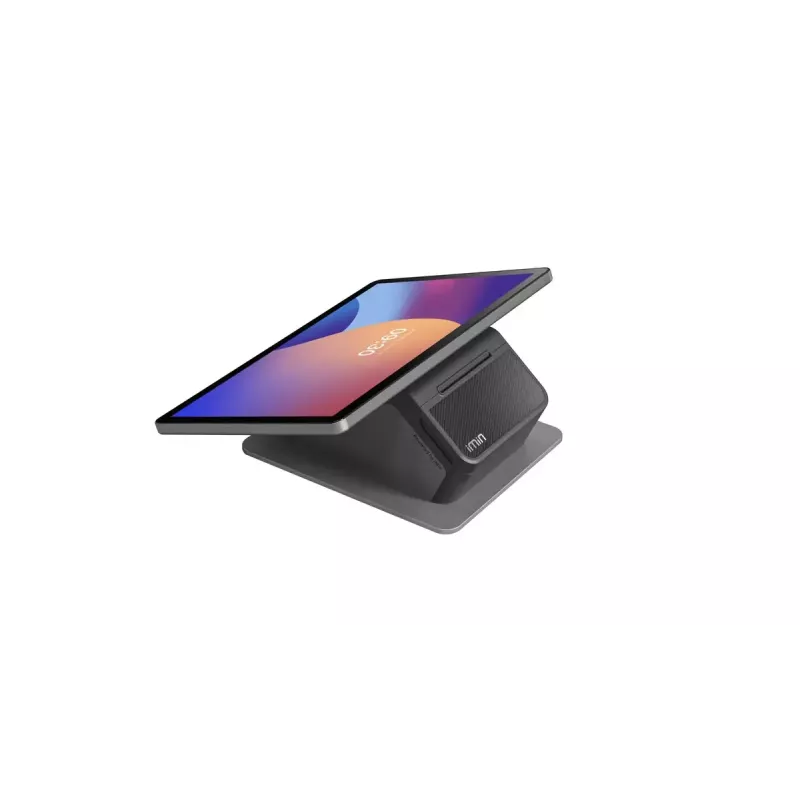

Docking Station IMIN TF2 32 with Pogo Pin is a 58 mm printer dock designed for the Falcon 2 tablet. It provides a stable mechanical and electrical interface for charging and data transfer, and supports a 58 mm width paper roll with a 50 mm core diameter. The dock accepts a single DC jack and offers two USB Type-A ports, one RJ12, one RJ45 and a 9‑pin magnetic Pogo pin connection. Falcon 2 tablet is not included.

Advantages

The IMIN TF2 32 docking station combines a compact 58 mm printer mounting with multiple wired interfaces to integrate a POS setup. Magnetic Pogo pins ensure reliable contact for power and data while the included RJ12 and RJ45 ports support peripheral connectivity and network access. Its construction allows quick docking and organized device storage in retail and service counters.

Suitable for

• Retail point-of-sale counters
• Ticketing and receipt-printing stations
• Service desks and kiosks requiring compact printer integration

Key specifications

• Model: TF2-32 Falcon
• Paper roll compatibility: 58 mm width, 50 mm core diameter
• Print speed: up to 100 mm/s
• Interfaces: DC jack x1, USB Type-A x2, RJ12 x1, RJ45 x1

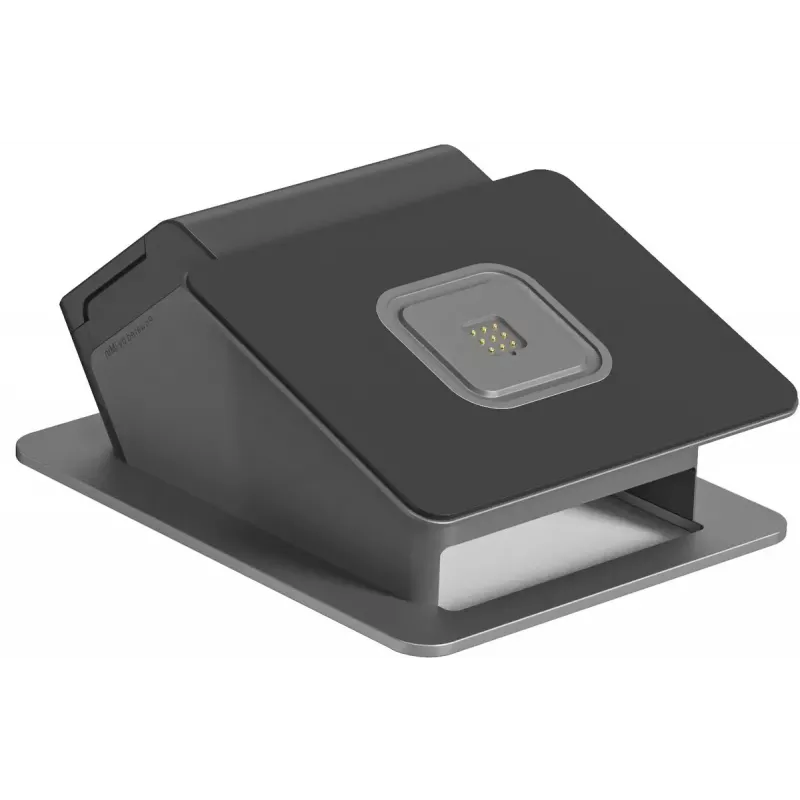

• Pogo pin: 9‑pin magnetic connector
• Product net weight: 1 kg
• Units per shipping box: 1

How to use

Place the Falcon 2 tablet onto the dock so the magnetic Pogo pin aligns with the device contacts to establish power and data connection. Install a 58 mm wide, 50 mm core printer roll in the printer compartment and route the paper as indicated. Connect required peripherals via the USB Type-A, RJ12 or RJ45 ports and plug the DC jack into a compatible power source. Ensure the tablet and printer drivers or settings are configured for the docked connections.

Recommendations

Use rolls that match the specified 58 mm width and 50 mm core diameter and keep the magnetic Pogo pin contacts clean and free of debris. Do not force the tablet when docking; align contacts and allow the magnetic connector to seat. For stable network operation use a properly wired RJ45 connection and verify power supply meets device requirements.
