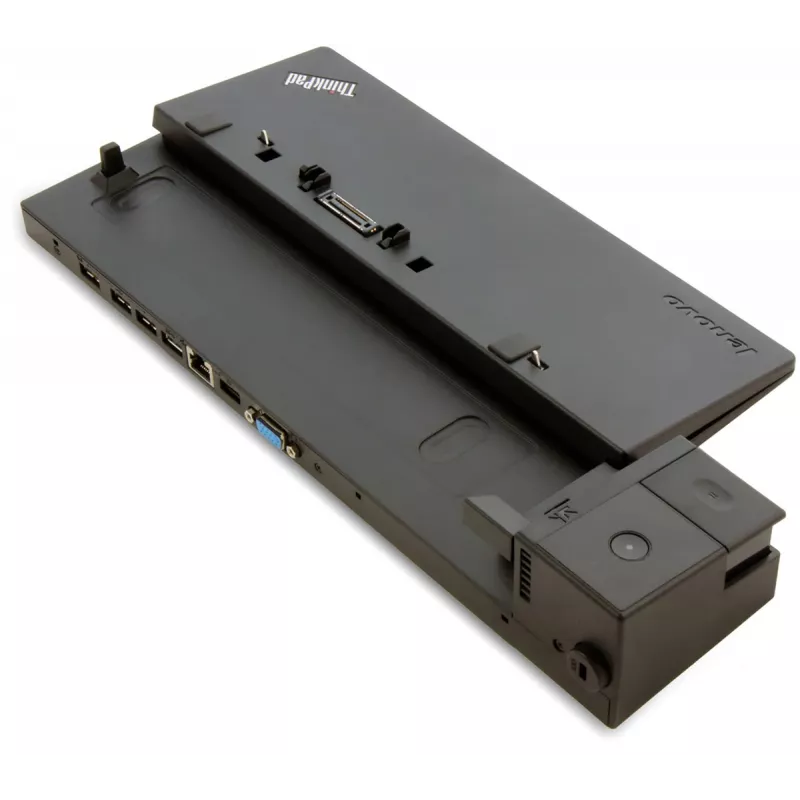

Dokovacia stanica Lenovo Basic Dock 40A00065EU

The Lenovo Basic Dock 40A00065EU is a compact docking station designed for ThinkPad notebooks. It provides power delivery via the included 65W ThinkPad AC adapter and expands connectivity with Gigabit Ethernet, multiple USB ports and a VGA video output. The dock features rear physical alignment for reliable, repeatable docking and a convenient eject button for one-step system removal, while maintaining a smaller desktop footprint compared with larger Series 3 docking stations.

Advantages

The dock offers a simple, reliable way to connect a ThinkPad to power, wired network and common peripherals. One USB 2.0 port supports always-on charging for mobile devices even when the notebook is undocked. Included 65W AC adapter charges the notebook and the physical alignment mechanism ensures consistent, accurate docking. Built-in Gigabit Ethernet supports 10/100/1000 Mbit/s network speeds and enterprise manageability.

Suitable for

• Home and small office users who need basic, reliable docking
• Employees who use a ThinkPad with external displays, keyboard, mouse and printer
• Users who require a compact docking solution with wired Ethernet

Key specifications

• Model: Lenovo Basic Dock 40A00065EU
• Included power: ThinkPad 65W AC adapter
• Ethernet: 10/100/1000 Mbit/s (Gigabit Ethernet, RJ-45)
• USB: 1 × USB 3.0 (USB 3.2 Gen 1) Type-A, 3 × USB 2.0 (one supports always-on charging)
• Video outputs: 1 × VGA (D-Sub)
• Security: security lock hole
• Dimensions (W×D×H): 345 × 162.5 × 55.6 mm
• Weight: 0.82 kg
• Colour: Black

How to use

Place the dock on a stable surface and align the rear physical guide with the notebook docking point. Connect the included 65W ThinkPad AC adapter to the dock and plug the adapter into a power outlet. Attach Ethernet and peripherals (external display via VGA, keyboard, mouse, printer) to the corresponding ports. To undock, press the eject button for one-step system removal. The always-on USB 2.0 port can be used to charge a mobile phone or tablet even when the notebook is not docked.

Recommendations

For best results, use with compatible ThinkPad models and the included 65W ThinkPad AC adapter. Keep ventilation clear around the dock and connect only supported peripherals. For secure installations, use the security lock hole and follow your organisation’s IT guidelines.
