Dokovacia stanica pre notebook PureLink IS270 USB 3.2 Gen 1 Type-C

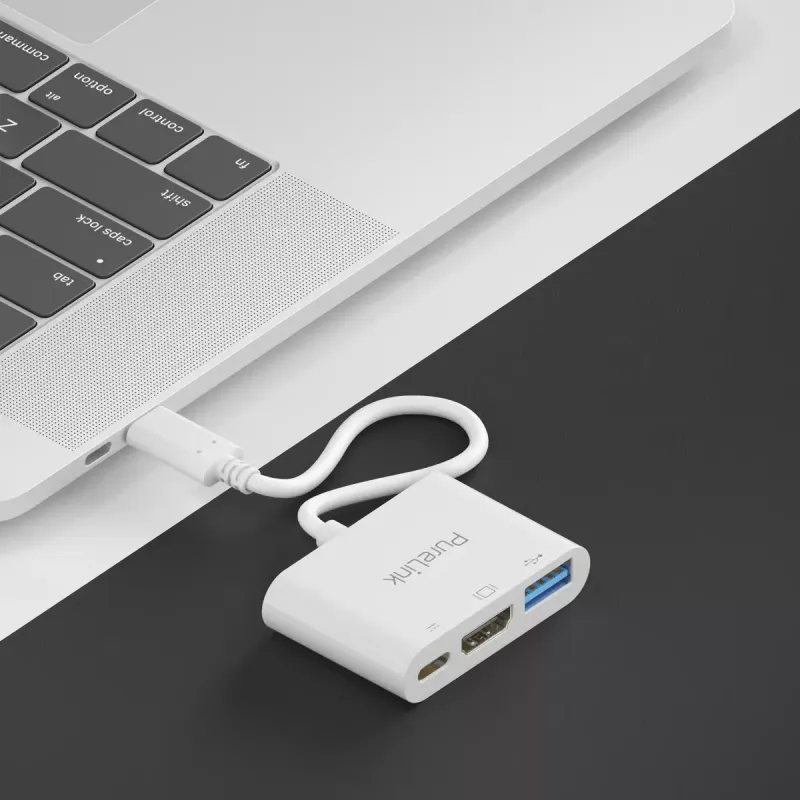

The PureLink IS270 is a compact USB-C docking adapter that connects a USB-C source device such as a laptop or set-top box to an HDMI display while providing additional USB-C and USB-A ports. It supports transmission of audio/video signals up to 4K@30Hz over HDMI, offers a USB 3.1 Gen1 (approx. 300 MB/s) data connection on the USB-A port and up to 60W Power Delivery via USB-C. The adapter features a slim ABS housing and an integrated ~0.10 m portsaver cable to protect the host device's connector.

Advantages

The IS270 delivers a combination of video output, data transfer and device charging in a single compact accessory. Its HDMI output supports up to 4K@30Hz when the connected devices allow it, while the USB-A port provides USB 3.1 Gen1 data speeds. USB-C Power Delivery up to 60W enables charging of compatible laptops and mobile devices. The molded ABS housing and short portsaver cable reduce strain on device sockets and improve durability for portable use.

Suitable for (tasks / use cases)

• Connecting laptops or set-top boxes with USB-C to HDMI displays (TVs, projectors)
• Adding a USB-A port for external drives, keyboards or mice with USB 3.1 Gen1 speeds
• Charging or powering devices via USB-C Power Delivery up to 60W
• Portable work setups where a compact multiport adapter is needed

Key specifications

• Model: PureLink IS270
• Video: HDMI output up to 4K @ 30 Hz (depending on source and display)
• Data: USB-A — USB 3.1 Gen1 (approx. 300 MB/s)
• Power Delivery: USB-C up to 60W
• Cable length: approx. 0.10 m portsaver cable
• Materials: ABS housing, PVC cable
• Dimensions (W×D×H): 58 × 189 × 15 mm (product data)
• Weight: approx. 0.03 kg
• Certifications: FCC, CE

How to use

Connect the IS270 portsaver USB-C plug to the USB-C port of your laptop, tablet or set-top box. Attach an HDMI cable from the adapter’s HDMI output to your display. Plug USB-A peripherals into the USB-A port as needed. If charging is required, connect a USB-C PD power source to the adapter’s USB-C power input (if present on the adapter design) to enable up to 60W Power Delivery to the host or connected devices. Ensure the source device supports Alt Mode over USB-C for video output and check display settings for resolution and refresh rate.

Recommendations

For reliable 4K output, use high-quality HDMI cables and verify that both the source device and display support the required resolution and HDMI bandwidth. Avoid excessive bending at the portsaver cable; the short molded cable is intended to reduce strain but still should be handled gently.
