Dokumentová kamera AVer M11-8MV

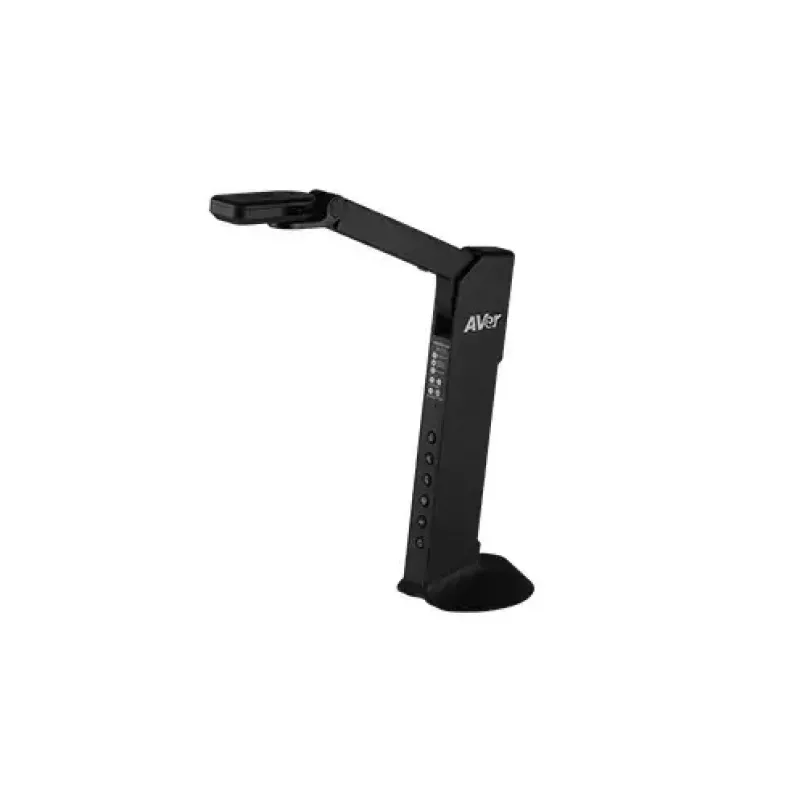

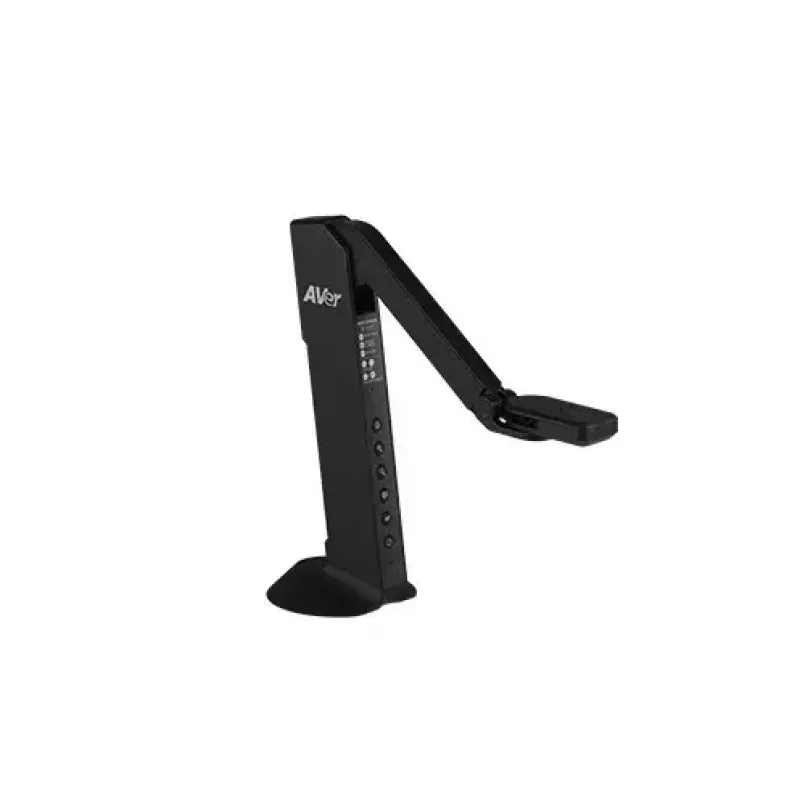

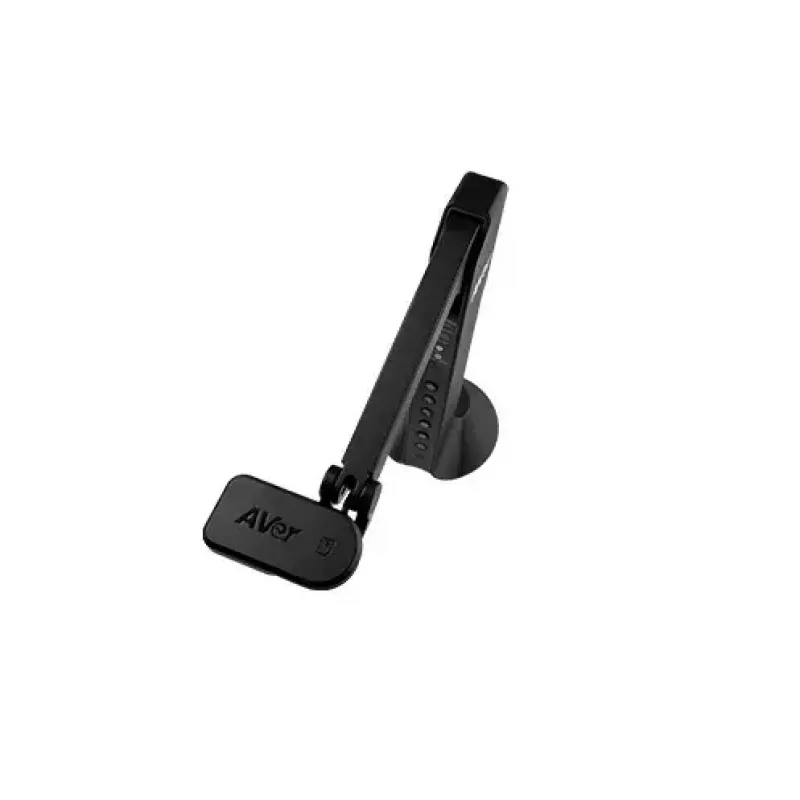

The AVer M11-8MV Document Camera is a compact visualizer designed for classroom and remote teaching. It features an upright, space-saving design with a weighted base and a flexible mechanical arm that provides stable shooting of documents, objects and presenters. With an 8-megapixel sensor, 1920 x 1080 resolution and 20x digital zoom, the M11-8MV captures clear details across an A3 shooting area and supports multiple outputs (HDMI, VGA) plus USB connection for online lessons. Built-in microphone, playback and annotation via a connected mouse plus AVerTouch software support make it suitable for recording and interactive instruction.

Advantages

The M11-8MV combines a durable mechanical arm and a rotatable camera head to deliver steady images from any angle while its weighted base reduces the risk of tipping. High-resolution imaging (1920 x 1080) with 20x digital zoom reveals fine details without requiring students to crowd around. A built-in microphone, MicroSD and USB storage options, and multiple I/O ports (HDMI, VGA, USB) provide flexible capture and connection choices. Integration with AVerTouch software enables one-touch mobile pairing, cloud sync and easy annotation.

Suitable for

• Classroom demonstrations of documents, books and 3D models
• Remote and hybrid lessons using USB connection to a PC or laptop
• Presentations requiring HDMI or VGA output to external displays
• Recording lessons or replaying captured images and videos for review

Key specifications

• Sensor type: CMOS, optical sensor size 25.4 / 3.06 mm
• Resolution: 1920 x 1080 (HD 1080), 8 megapixel effective
• Zoom: 20x digital zoom
• Interfaces: USB 2.0 (Mini-USB to USB Type-A), HDMI, VGA
• Storage: MicroSD support up to 32 GB; USB storage via Type-A
• Power: 5 V supply
• Weight and colour: 0.83 kg, black

How to use

Place the M11-8MV on a stable surface and position the flexible mechanical arm and camera head over the subject within the A3 shooting area. Connect the unit to a computer via USB for online classes, or to a display via HDMI/VGA for in-room presentations. Use the front-panel buttons to adjust zoom and capture images or video; connect a mouse to enable on-screen annotation. Recorded files can be saved to a MicroSD card or USB drive and replayed using the device playback function.

Recommendations

For best image quality, position the camera and subject so the document fills the frame without extreme tilt. Use the weighted base and ensure the arm joints are tightened to prevent drift; store captured files to MicroSD or USB regularly and use AVerTouch to sync and annotate content for later review.
