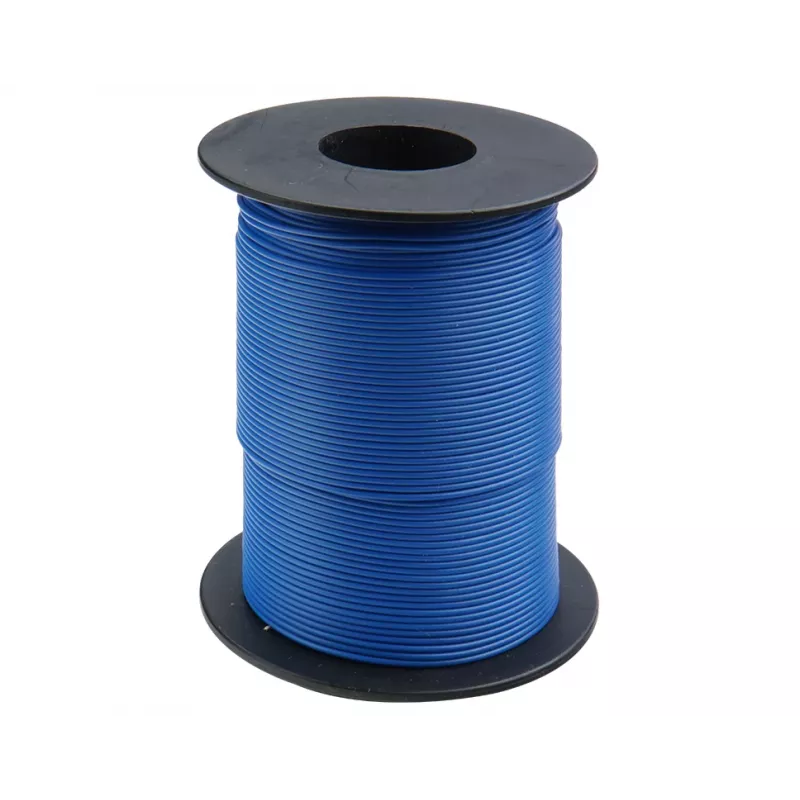

Donau Elektronik 105-2-100 inštalačný vodič 1 x 0,20 mm² modrá 100 m

This 100-meter spool of blue hook-up wire from Donau Elektronik offers a practical solution for internal wiring, prototyping, and hobby electronics. Its tinned copper conductor and PVC insulation provide reliable performance in low-voltage applications.

Highlights

• Single-core stranded wire with 0.20 mm² cross-section (24 AWG)
• Blue PVC insulation for easy identification
• 100 m length on a convenient spool
• Rated for 300 V and temperatures from -30°C to +80°C

In daily use

The wire's flexibility and tinned copper conductor make it easy to solder and route in tight spaces. The blue insulation helps distinguish circuits in multi-wire projects.

Full specifications

• Conductor material: Tinned copper
• Insulation material: PVC
• Conductor cross-section: 0.20 mm²
• AWG equivalent: 24
• Nominal voltage: 300 V
• Temperature range: -30°C to +80°C
• Outer diameter: 1.2 mm
• Max. current rating: 1.5 A
• Conductor resistance: 95 Ohm/km

Final note

A dependable choice for low-voltage electronics work.
