Donau Elektronik 114-88-100 dvojlinka 2 x 0,08 mm² hnedá 100 m

With a conductor resistance of just 245 Ohm/km, this twin stranded wire is tailored for low-voltage signal and model-building applications where clean transmission matters.

Overview

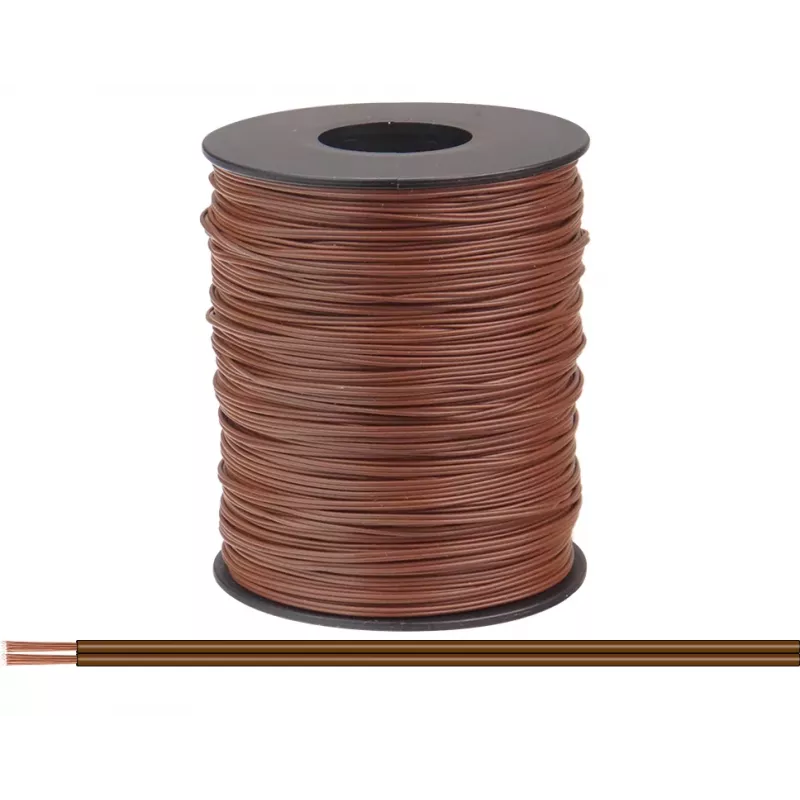

The Donau Elektronik 114-88-100 is a 100-meter spool of parallel twin wire, each core featuring a 0.08 mm² cross-section (28 AWG) made from 7 strands of 0.12 mm tinned copper. PVC insulation in brown protects both conductors, while the flat configuration keeps wiring neat in tight spaces.

What stands out

• Tinned copper conductors resist corrosion and simplify soldering
• Parallel twin layout reduces tangling and eases routing
• Rated for 50 V AC/DC, covering most low-voltage electronics
• Operates from -30 °C to +80 °C for versatile environments

Technical details

• Conductor cross-section: 0.08 mm² per core (28 AWG)
• Conductor construction: 7 x 0.12 mm tinned copper
• Insulation: PVC, brown
• Overall dimensions: approx. 1.6 mm x 0.8 mm
• Length: 100 m on spool
• Rated voltage: 50 V AC/DC
• Temperature range: -30 °C to +80 °C
• Conductor resistance: approx. 245 Ohm/km

Our verdict

A dependable hook-up wire for model builders and electronics hobbyists who need a compact, easy-to-handle twin conductor in a generous 100-meter length.
