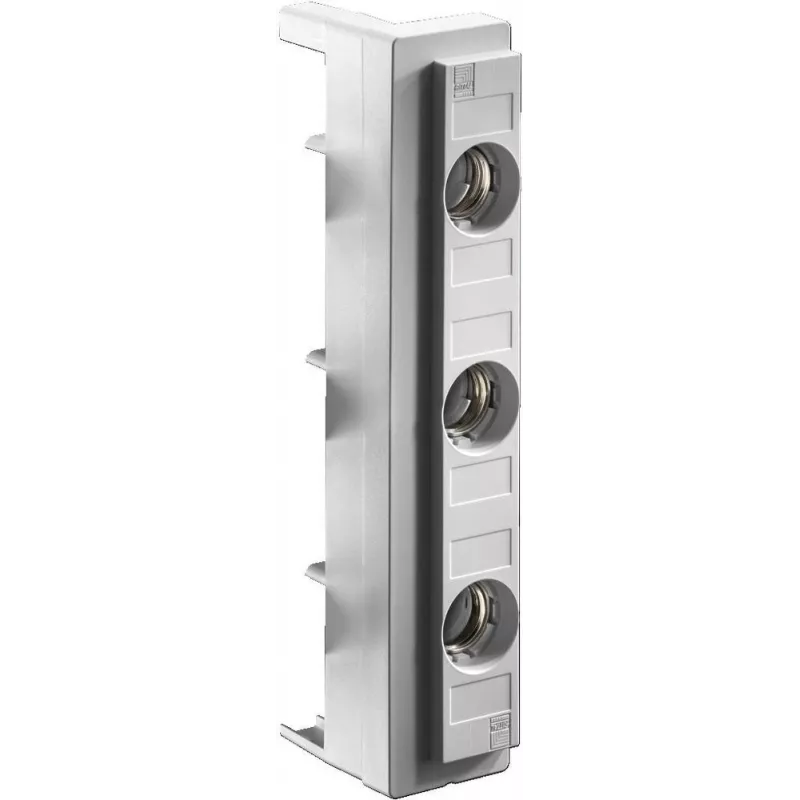

Doska konektorov Rittal SV 3418.030 — puzdro z polyamidu, biela, 700 g, množstvo v balení 10

Rittal SV 3418.030 connector panel is a white polyamide panel intended for installation in electrical and control cabinets. The panel provides a stable mounting surface for circular and rectangular connectors, cable entries and gland plates while offering electrical insulation and mechanical protection. Supplied in packs of 10 and weighing approximately 700 g per piece, this connector panel helps organize and secure cable routing and connection points inside enclosures.

Advantages

The polyamide housing offers robust dielectric strength and resistance to common environmental influences encountered in indoor cabinet installations. Its standardized dimensions and mounting features simplify installation and replacement, and the white colour improves visibility when fitting and servicing connectors. The panel’s design supports additional contact hazard protection, including integration with a cable duct to extend the connection space laterally by 14 mm.

Suitable for

Key specifications

How to use

Fit the connector panel into the designated cut-out or mounting frame inside the enclosure using compatible fasteners and alignment features. Install connectors, gland plates or cable entries into the panel openings following the connector manufacturer’s instructions and applicable wiring standards. Ensure that the panel is correctly seated and that any seals or gaskets are in place to maintain enclosure integrity. If required, fit the side cable duct to obtain the 14 mm extension of the connection space to improve access and separation of conductors.

Recommendations

Verify compatibility of connector sizes with the panel openings before installation and follow local electrical codes for grounding and isolation. Use appropriate torque settings for connector retention and inspect the assembly periodically for signs of mechanical stress or degradation.
