Doska s priechodkami pre káble Rittal 1182.080 nehrdzavejúca oceľ 301x221 mm

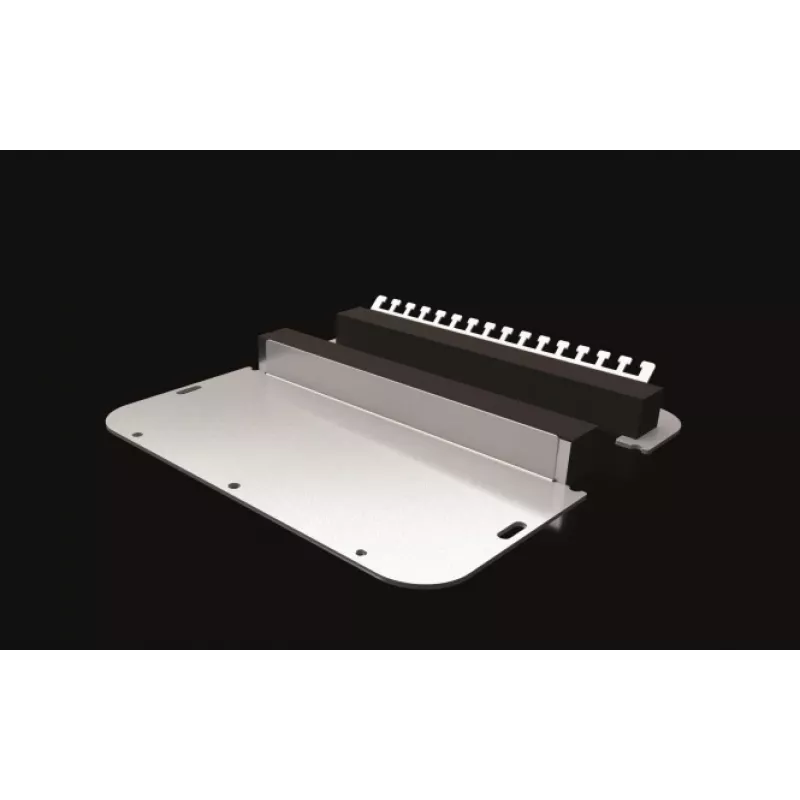

Gland plate Rittal 1182.080, made of stainless steel, is a two-part divided gland plate with a foam rubber cable clamp strip designed for AX enclosures. The 301 x 221 mm plate provides a durable cable entry solution for electrical enclosures, allowing simple insertion of cables with or without connectors. Special drilled holes in the plate ensure automatic potential equalisation during screw fastening.

Advantages

The divided design enables flexible mounting and multiple installation options on the enclosure. The foam rubber cable clamp strip secures cables while accommodating different cable diameters. Made of stainless steel, the plate offers corrosion resistance and mechanical stability. Integrated drilled holes provide automatic equipotential bonding during screw mounting, eliminating the need for separate bolts, clips or earthing leads.

Suitable for

Key specifications

How to use

Mount the two-part gland plate on the enclosure using screw fastening. Insert cables with or without connectors through the appropriate openings and position them within the foam rubber clamp strip. Tighten the screws to secure the plate; the special drilled holes provide automatic potential equalisation during tightening. Ensure cables are routed to avoid strain on connections and that the clamp strip holds the cables firmly in place.

Recommendations

For reliable earthing, tighten screws to the manufacturer's suggested torque and check continuity after installation. Select cable entry positions and clamp strip segments that match the cable diameters to ensure a secure fit and to maintain enclosure protection.
