Dotykový monitor Elo Touch Solutions 2703LM

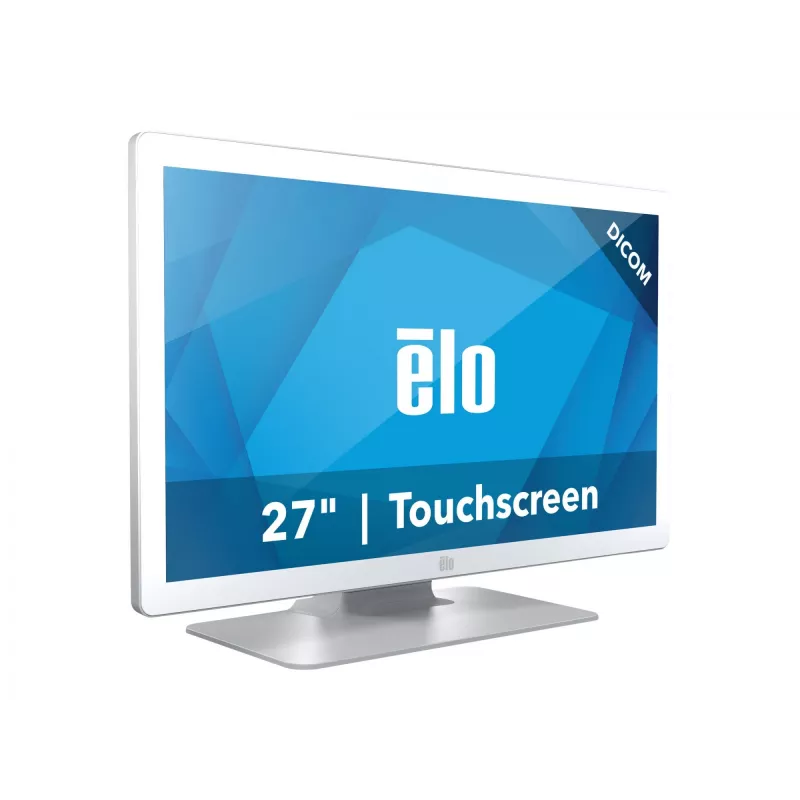

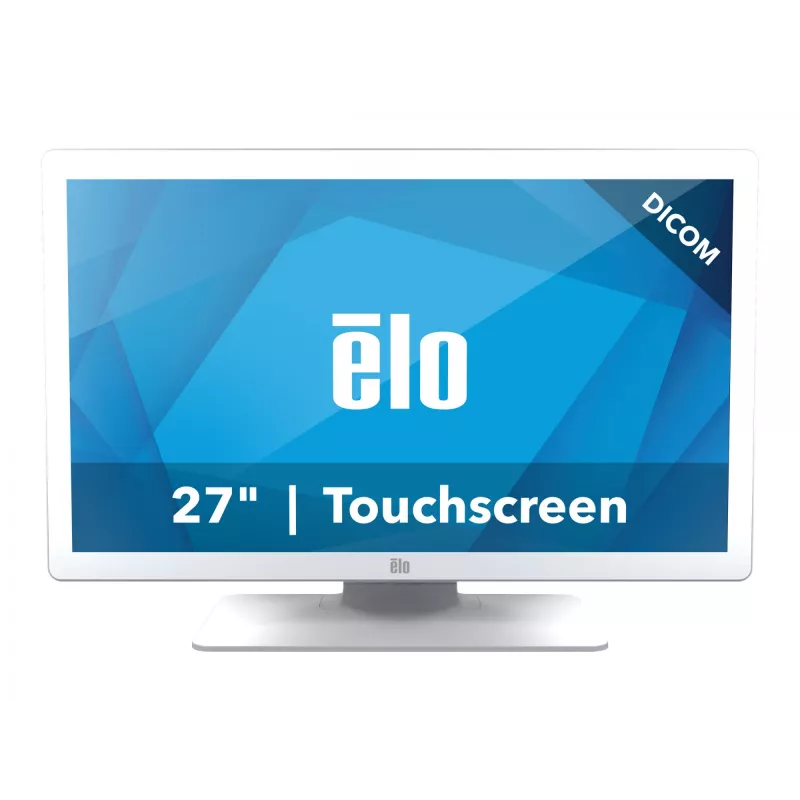

The Elo Touch Solutions 2703LM is a 27-inch medical-grade touchscreen monitor combining Full HD (1920 x 1080) resolution with DICOM Part 14 pre-calibration and a brightness of 270 cd/m². Designed for healthcare settings, this compact white display supports clinical review, EMR documentation, image viewing and integration into medical devices. The touchscreen capability improves interaction for both clinicians and patients while the factory-calibrated panel helps ensure consistent image accuracy according to AAPM secondary display guidelines and the DICOM 14 GSDF curve.

Advantages

The 2703LM provides consistent grayscale rendering out of the box thanks to DICOM 14 compliance and factory calibration, enabling reliable image review. Its 27-inch Full HD panel and 270 cd/m² brightness deliver clear visibility for diagnostic images and clinical information. The touchscreen interface enhances workflow efficiency for tasks such as charting and image manipulation, and the monitor’s design and touch technologies are suitable for integration with a wide range of medical devices.

Suitable for

• EMR documentation and bedside charting
• Viewing X-rays, scans and other medical images with consistent grayscale
• Clinical collaboration and patient engagement
• Integration into medical devices (patient monitors, ventilator/anesthesia displays, medication dispensers)

Key specifications

• Screen size: 27 inches
• Resolution: Full HD 1920 x 1080
• Brightness: 270 cd/m²
• Touch: projected capacitive touchscreen (medical-grade touch technologies)
• Factory calibration: DICOM Part 14 GSDF (AAPM secondary display guidelines)
• Color / finish: white
• Brand / model: Elo Touch Solutions 2703LM (MPN E659793, EAN 0843173135496)

How to use

Mount the 2703LM according to your facility’s installation guidelines or integrate it into compatible medical equipment. Connect video and touch interfaces following the Elo documentation and ensure the monitor remains powered and warmed up for accurate DICOM-calibrated display performance. Use the touchscreen for direct interaction with EMR software, image viewers and device interfaces; standard operating system drivers or Elo-provided drivers enable touch functionality.

Recommendations

For consistent clinical image review, allow the monitor to reach stable operating temperature before performing diagnostic comparisons, follow facility calibration audit procedures as required, and use Elo’s recommended drivers and mounting options when integrating the 2703LM into medical devices or clinical workflows.
