Draka Coax10AD10SAL 75 Ohm koaxiálny kábel 100m kotúč biely PE 60014932

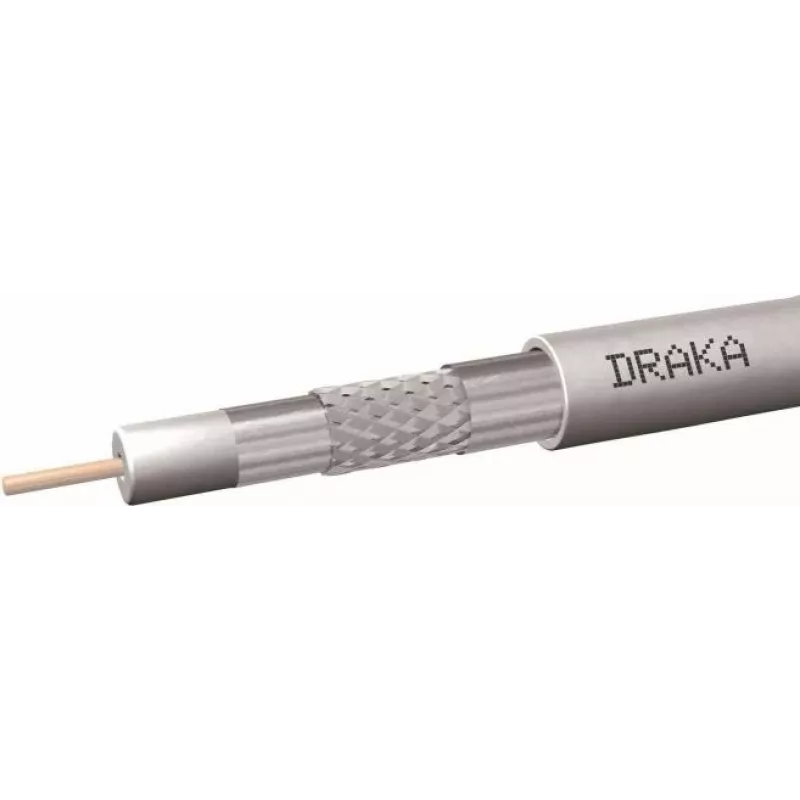

With screening attenuation exceeding 100 dB, this Draka coaxial cable delivers exceptional signal integrity for satellite and cable TV installations. The triple-shielded design, featuring bonded aluminium foil, an 80% coverage copper-tin braid, and an additional unbonded aluminium foil, ensures minimal interference even in demanding environments.

Overview

The Draka Coax10AD10SAL is a high-performance 75 Ohm coaxial cable supplied in a convenient 100-metre ring. Its solid copper inner conductor (1.0 mm diameter) and foamed polyethylene dielectric (4.65 mm diameter) provide low attenuation and stable impedance across the frequency range. The white polyethylene jacket is suitable for outdoor use, with an operating temperature range of -30°C to +70°C.

What stands out

• Triple shielding for superior screening attenuation (>100 dB)
• Low loss: 7.0 dB/100m at 100 MHz, 22.5 dB/100m at 1000 MHz
• Return loss >20 dB (5-1000 MHz) for excellent signal reflection performance
• Robust PE jacket for outdoor durability

Technical details

• Impedance: 75 Ohm
• Inner conductor: Copper, 1.0 mm diameter
• Dielectric: Foamed PE, 4.65 mm diameter
• Outer diameter: 6.8 mm
• Shielding: Bonded aluminium foil + copper-tin braid (80% coverage) + unbonded aluminium foil
• Attenuation: 7.0 dB/100m @ 100 MHz, 22.5 dB/100m @ 1000 MHz
• Return loss: >20 dB (5-1000 MHz)
• Operating temperature: -30°C to +70°C
• Applications: Outdoor, satellite, DVB-T, cable TV

Our verdict

Professional-grade coaxial cable with outstanding shielding and low attenuation, ideal for reliable long-distance signal distribution.
