Drôtový konektor DeLOCK 66718 D-Sub HD 44-pólový čierny strieborný

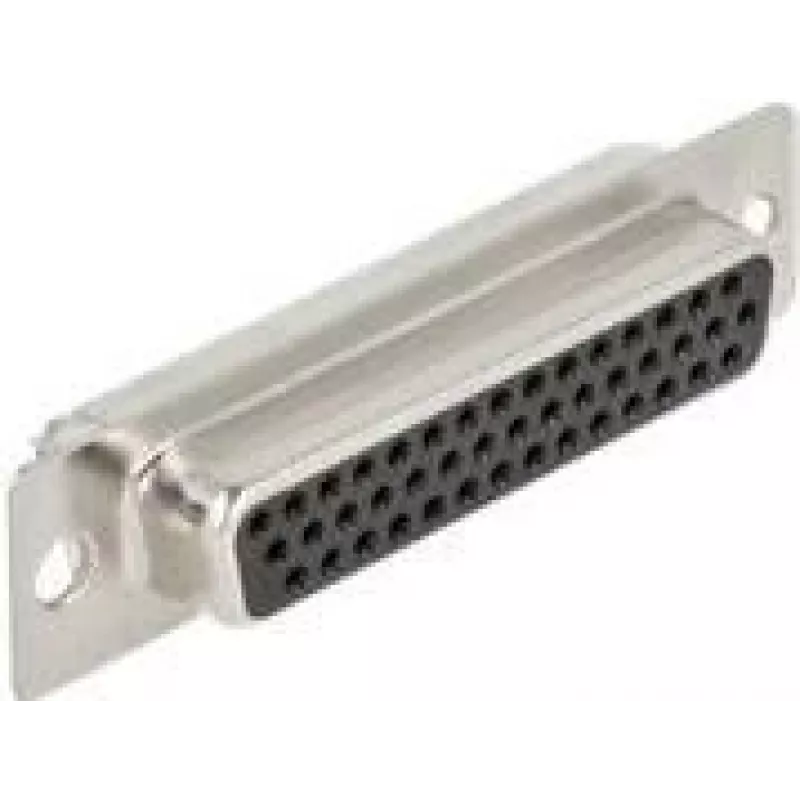

The DeLOCK 66718 wire connector is a D-Sub HD 44-pin female connector designed for reliable signal and data connections in compact electronic assemblies. Finished in black and silver, the connector has a narrow profile with dimensions of 12.5 mm (width) × 53 mm (depth) × 10.7 mm (height). Each polybag contains two identical connectors suitable for use where a D-Sub high-density 44-pin female interface is required.

Advantages

This DeLOCK D-Sub HD connector offers a high-density 44-pin layout in a compact housing, saving board and panel space while maintaining a standard pin count for compatibility. The black and silver finish provides a neutral appearance appropriate for a range of equipment designs. Supplied as a pair in individual packaging, the connectors are ready for immediate installation or inventory stocking.

Suitable for (tasks / use cases)

• Connection of multi-signal D-Sub HD interfaces in industrial and consumer electronics
• Replacement or assembly of 44-pin female D-Sub connectors on panels or cables
• Prototyping and small-volume production where compact high-density connectors are needed

Key specifications

• Connector type: D-Sub HD 44-pin, female
• Colour: Black housing with silver contacts/trim
• Dimensions: 12.5 mm (W) × 53 mm (D) × 10.7 mm (H)
• Package contents: 2 connectors in a polybag
• Country of manufacture: China

How to use

Identify the mating male D-Sub HD 44-pin counterpart and align the connector carefully before seating to ensure all pins engage correctly. Secure the connector according to the mechanical mounting or cable termination method appropriate for your application; follow any equipment-specific grounding and shielding practices. For soldering or crimping, use compatible tools and procedures recommended for D-Sub contacts to ensure reliable electrical contact and mechanical stability.

Recommendations

Store connectors in their polybag until installation to minimise contamination. Verify pin assignments and mating orientation before final assembly to prevent damage to pins or equipment. Use appropriate strain relief and cable management when integrating these connectors into assemblies to extend service life.
