Držiak Axis 01538-001 nerezová oceľ univerzálny 45kg

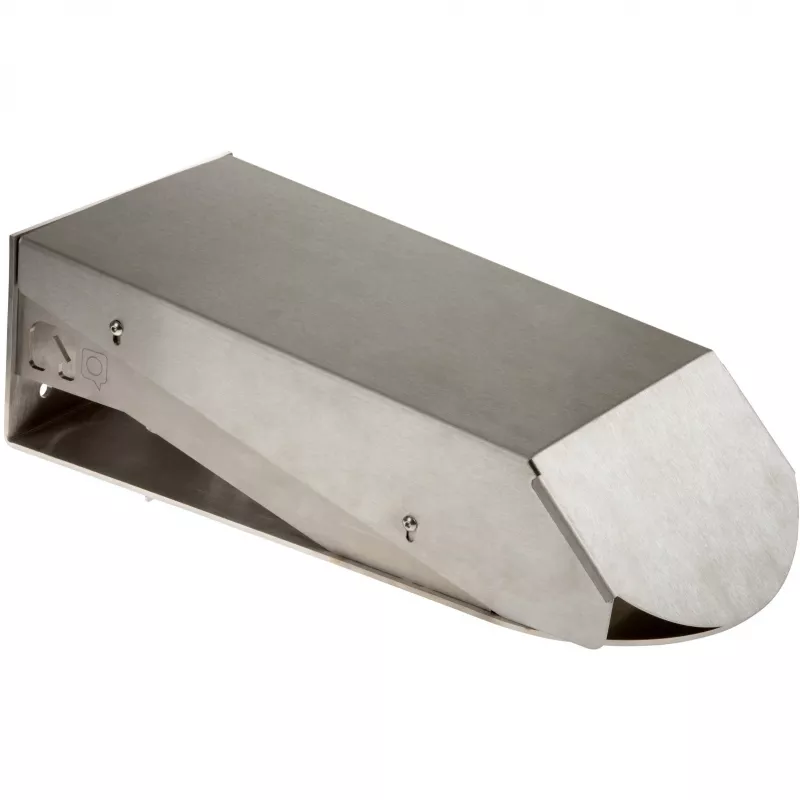

Wall Mount ExCam XPT is designed for ExCam XPT Q6055 Explosion-Protected PTZ Network Camera. The mount features a two-part stainless steel construction and includes a protective hood that shields cable glands in accordance with IEC 60079-14 and prevents direct splash water on exposed cables. The Axis 01538-001 Stainless Steel Universal 45kg mount supports robust, corrosion-resistant installations in onshore, offshore, marine, and heavy industrial environments.

Advantages

The stainless steel two-piece design provides strength and corrosion resistance while allowing straightforward assembly. The included protective hood secures cable glands and reduces exposure to splash water, helping to maintain cable integrity. Rated to support up to 45 kg, the mount accommodates a wide range of PTZ and fixed network cameras. Compact external dimensions (143 mm width, 464 mm depth, 220 mm height) make it suitable for installations where space is limited.

Suitable for

• Explosion-protected PTZ cameras such as ExCam XPT Q6055
• Marine and offshore camera installations
• Onshore and heavy industrial surveillance
• Cameras and equipment up to 45 kg

Key specifications

• Brand: AXIS
• Model / MPN: 01538-001
• Material: Stainless steel
• Maximum supported weight: 45 kg
• Dimensions (W × D × H): 143 × 464 × 220 mm
• EAN: 7331021064706

How to use

Mount the two stainless steel parts to a suitable vertical surface following the camera and mount manufacturer instructions. Fit the camera to the bracket and secure it according to its mounting pattern, ensuring the total weight does not exceed 45 kg. Route cables through the protective hood and connect cable glands per IEC 60079-14 guidance to maintain explosion-protection and reduce splash exposure. Tighten all fasteners to the recommended torque values for a secure installation.

Recommendations

Use corrosion-resistant fasteners and periodic inspections in marine or offshore environments. Verify compatibility with the ExCam XPT Q6055 mounting pattern and ensure cable glands are certified for the installation area.
