Držiak Axis 02433-001 príslušenstvo k bezpečnostnej kamere čierny strieborný

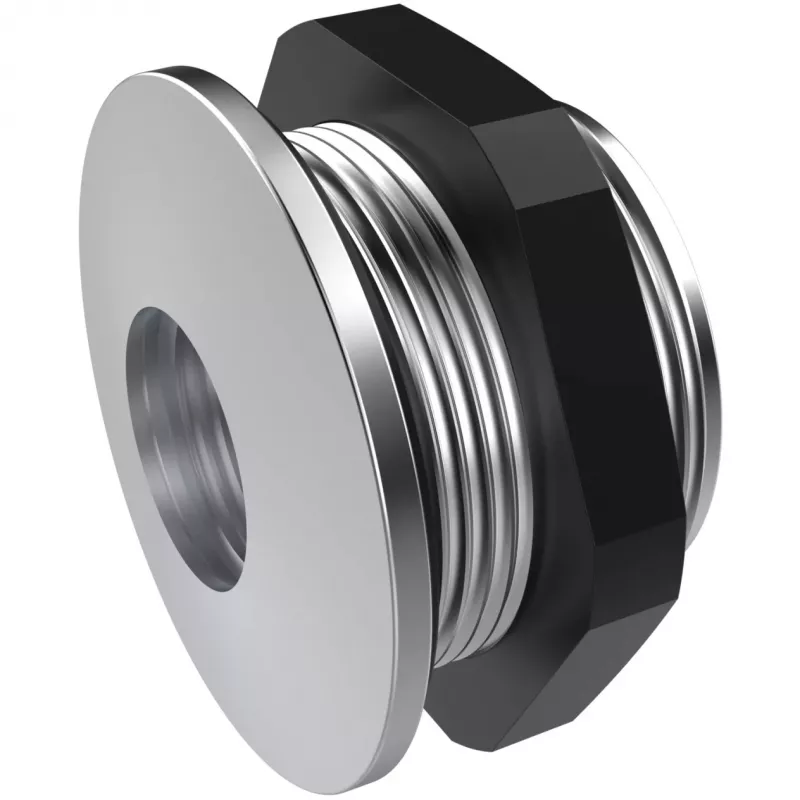

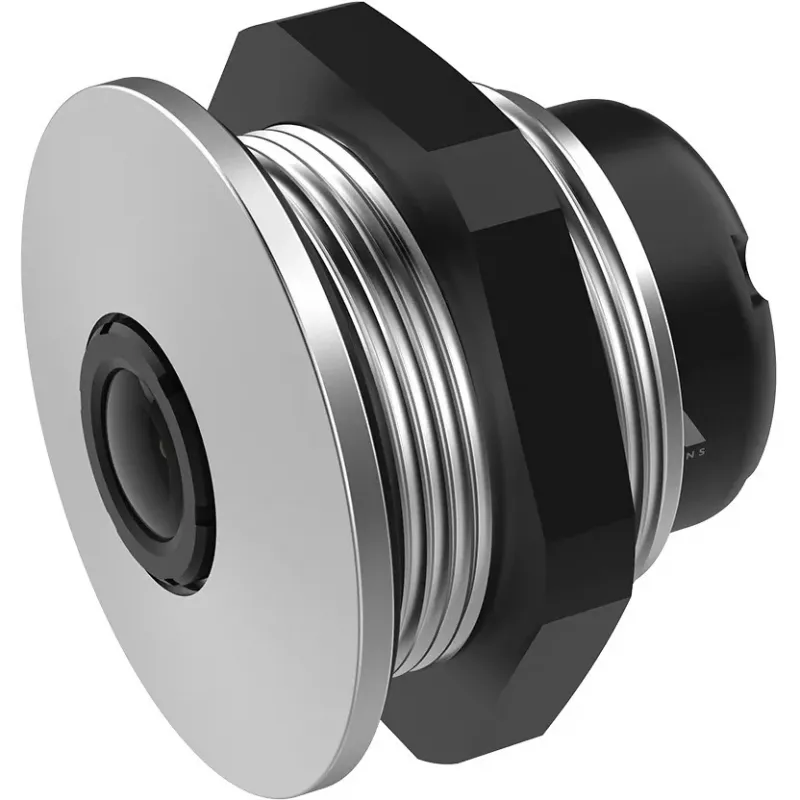

This recessed mount is designed to attach to the front of AXIS F2105-RE Standard Sensor Unit and AXIS F2135-RE Fisheye Sensor Unit. It fits panels and surfaces made of wall material, glass, plastic or metal with thickness from 1 to 15 mm (0.04 to 0.6 in). The mount is made of aluminum in a silver finish and provides a sealed installation that prevents water ingress into the wall or panel.

Advantages

The mount offers a compact recessed install that preserves a neat appearance while securing the sensor unit. Constructed from aluminum for corrosion resistance and durability, it helps prevent water from leaking into the mounting surface. Its dimensions suit a variety of thin panels and it is compatible with the specified Axis sensor units.

Suitable for

• AXIS F2105-RE Standard Sensor Unit
• AXIS F2135-RE Fisheye Sensor Unit
• Mounting on walls, glass, plastic or metal panels 1–15 mm thick

Key specifications

• Material: Aluminum
• Color/finish: Silver
• Compatible models: AXIS F2105-RE, AXIS F2135-RE
• Panel thickness supported: 1–15 mm (0.04–0.6 in)
• Manufacturer part number (MPN): 02433-001
• EAN: 7331021077249

How to use

Position the recessed mount over the opening in the panel or wall where the sensor unit will sit. Insert the front part of the AXIS F2105-RE or AXIS F2135-RE into the mount and secure it by screwing the mount to the sensor unit as intended by the manufacturer. Ensure the panel thickness is within the supported range before installation and tighten screws to provide a sealed fit.

Recommendations

Verify compatibility with your AXIS sensor unit model and confirm panel thickness (1–15 mm). For outdoor installations or exposed locations, check that surrounding seals and the panel finish are suitable to maintain water resistance. Follow Axis installation instructions for torque and screw type.
