Držiak dosky DeLOCK 107 mm pre lištu DIN 10 cm dlhý

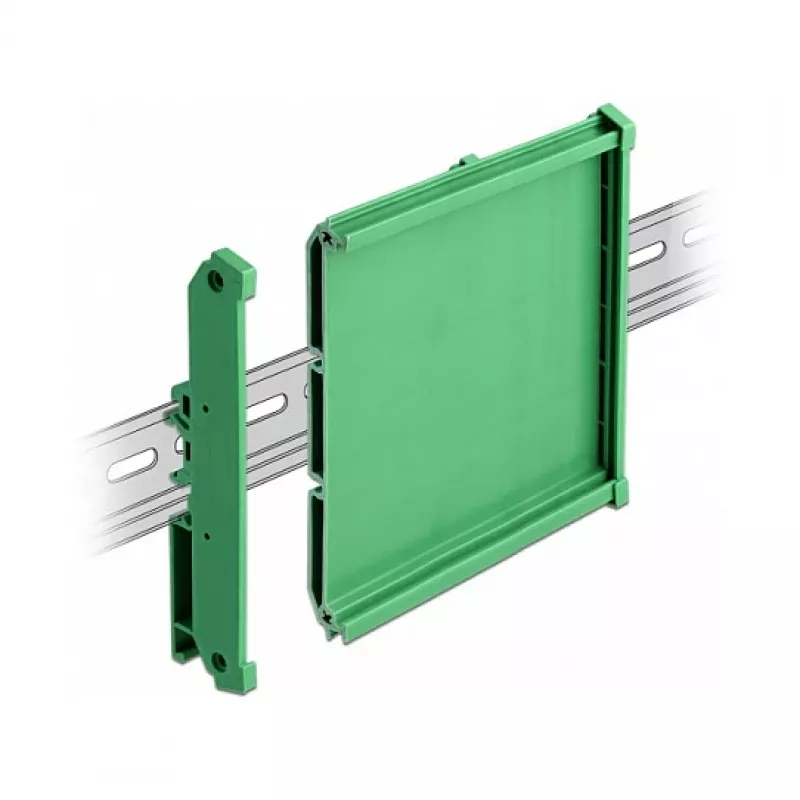

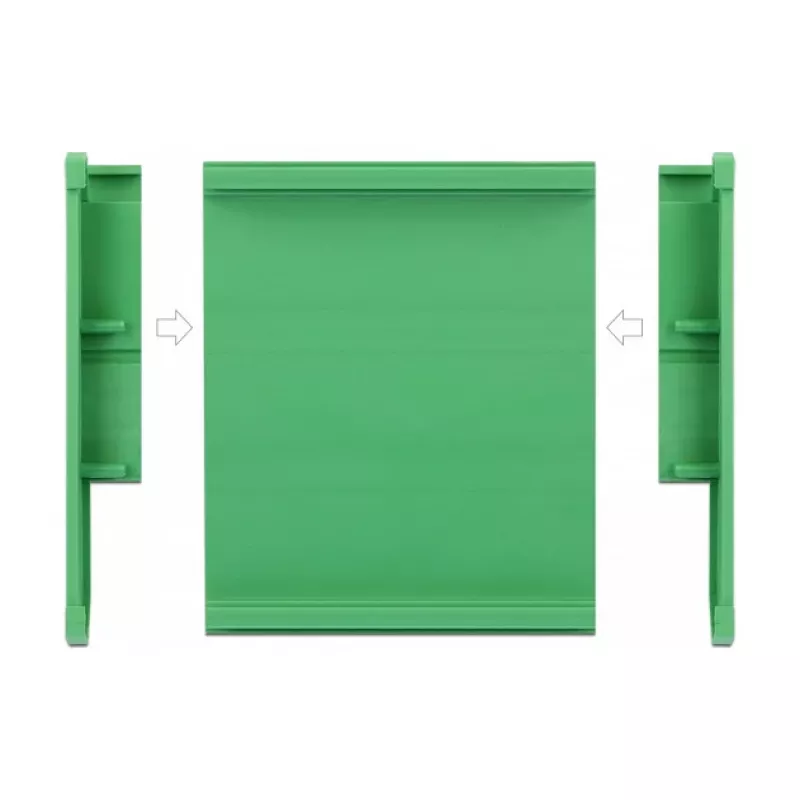

The DeLOCK board holder is designed to secure circuit boards with a width of 107 mm and to mount them on standard 15 mm or 35 mm DIN rails. Made of durable green plastic, the holder measures approximately 10 cm in length and can be cut to shorter lengths to fit different installation requirements. After shortening, the end caps can be reattached to protect the board edges and provide a finished installation.

Advantages

The holder provides a simple and stable mounting solution for circuit boards on DIN rails, combining a compact 10 cm length with the ability to shorten the profile for custom installations. Its plastic construction resists corrosion and is lightweight, while the replaceable end caps restore a neat finish after trimming.

Suitable for

• Mounting PCBs or small circuit boards with a 107 mm width on DIN rails
• Control cabinets and industrial enclosures where space and modular mounting are required
• Projects requiring custom-length board supports by shortening the holder

Key specifications

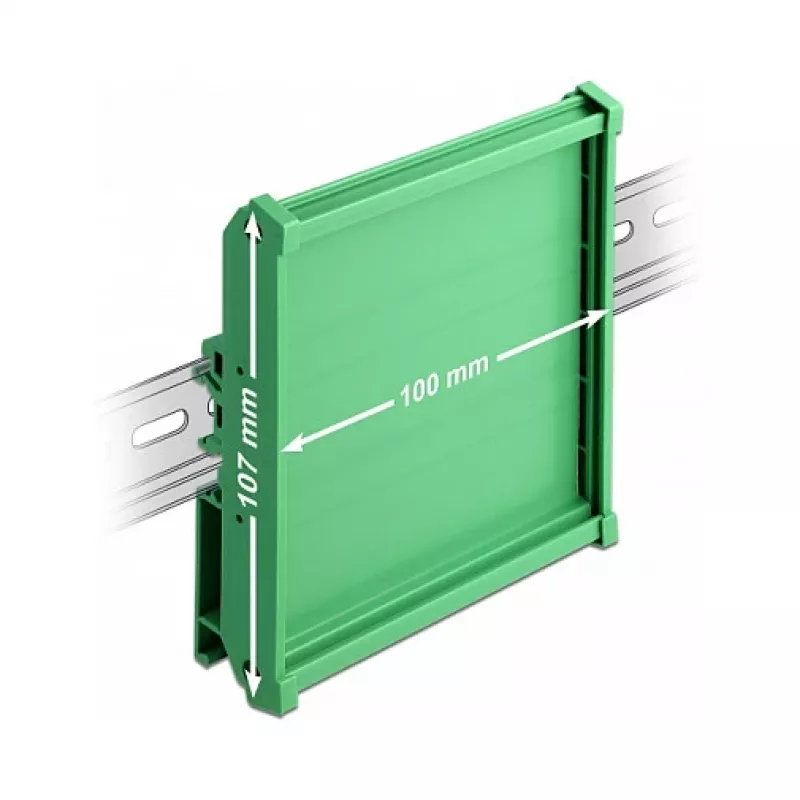

• Compatible board width: 107 mm
• DIN rail compatibility: 15 mm and 35 mm
• Length: approximately 10 cm
• Material: plastic
• Colour: green
• Brand: DELOCK, MPN: 66573, EAN: 4043619665730

How to use

Measure the required length for your installation and, if needed, shorten the holder using a suitable cutting tool. Fit the board into the holder so that the PCB sits securely along the 107 mm support width and then mount the holder onto a 15 mm or 35 mm DIN rail according to standard DIN-rail installation practice. After shortening, place the two end caps back onto the trimmed ends to protect the edges and complete the installation.

Recommendations

When shortening the holder, wear appropriate personal protective equipment and ensure cut edges are deburred before reattaching the end caps. Confirm the holder and mounted board do not obstruct adjacent components on the DIN rail and verify that the chosen DIN rail size (15 mm or 35 mm) matches your enclosure’s rail.
