Držiak dosky plošných spojov DeLOCK 66572 107 mm pre lištu DIN

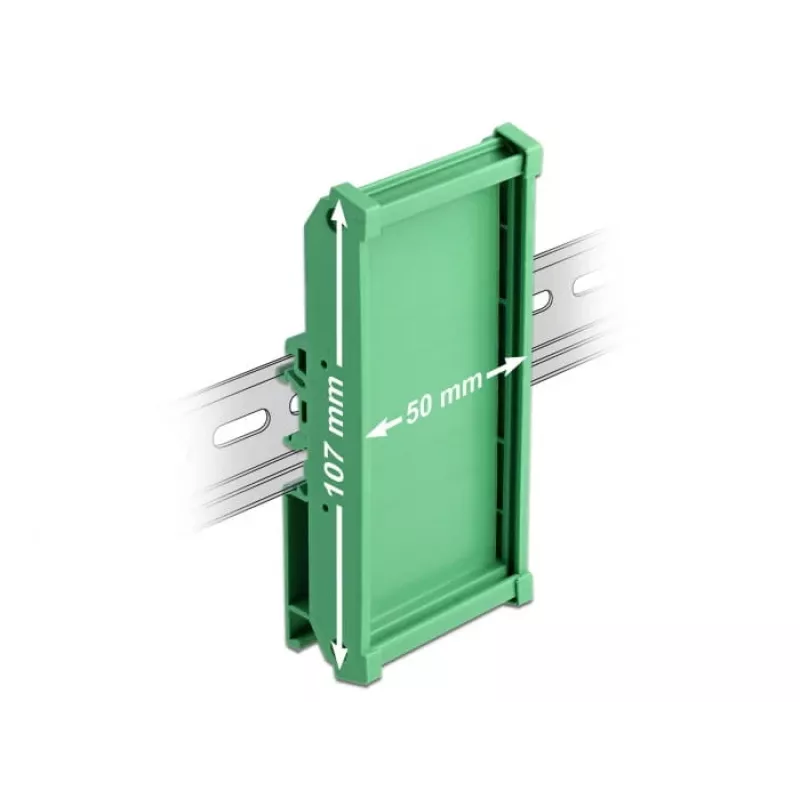

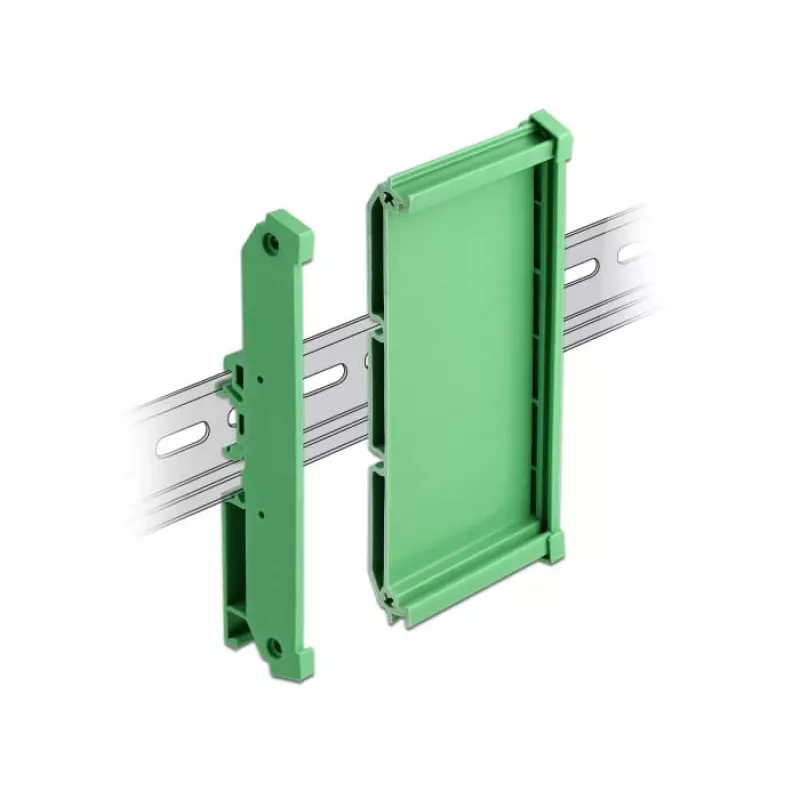

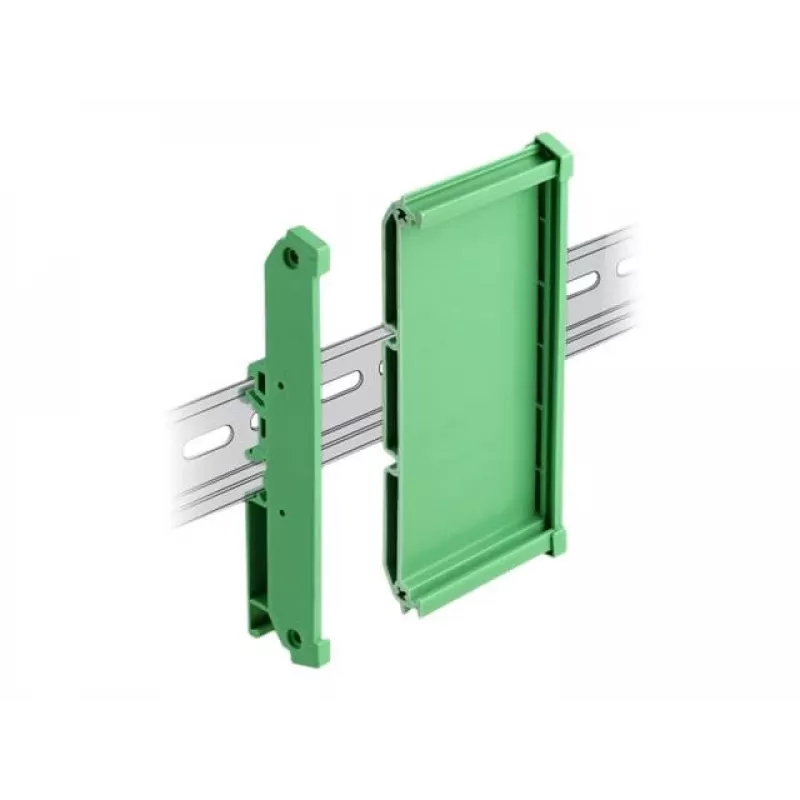

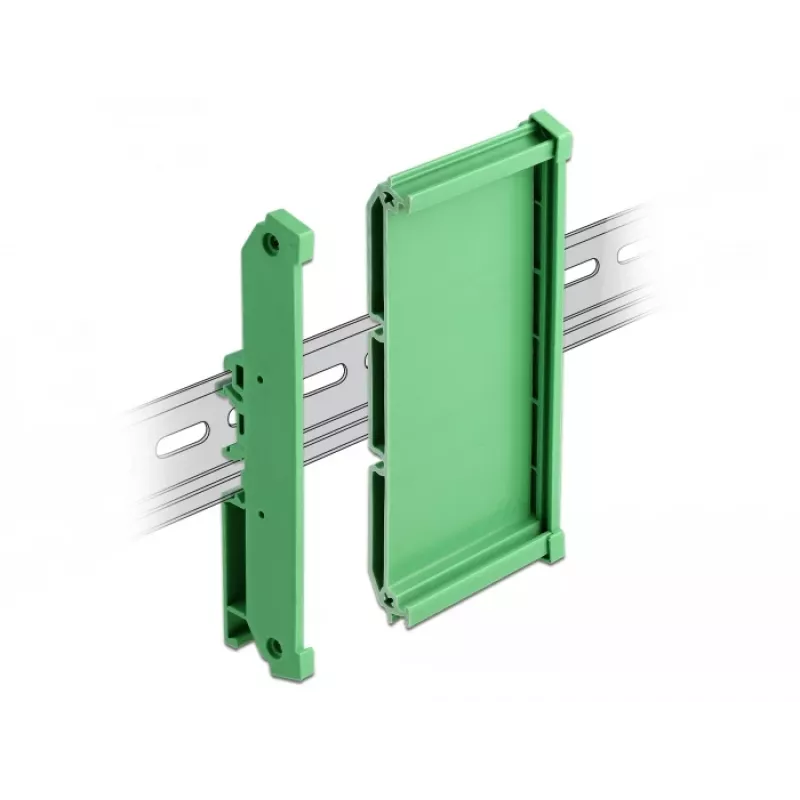

The DeLOCK Board Holder 66572 is a compact mounting accessory for DIN rails, designed to hold circuit boards with a width of 107 mm. Made of durable green plastic, the holder supports installation on either 15 mm or 35 mm DIN rails and can be shortened to fit custom board lengths. Two end caps can be reattached after shortening to provide finished edges and continued secure support.

Advantages

This board holder offers a stable and space-efficient solution for organizing circuit boards inside electrical cabinets. Its compatibility with both 15 mm and 35 mm DIN rails makes it versatile for different installations, while the ability to shorten the profile allows adaptation to various board sizes. The reattachable end caps restore clean edges after trimming, and the plastic construction provides electrical insulation and corrosion resistance.

Suitable for

• Mounting a single circuit board of 107 mm width on a DIN rail
• Electrical cabinets and control panels in industrial or commercial settings
• Situations requiring custom-length holders by trimming the profile

Key specifications

• Model: DeLOCK 66572
• Board width supported: 107 mm
• Mounting: 15 mm or 35 mm DIN rail
• Material/colour: green plastic
• MPN: 66572
• EAN: 4043619665723

How to use

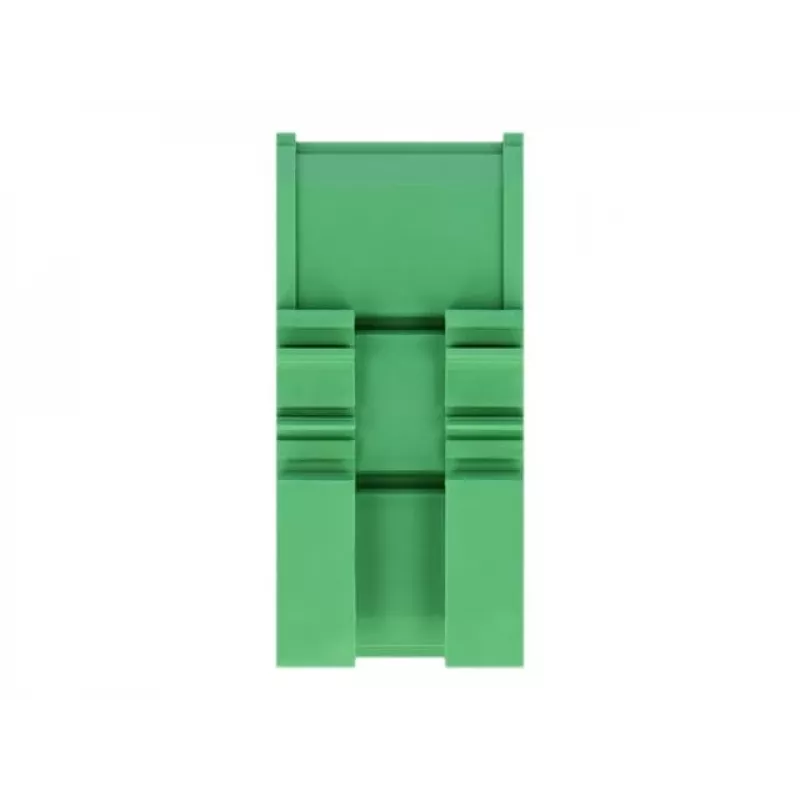

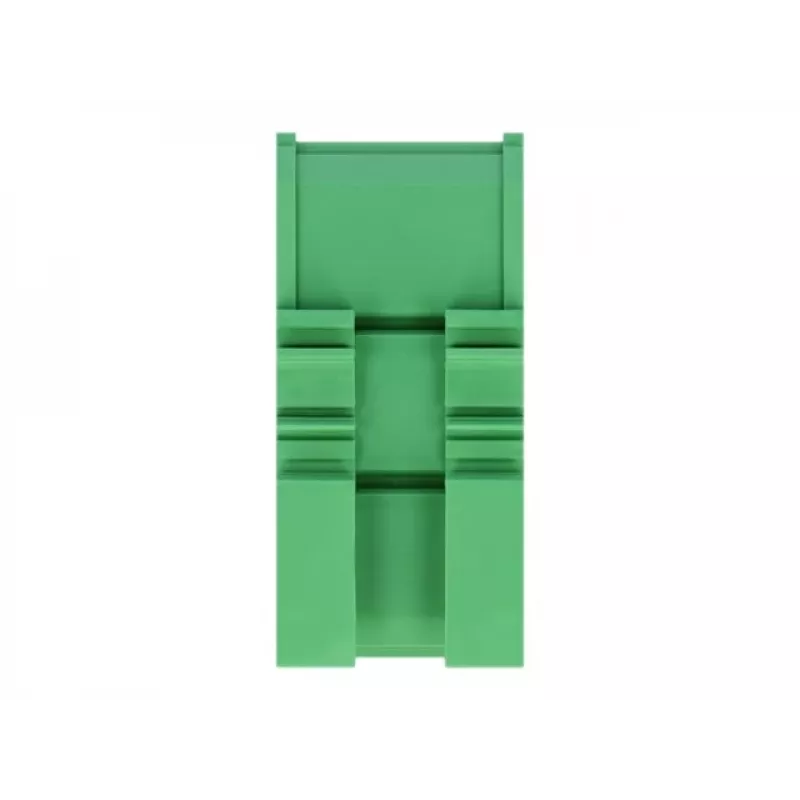

Attach the board holder to a 15 mm or 35 mm DIN rail by snapping it into place. Insert the circuit board into the holder so that the board width (107 mm) is secured. If a different length is required, shorten the profile to the needed size using an appropriate cutting tool, deburr cut edges, and then refit the two end caps to finish the trimmed ends. Ensure the holder is firmly seated on the DIN rail before powering any connected circuitry.

Recommendations

For safe installation, switch off power to the cabinet before fitting or adjusting the board holder. Use suitable hand tools for trimming and wear personal protective equipment. Verify that the trimmed holder still provides sufficient support for the board and that the end caps are fully engaged.
