Držiak na stôl InLine 23159B pre TFT do 32 palcov, max. 9 kg

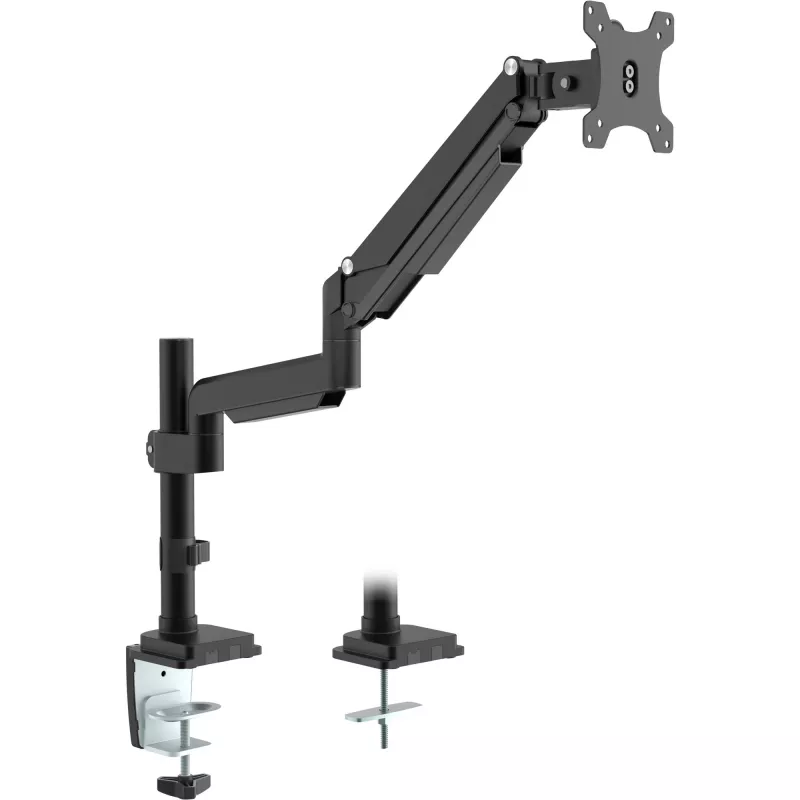

The InLine Table mount 23159B for TFT up to 32 inch max 9kg is a compact desk clamp mount designed for single flat-panel displays. It supports TFT screens with VESA patterns from 75 x 75 mm to 100 x 100 mm and is specified for displays up to 32 inches and a maximum weight of 9 kg. The mount has integrated height adjustment and offers wide swivel and tilt ranges to position a display for improved ergonomics while keeping a minimal footprint on the work surface. Its black finish provides a neutral appearance suitable for offices, home workstations, retail counters, and public information points.

Advantages

The desk clamp design secures the mount to tabletops without requiring through-hole installation, allowing straightforward attachment and removal. Height adjustment lets users set the display to eye level for reduced neck strain. The swivel angle range of -90 to 90 degrees and tilt angle range of -90 to 90 degrees permit flexible screen orientation for multiple viewing positions and shared-screen scenarios. Compatibility with standard VESA sizes 75 x 75 mm and 100 x 100 mm ensures the mount fits a wide range of TFT monitors. The black colour offers discreet integration into existing interior schemes.

Suitable for

• Individual workstations and home offices where a compact clamp mount is required
• Reception desks and retail counters for customer-facing displays
• Small meeting rooms or shared desks where screen position must be adjusted frequently
• Public information terminals and POS installations with VESA-compatible TFT screens

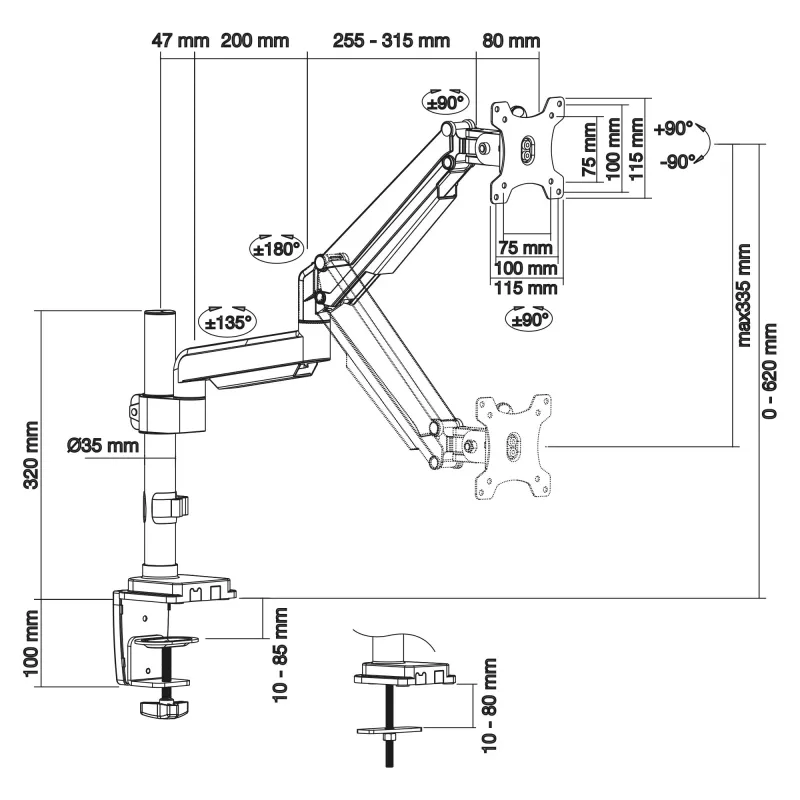

Key specifications

• Supported VESA patterns: 75 x 75 mm to 100 x 100 mm
• Maximum display size: up to 32 inches
• Maximum supported weight: 9 kg
• Number of displays supported: 1
• Height adjustment: integrated vertical adjustment on mount arm
• Swivel range: -90° to 90°
• Tilt range: -90° to 90°
• Mounting method: desk clamp
• Product colour: black

How to use

Attach the clamp to a suitable table edge following the included mounting instructions, ensuring the desk thickness is compatible with the clamp profile. Secure the clamp firmly, then connect the monitor to the VESA plate using the appropriate screws for the display’s VESA pattern. Use the height adjustment feature to position the screen at comfortable eye level, and rotate or tilt the display within the specified swivel and tilt ranges to achieve the desired viewing angle. Check all fastenings after initial installation and periodically during use to maintain stability.

Recommendations

Use the mount only with displays that fall within the specified maximum weight and VESA compatibility. Ensure the desk surface and clamp contact area are strong enough to support the load. Avoid exceeding the stated tilt and swivel ranges, and verify screw tightness after repositioning the screen.
