Držiak na TV Reflecta FLEXO 55-4040T

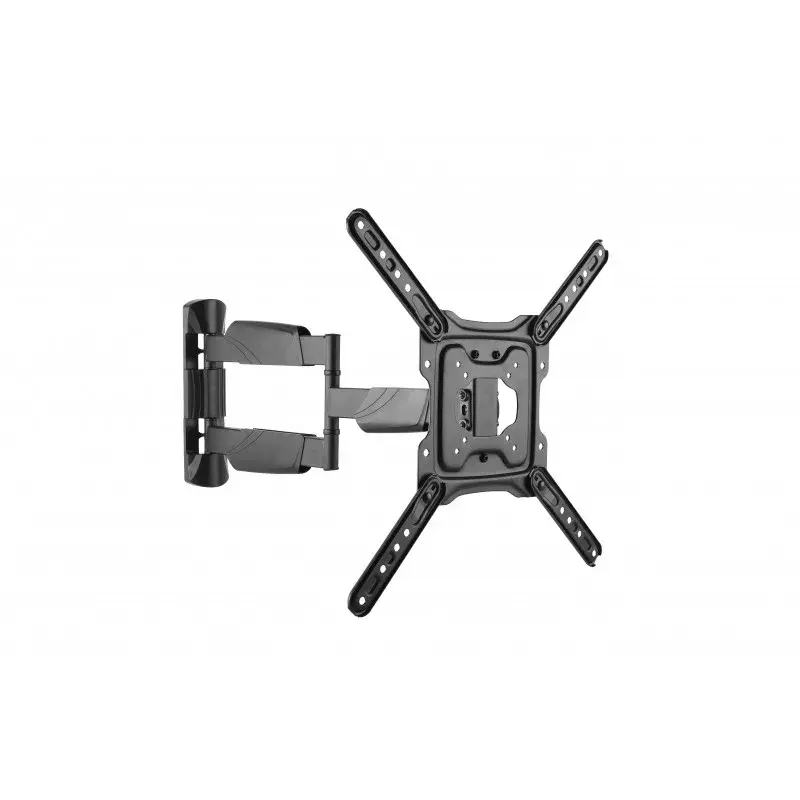

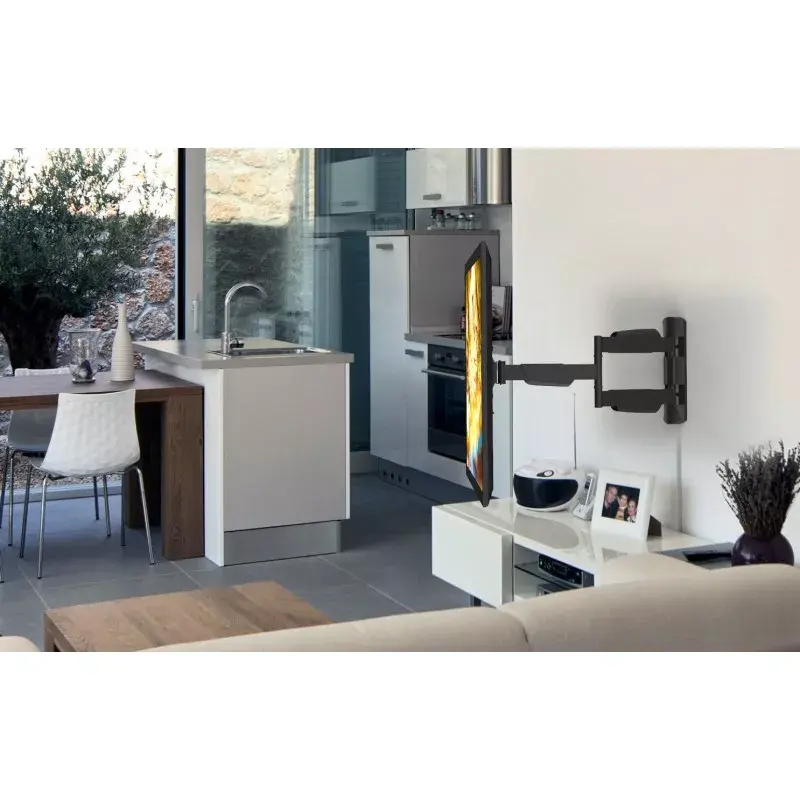

The reflecta FLEXO 55-4040T is a full-motion TV wall mount designed for most 23"–55" LED and LCD flat-panel televisions with a maximum weight of 35 kg. The pre-assembled mount includes integrated cable management, decorative covers and a built-in level adjustment to ensure a tidy, correctly aligned installation. It is compatible with VESA patterns up to 400 x 400 mm.

Advantages

The FLEXO 55-4040T offers wide movement with an extendable arm that reaches up to 615 mm, combined tilt and swivel adjustment for flexible viewing angles, and a compact, black finish that suits modern interiors. Integrated cable routing and decorative covers keep cables concealed, while the 3° clockwise and counterclockwise level adjustment lets you fine-tune the screen alignment after mounting.

Suitable for

• Mounting 23"–55" LED/LCD TVs
• Setups that require tilt and swivel adjustment for optimal viewing
• Rooms where cable management and a neat appearance are important
• VESA-compatible displays up to 400 x 400 mm and up to 35 kg

Key specifications

• Supported screen size: up to 55"
• Maximum weight capacity: 35 kg
• VESA compatibility: 75 x 75 mm up to 400 x 400 mm
• Tilt range: -15° to +5°
• Swivel range: up to 90° left/right
• Maximum extension: 615 mm
• Colour: Black

How to use

Attach the wall plate to a suitable load-bearing surface following the included manual and secure the mount using appropriate fixings for your wall type. Mount the TV to the bracket using the matching VESA holes and tighten all fasteners. Use the arm to extend, swivel and tilt the screen to the desired viewing position. Route cables through the integrated management channels and snap on the decorative covers for a clean finish. After installation, use the built-in level adjustment to correct up to 3° clockwise or counterclockwise if necessary.

Recommendations

Verify the TV weight and VESA pattern before installation, and use wall fixings suitable for the wall material. Do not exceed the specified 35 kg load capacity and ensure the bracket is mounted to a structurally sound surface.
