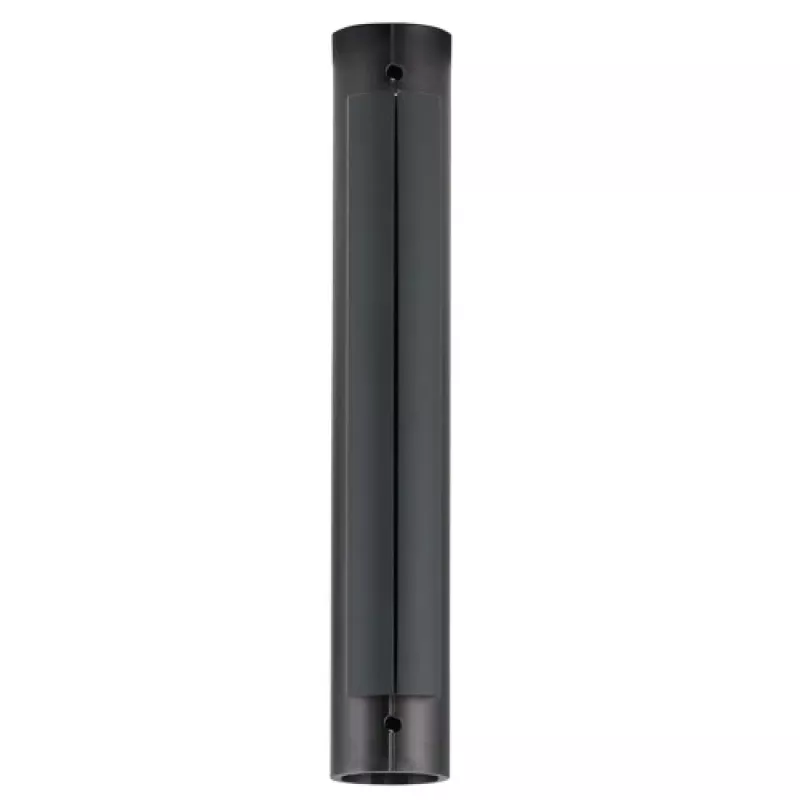

Držiak projektora Chief CPAE150 čierny maximálna hmotnosť 226,7 kg

The Chief CPAE150 black projector mount supports a maximum weight of 226.7 kg and has a depth of 150 mm. Weighing approximately 3.02 kg, this ceiling column is designed for compatibility with Chief ceiling plates and dedicated pin connection CPA plates, providing a professional appearance and flexible installation options.

Advantages

External cable management with an inlay style lets cables be quickly routed or removed for service without pre-routing. The column can be cut to length and re-drilled to suit custom installations. Grooves on the outer surface provide an aesthetic finish and act as drill guides, and the product ships in pre-cut lengths with three pre-drilled thru holes in each column end for faster installation.

Suitable for

• Mounting heavy-duty projectors in commercial or institutional environments
• Installations requiring external, serviceable cable routing
• Custom ceiling drop lengths where on-site cutting or re-drilling is needed
• Setups using Chief CPA and CPA plate systems

Key specifications

• Model: Chief CPAE150
• Maximum weight capacity: 226.7 kg
• Depth (column length): 150 mm
• Weight: 3.0164 kg (approx. 3.02 kg)
• Colour: Black
• Compatibility: Chief ceiling plates (CPA262, CPA264) and dedicated pin connection CPA plates
• Pre-cut shipment: yes — with 3 pre-drilled thru holes in each column end

How to use

Attach the CPAE150 column to a compatible Chief ceiling plate or dedicated CPA pin connection plate following the plate manufacturer’s mounting instructions. Route cables through the external inlay channel; the inlay design allows cables to be installed or removed for service. If required, cut the column to the desired length and re-drill mounting holes using the grooves as drill guides. Secure the projector to the plate assembly and verify that the total projector weight does not exceed 226.7 kg.

Recommendations

For safe and reliable installation, mount to a structurally sound ceiling and follow Chief’s plate and projector manufacturer instructions. Use appropriate fasteners for the ceiling material, do not exceed the 226.7 kg weight limit, and perform periodic inspections of cable routing and mounting hardware.
