Držiak signage displeja Chief MFQUB rozsah naklonenia 45 - 15°

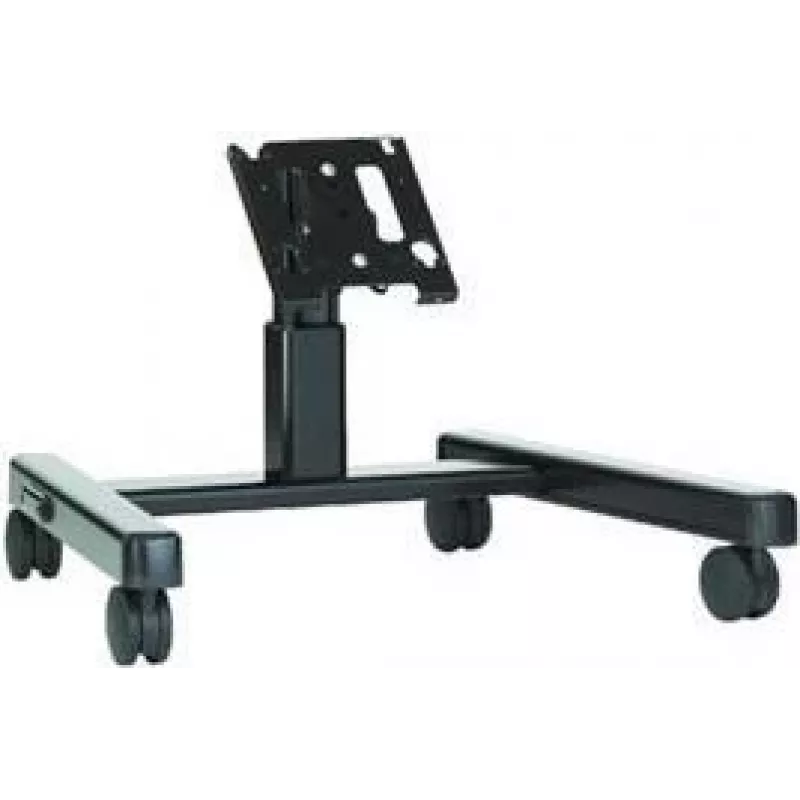

A lightweight mobile cart with a collapsible design that supports interactive touchscreens and confidence monitors. The mount fits 30–55" displays and allows the center of the screen to be positioned between 20.13" and 22.13" (511–563 mm) from the floor. The product offers tool-free height adjustment, integrated cable management and lockable rear wheels for added stability.

Advantages

Centris Technology enables effortless fingertip tilt and keeps the screen angle set until deliberately adjusted. ClickConnect Technology provides an audible click to confirm the flat panel is locked in place and allows quick connect/disconnect without tools. The cart includes provisions for integrated security with an added padlock and supports portrait or landscape installation with optional accessories for rotation. Its compact, angled base simplifies corner positioning.

Suitable for

• Interactive touchscreen displays in meeting rooms or education
• Confidence monitors for presentations and events
• Temporary digital signage and wayfinding in retail or public spaces

Key specifications

• Model: Chief MFQUB
• Fits displays: 30–55"
• Center height from floor: 20.13"–22.13" (511–563 mm)
• Tilt range: 45°–15°
• Tool-free telescoping height adjustment
• Centris fingertip tilt mechanism
• ClickConnect quick-lock system
• Integrated cable management and flexible covers
• Lockable rear casters and compact angled base

How to use

Position the cart where required and lock the rear wheels for stability. Mount the compatible flat panel (30–55") to the ClickConnect interface until you hear the audible click that confirms it is locked. Adjust the center height by using the telescoping mechanism; no tools are required. Use Centris Technology to set the desired tilt and the screen will hold that angle until intentionally changed. Route cables through the integrated cable management covers for a clean installation. If needed, secure the unit with a padlock through the provided security point and use optional accessories to rotate the display between portrait and landscape.

Recommendations

Use on level floors and lock the rear wheels before interacting with the touchscreen. Verify display compatibility (30–55") and follow the ClickConnect audible confirmation before transport. For rotation between portrait and landscape, use the manufacturer’s MAC400 accessory if you prefer to rotate without removing the screen.
