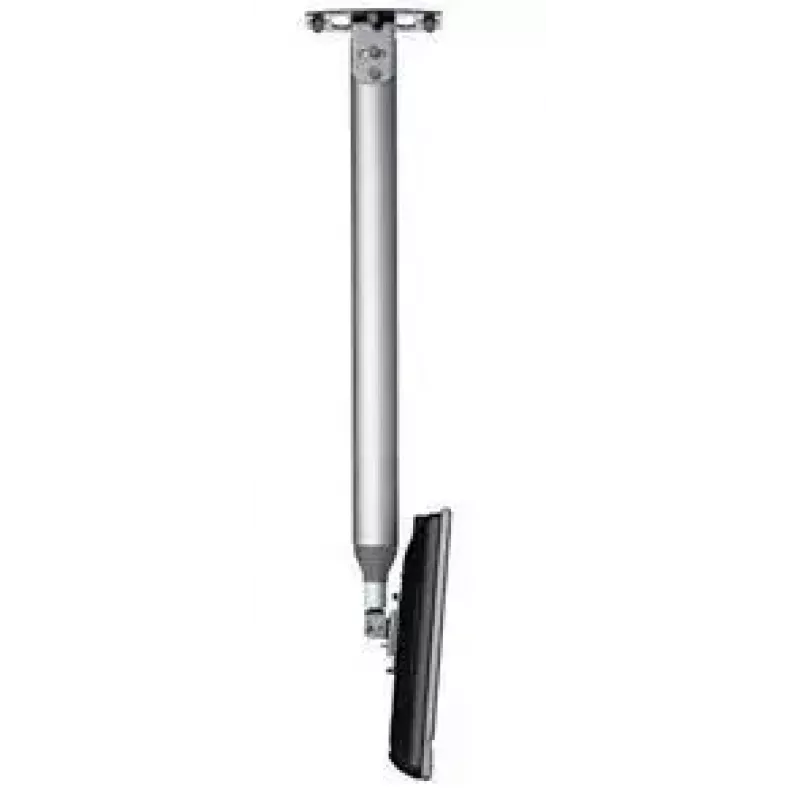

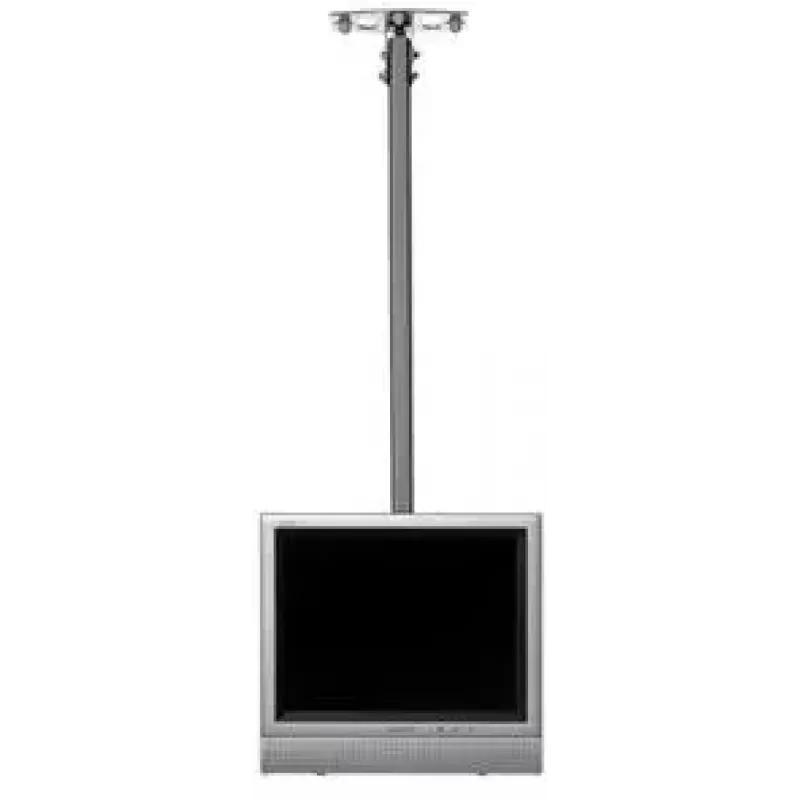

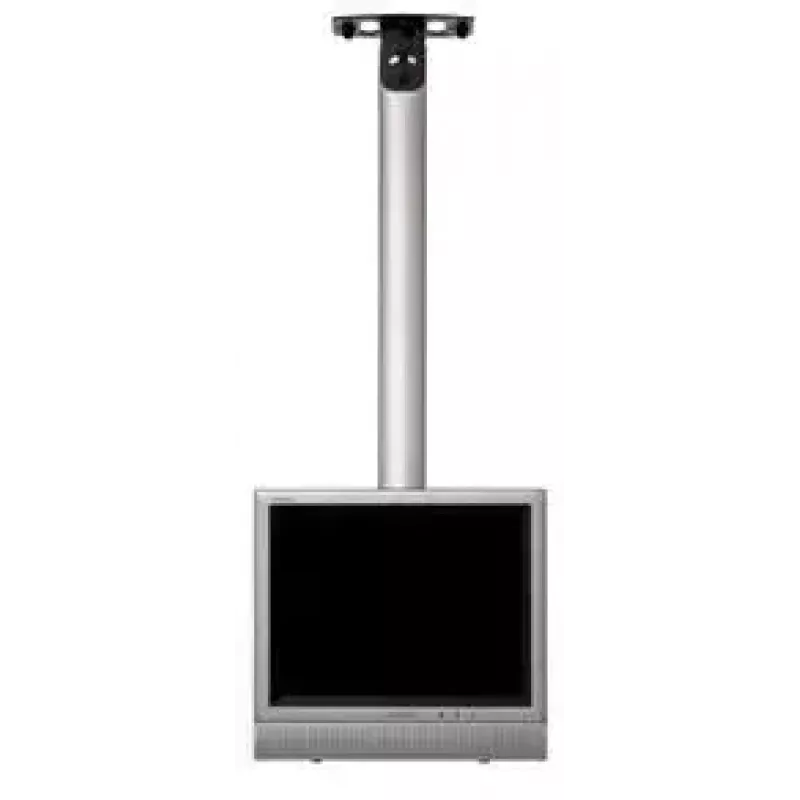

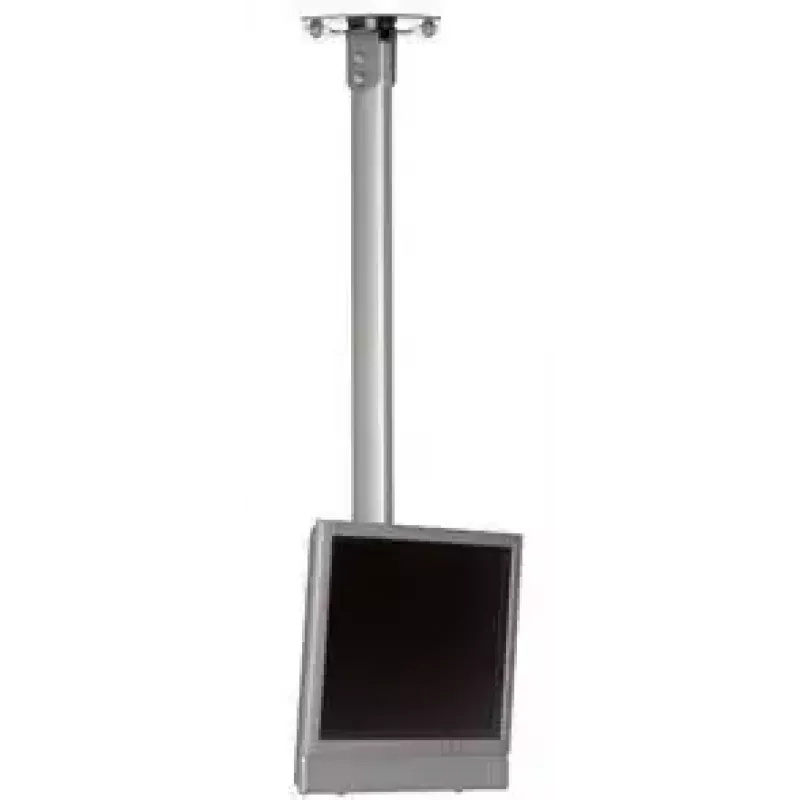

Držiak SMS Smart Media Solutions Flatscre CL VST300-350 A/S

The SMS Flatscreen CL VST is a ceiling mounting bracket designed for lighter flat screens up to 15 kg. It supports VESA patterns from 75 x 75 mm up to 200 x 200 mm and offers a tilt range from 0° to 85°. Finished in silver, the bracket is available in several lengths to accommodate most ceiling heights and can be combined with the SMS Clamp when additional mounting options are needed.

Advantages

The bracket is lightweight yet rated for screens up to 15 kg, supports a wide range of VESA standards, and provides a large tilt range for flexible viewing angles. Multiple length options allow adaptation to different ceiling heights, and the silver finish offers a neutral appearance for various interior styles. Compatibility with the SMS Clamp increases mounting versatility.

Suitable for

• Small to medium flat screens and monitors up to 15 kg
• Ceiling installations in homes and offices
• Applications requiring adjustable tilt and varied drop lengths

Key specifications

• Maximum weight capacity: 15 kg
• Supported VESA: from 75 x 75 mm to 200 x 200 mm
• Tilt range: 0° to 85°
• Colour: Silver
• Model/MPN: FS021002

How to use

Choose the bracket length appropriate for the ceiling height and fix the ceiling plate securely to a suitable structural member or anchor points. Attach the mounting arms to the screen using the matching VESA holes, lift the screen and fasten it to the bracket, then adjust the tilt within the 0°–85° range to the desired viewing angle. If needed, mount the SMS Clamp onto the Flatscreen CL VST for alternative attachment options.

Recommendations

Install the bracket on a load-bearing ceiling or with appropriate anchors rated for the combined weight. Ensure the screen weight does not exceed 15 kg and verify VESA compatibility before installation. If unsure, consult a qualified installer.
