Držiak zariadení 10" SCHROFF 20118-716 1U, 220 x 150 mm

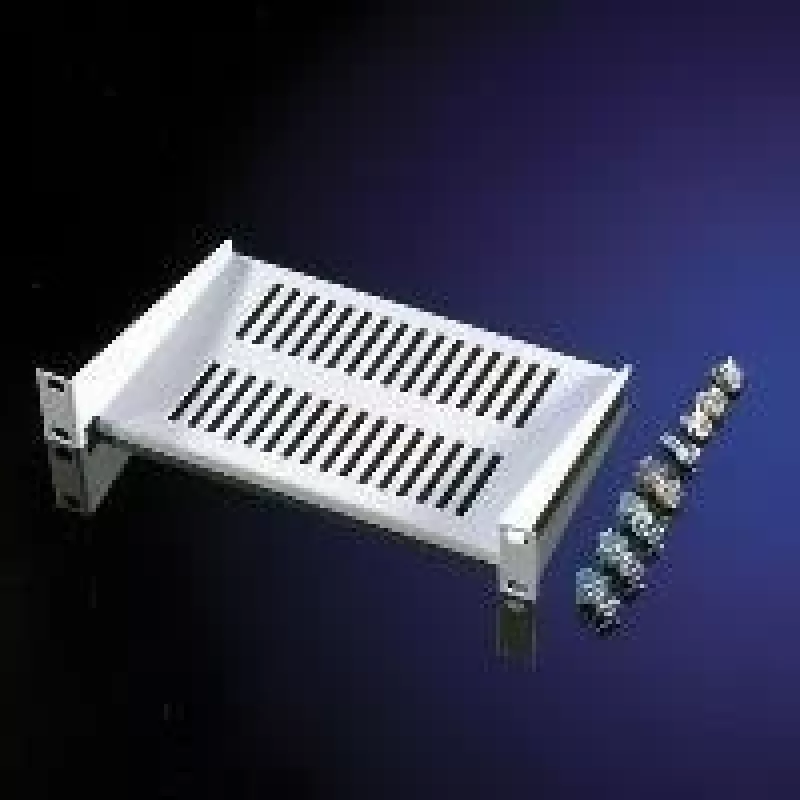

The SCHROFF 10" device carrier 20118-716 is a 1U mounting panel sized 220 x 150 mm designed to hold and secure 10-inch modules and instruments in 19" rack systems. It provides a standardized mounting surface for integrating measurement, control or interface modules into a 1U rack slot, facilitating neat arrangement and simple front-panel access in industrial cabinets, test racks or laboratory enclosures.

Advantages

The 1U form factor and standard 19" compatibility ensure straightforward installation into existing racks and enclosures. The compact 220 x 150 mm footprint accommodates a wide range of 10" modules while conserving rack space. Constructed to meet common industrial mounting requirements, the carrier offers reliable mechanical support and a consistent front appearance for mixed equipment layouts.

Suitable for

• Mounting 10-inch instruments or modules in 19" rack systems
• Integration of measurement and control front-end modules in 1U slots
• Organizing test bench or laboratory equipment within standard racks
• Industrial enclosures where a compact 1U device panel is required

Key specifications

• Compatibility: 19" rack mounting, 1U height
• Front panel size: 220 x 150 mm (width x height usable area)
• Designed for: 10-inch modules and front panels
• Mounting type: panel carrier for secure mechanical fixation

How to use

Position the device carrier in the desired 1U slot of a 19" rack or enclosure and align the mounting holes with the rack rails. Secure the carrier using appropriate rack screws or fasteners compatible with the enclosure. Install the 10" module into the carrier opening and fasten it according to the module manufacturer's instructions to ensure proper mechanical and electrical connection. Verify front-panel alignment and accessibility before powering connected equipment.

Recommendations
