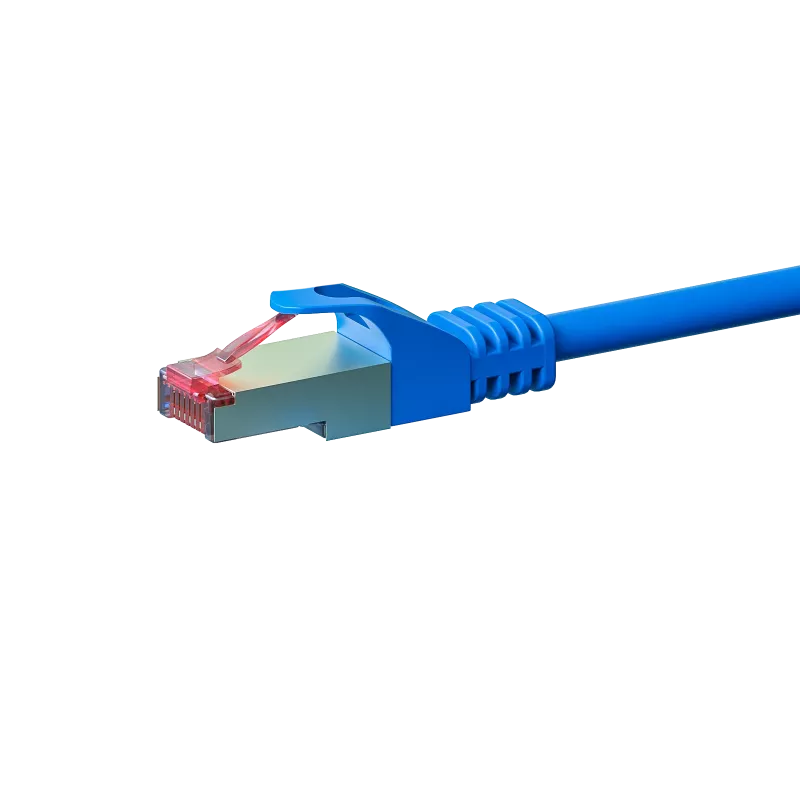

DSIT Cat 6 S/FTP LSOH sieťový patch kábel, 20 m, modrá

In modern office and data center environments, reliable high-speed connectivity is non-negotiable. The DSIT Cat 6 S/FTP LSOH Network Patch Cable eliminates signal interference and ensures stable 10 Gigabit Ethernet performance over distances up to 20 meters. Its screened and foiled twisted pair construction provides superior protection against EMI and crosstalk, making it ideal for dense network installations where performance cannot be compromised.

Who is it for

This cable is built for IT professionals, network administrators, and businesses that demand dependable, high-bandwidth connections. It suits server rooms, structured cabling systems, and any environment where low smoke zero halogen properties are required for safety compliance.

Main features

• Cat 6 performance with up to 250 MHz bandwidth and 10 Gbps data transfer rate
• S/FTP shielding: each pair foiled plus overall braided screen for maximum noise immunity
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic fumes and smoke in case of fire
• Stranded 26 AWG copper conductors offer flexibility and durability for frequent patching
• RJ45 male connectors on both ends, wired to TIA/EIA-568B standard
• 20-meter length provides ample reach for racks, wall outlets, and equipment connections
• Blue jacket for easy identification and organization

Specifications

• Cable type: Ethernet patch cable
• Category: Cat 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 20 m
• Colour: Blue
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Cable construction: Stranded
• Wiring standard: TIA/EIA-568B
• Bandwidth: up to 250 MHz
• Data transfer rate: up to 10 Gbps
• Number of pairs: 4 twisted pairs
• Fire safety standard: IEC 60332-1
• Outer diameter: approx. 6.0–6.5 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius. Use cable management accessories to maintain neat installations and prevent accidental disconnections. When deploying in plenum spaces, verify local fire codes regarding LSOH requirements.
