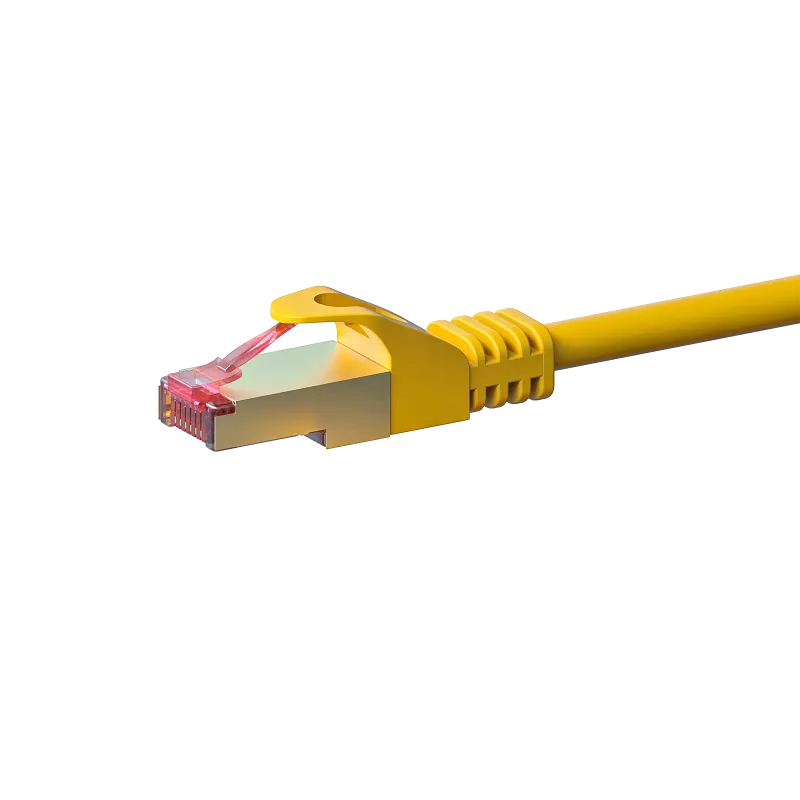

DSIT CAT 6 S/FTP LSOH sieťový patch kábel, 3 m, žltá (DC-S67-030)

Where many Cat 6 cables settle for basic UTP construction, the DSIT DC-S67-030 steps up with full S/FTP shielding—each twisted pair individually foiled, plus an overall braided screen. The result is a patch lead that shrugs off EMI and crosstalk in dense racks, industrial floors, and anywhere motors, ballasts, or neighbouring cables would otherwise degrade a 10GBASE-T link. The LSOH jacket adds another layer of confidence: in a fire it emits far less smoke and no corrosive halogens, making it a sensible choice for public buildings, offices, and enclosed installations.

Highlights

• Cat 6 S/FTP construction: foil around every pair plus overall braid for superior noise immunity
• LSOH (Low Smoke Zero Halogen) yellow jacket for safer indoor deployment
• Supports 10GBASE-T up to 55 m and 1000BASE-T up to 100 m
• Gold-plated RJ45 contacts resist oxidation and maintain signal integrity
• Stranded 24 AWG copper conductors stay flexible for easy routing
• PoE, PoE+, and UPoE ready for powering access points, cameras, and phones

In daily use

The 3 m length is a sweet spot for patching between switch and patch panel, or connecting a workstation to a wall outlet without leaving a tangle of excess cable. The stranded conductors bend easily around corners and through cable managers, while the robust RJ45 boots protect the locking tab from snags. Because the jacket is LSOH, you can run this cable through plenum-adjacent spaces or crowded conduits with less concern about toxic smoke in an emergency. The yellow colour stands out against black patch panels and grey racks, simplifying port identification and cable tracing.

Full specifications

• Brand: DSIT
• Model: DC-S67-030
• MPN: DC-S67-030
• EAN: 8719956627965
• Cable type: Cat 6 S/FTP patch cable
• Length: 3 m
• Colour: Yellow
• Connector 1: RJ45 male
• Connector 2: RJ45 male
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Conductor material: Copper
• Conductor gauge: 24 AWG
• Conductor structure: Stranded
• Wiring standard: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, UPoE
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, CE
• Fire safety: IEC 60332-1, IEC 61034-2, IEC 60754-2

Final note

For installations where signal purity and fire safety are non-negotiable, the DSIT DC-S67-030 delivers enterprise-grade shielding and an LSOH jacket in a practical 3 m length. It is a direct fit for Cat 6 patching in offices, schools, and light industrial environments.
