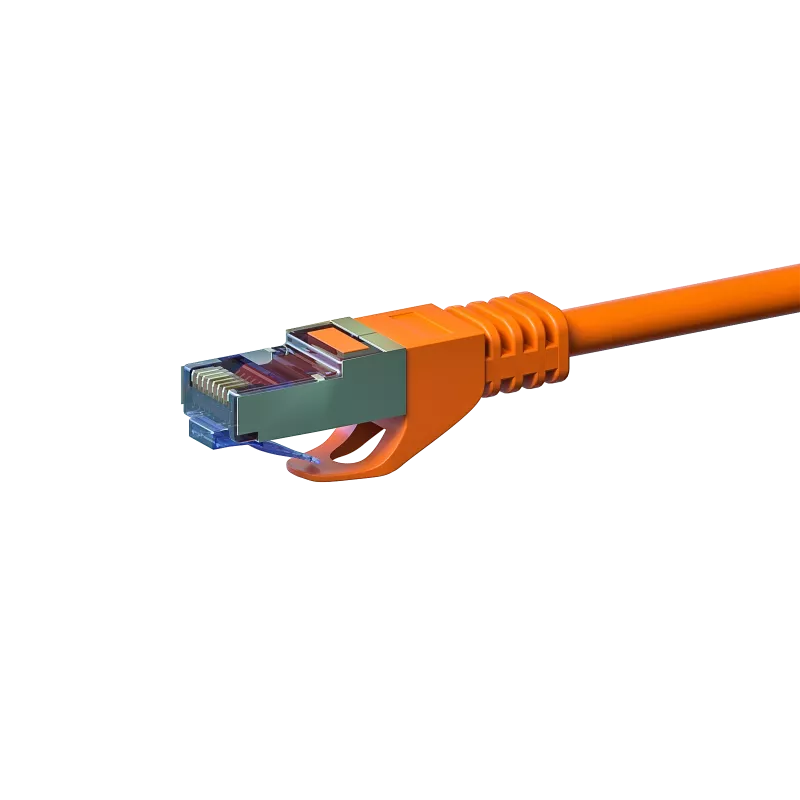

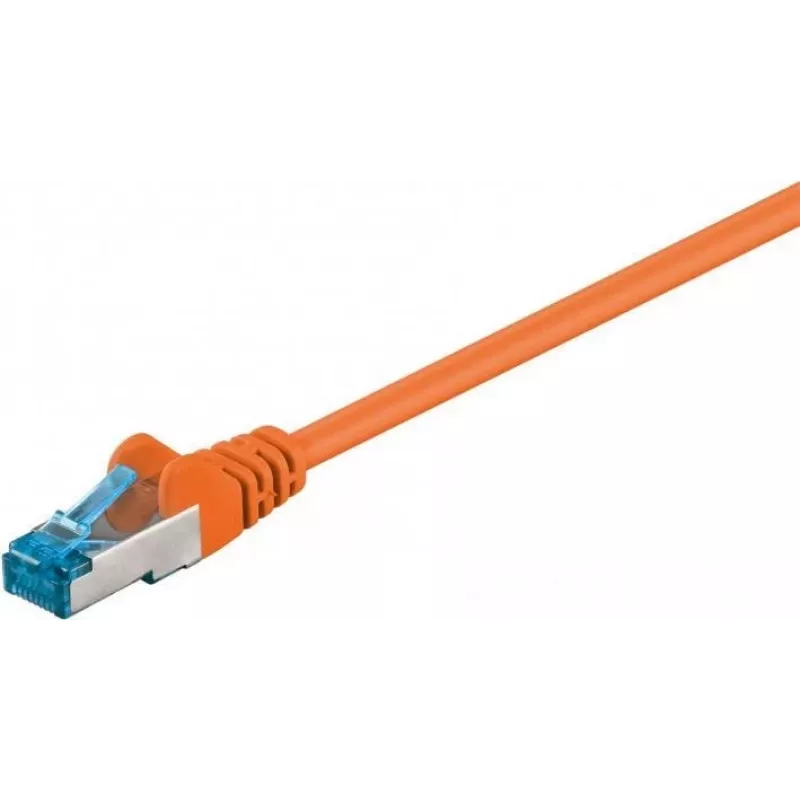

DSIT CAT 6a S/FTP LSOH sieťový kábel 1m oranžová

This CAT 6a Ethernet patch cable delivers 10 Gigabit performance over 1 meter with S/FTP shielding and LSOH jacket. Ideal for high-density data centers and office networks where safety and signal integrity matter.

Advantages

Double shielding (foil per pair plus overall braid) virtually eliminates alien crosstalk, ensuring stable 10GBASE-T links up to 500 MHz. The LSOH jacket emits low smoke and zero halogen under fire, protecting people and equipment. Stranded copper conductors (AWG 26/7) offer excellent flexibility for tight patch panel installations.

Suitable for

• Data centers and server rooms
• 10G Ethernet backbone connections
• Office LAN and workstation cabling
• Environments requiring low-smoke, halogen-free cabling
• Backward-compatible with Cat 6, Cat 5e, and Cat 5 networks

Key specifications

• Category: Cat 6a (Class EA)
• Shielding: S/FTP (PiMF + overall braid)
• Length: 1 meter
• Colour: Orange
• Jacket: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male
• Conductor: Copper (OFC), AWG 26/7 stranded
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbps
• Wiring: TIA/EIA-568B
• Outer diameter: approx. 6.2 mm
• Operating temperature: -20°C to +60°C

Recommendations

For reliable 10G links in confined spaces, pair this cable with DSIT patch panels and keystone jacks. Keep bend radius above 4x cable diameter to maintain performance.
