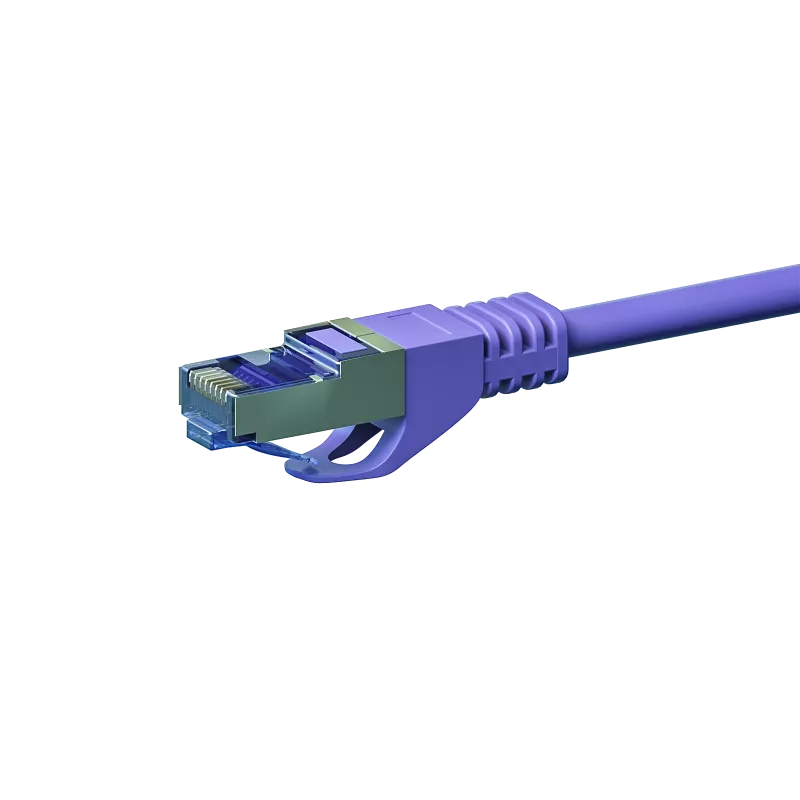

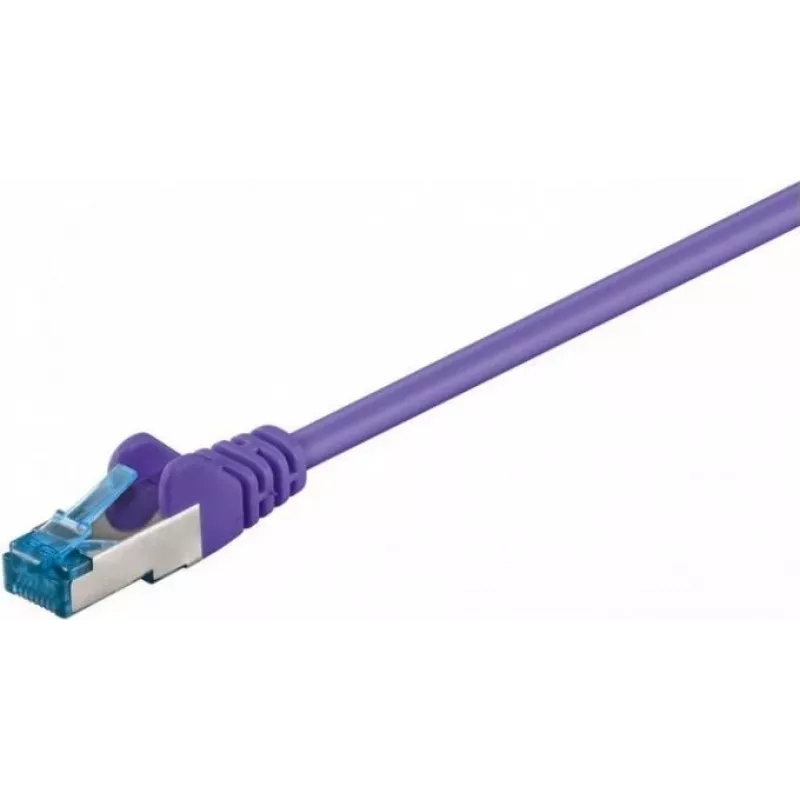

DSIT CAT 6a S/FTP LSOH sieťový kábel, 30 m, fialový

For high-density 10 Gigabit installations where fire safety and signal integrity are non-negotiable, this DSIT CAT 6a cable delivers both. The S/FTP construction pairs an overall braided screen with foil-wrapped pairs, virtually eliminating alien crosstalk in bundled runs. The LSOH jacket emits low smoke and zero halogens, making it suitable for public buildings, data centres, and any space where evacuation safety matters.

Highlights

• 30-metre length covers floor-to-rack or long horizontal runs without splicing.
• Category 6a performance supports 10GBASE-T up to 500 MHz with headroom.
• S/FTP shielding: braided overall screen plus per-pair foil for superior EMI immunity.
• LSOH (Low Smoke Zero Halogen) jacket meets IEC 60332-1, IEC 61034, and IEC 60754.
• 100% copper stranded conductors, 26 AWG, for flexibility and reliable PoE delivery.
• Gold-plated RJ45 connectors (50 µm) resist corrosion and maintain low contact resistance.
• Violet jacket aids colour-coded network segmentation.

In daily use

Terminate this cable into patch panels, switches, or wall outlets and forget about it. The stranded conductors tolerate repeated bending during installation and routine moves, while the rugged LSOH sheath resists abrasion in cable trays. PoE devices such as access points, IP cameras, and VoIP phones receive stable power up to the full 30-metre span, with minimal voltage drop thanks to pure copper conductors. The violet colour stands out against grey and black infrastructure, simplifying identification in crowded racks.

Full specifications

• Brand: DSIT
• Model: DC-6A8-300
• MPN: DC-6A8-300
• EAN: 8719956622496
• Cable type: Ethernet patch cable
• Category: Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 30 m
• Colour: Violet
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor material: 100% copper
• Conductor gauge: 26 AWG
• Cable construction: Stranded
• Connector plating: Gold-plated contacts (50 µm)
• Impedance: 100 Ohm
• Outer diameter: Approx. 6.2 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754

Final note

When your network demands both high speed and low smoke emission, this DSIT cable is a dependable choice. It meets stringent fire safety standards without compromising on Cat 6a performance, making it a smart investment for enterprise and industrial environments.
