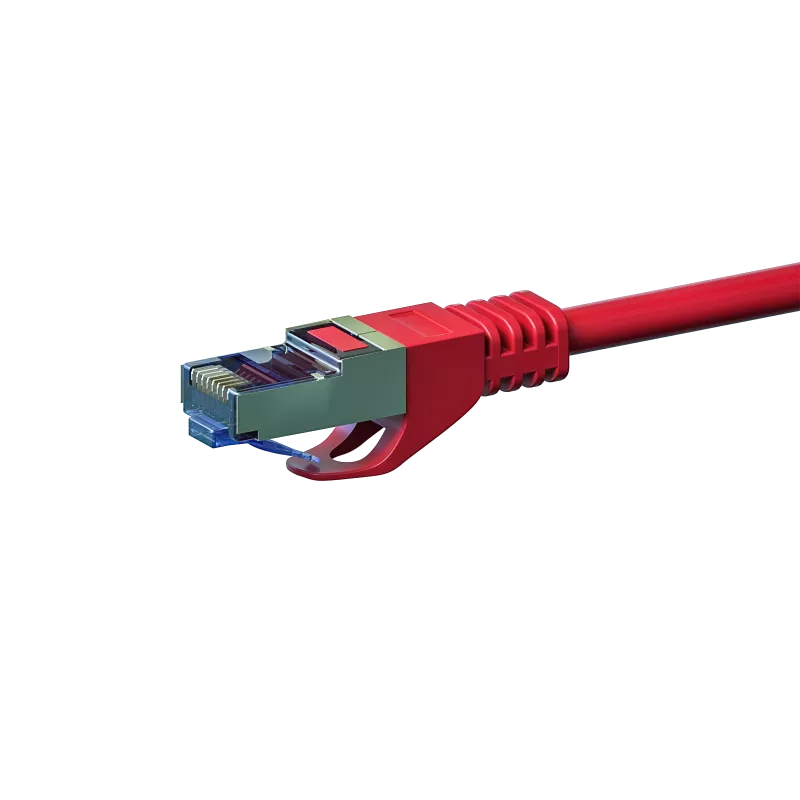

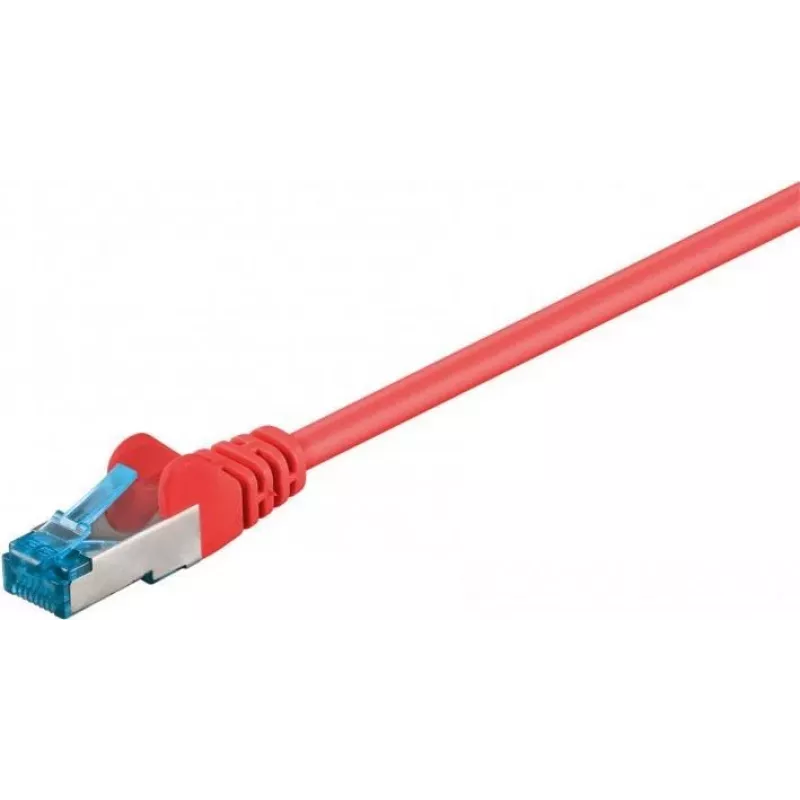

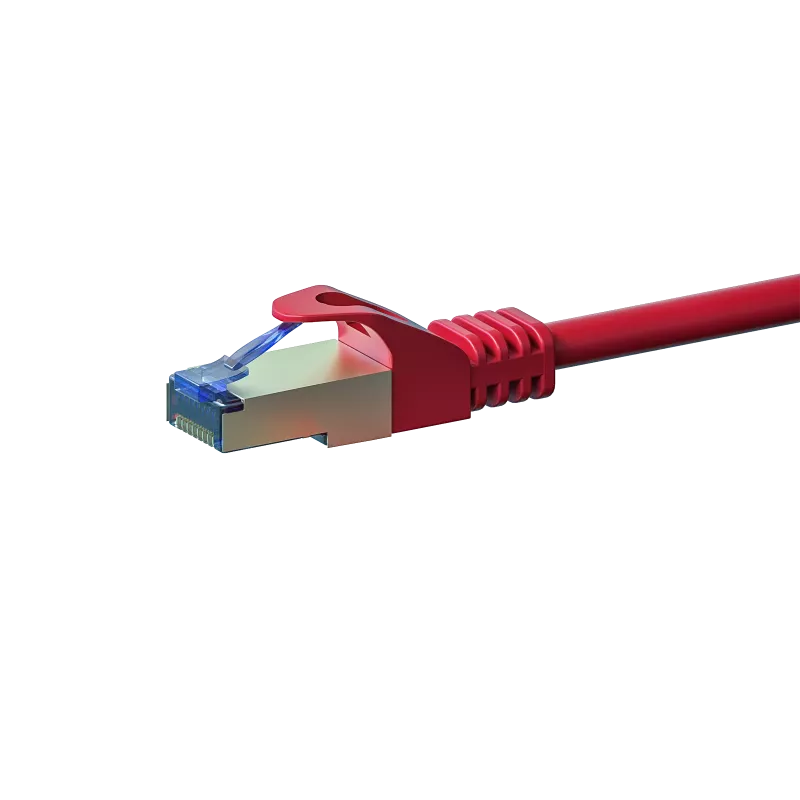

DSIT CAT 6a S/FTP LSOH sieťový kábel 7,5 m červený (DC-6A5-075)

For installations where fire safety is non-negotiable, this DSIT CAT 6a patch cable combines LSOH jacketing with full S/FTP shielding to deliver 10 Gigabit performance without compromising on safety. The 7.5-meter length and stranded copper conductors provide the flexibility needed for tidy rack wiring or direct device connections, while the red jacket makes identification easy in dense setups.

Highlights

• CAT 6a performance: supports 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: each pair individually foil-wrapped plus overall braid for maximum EMI/RFI rejection
• LSOH jacket: low smoke, zero halogen—safe for enclosed spaces and public areas
• Gold-plated RJ45 connectors: 50µm plating ensures reliable, corrosion-resistant contacts
• Stranded AWG 26/7 copper conductors: flexible and durable for frequent re-routing
• PoE compatible: handles Power over Ethernet up to 30W (PoE+)

In daily use

Whether you're connecting a workstation, access point, or IP camera, this cable delivers consistent 10G speeds with minimal crosstalk. The LSOH jacket means it won't emit toxic fumes or dense smoke in the event of a fire, making it suitable for offices, schools, and hospitals. The red colour stands out, simplifying cable management and troubleshooting.

Full specifications

• Category: CAT 6a (Class Ea)
• Shielding: S/FTP (PiMF)
• Length: 7.5 m
• Colour: Red
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µm)
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Number of pairs: 4
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• PoE support: PoE, PoE+
• Backward compatible with Cat5e and Cat6

Final note

When you need a cable that meets strict safety codes without sacrificing speed, the DSIT DC-6A5-075 is a reliable choice for professional network installations.
