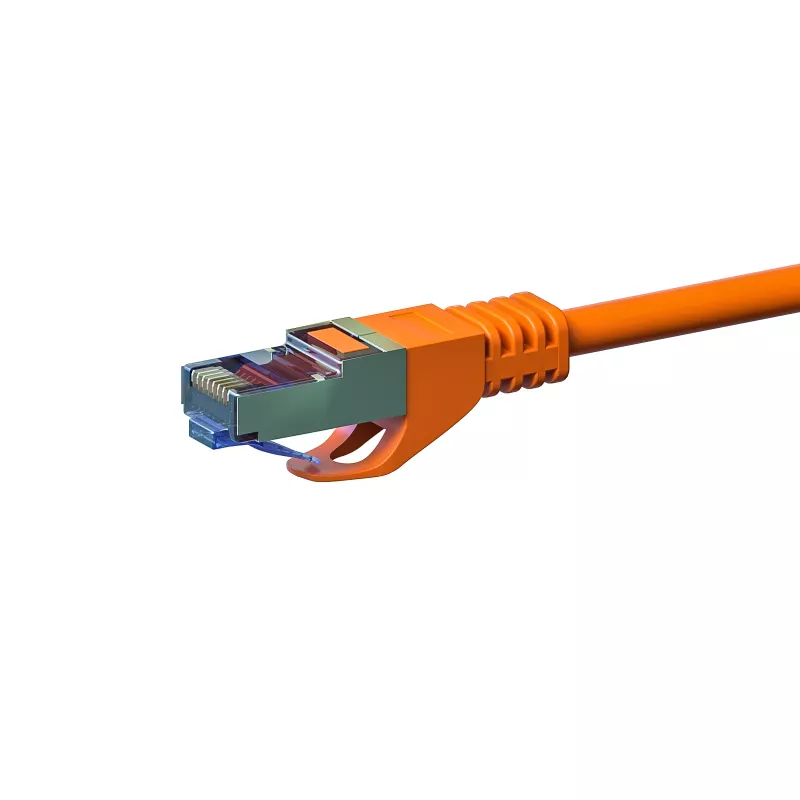

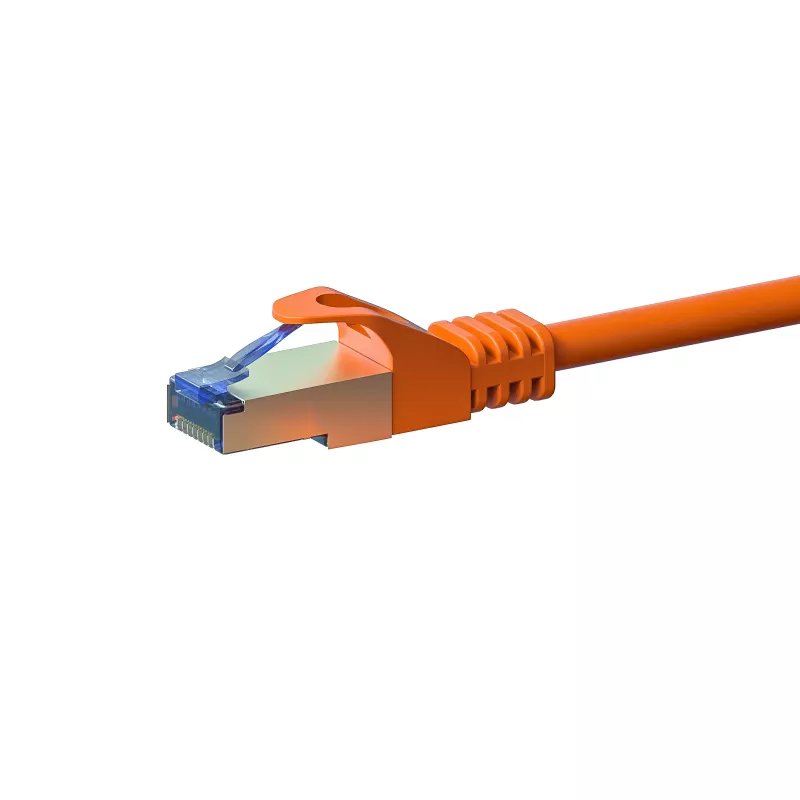

DSIT CAT 6a S/FTP LSOH sieťový patch kábel, 20m, oranžová, 10 Gbps, 500 MHz, RJ45

Experience 10 Gigabit Ethernet speeds with this 20-meter DSIT CAT 6a patch cable, engineered with S/FTP shielding and a low-smoke zero-halogen jacket for high-performance, safety-conscious networking.

Overview

The DSIT DC-6A6-200 is a premium CAT 6a network cable designed for demanding data center, office, and home network environments. Its S/FTP construction—individually foil-shielded pairs wrapped in an overall braided screen—provides superior protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable 10GBASE-T transmission over the full 20-meter length. The cable supports frequencies up to 500 MHz and is fully compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards.

What stands out

• 10 Gbps data transfer rate for bandwidth-intensive applications
• S/FTP shielding minimizes alien crosstalk and EMI
• LSOH (low smoke zero halogen) jacket for enhanced fire safety
• Pure copper stranded conductors (AWG 26/7) for flexibility and signal integrity
• Durable orange jacket for easy identification and organization
• RJ45 male connectors on both ends, ready for immediate use

Technical details

• Category: CAT 6a (Category 6a)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 20 meters
• Colour: Orange
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male (both ends)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Pure copper
• Conductor gauge: AWG 26/7 (stranded)
• Impedance: 100 Ohm
• Outer diameter: approx. 6.2 mm
• Operating temperature: -20°C to 60°C
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Certifications: RoHS, CE

Our verdict

For professionals who demand maximum throughput and safety, this DSIT CAT 6a cable delivers exceptional performance with its robust shielding and halogen-free design, making it a reliable backbone for modern high-speed networks.
