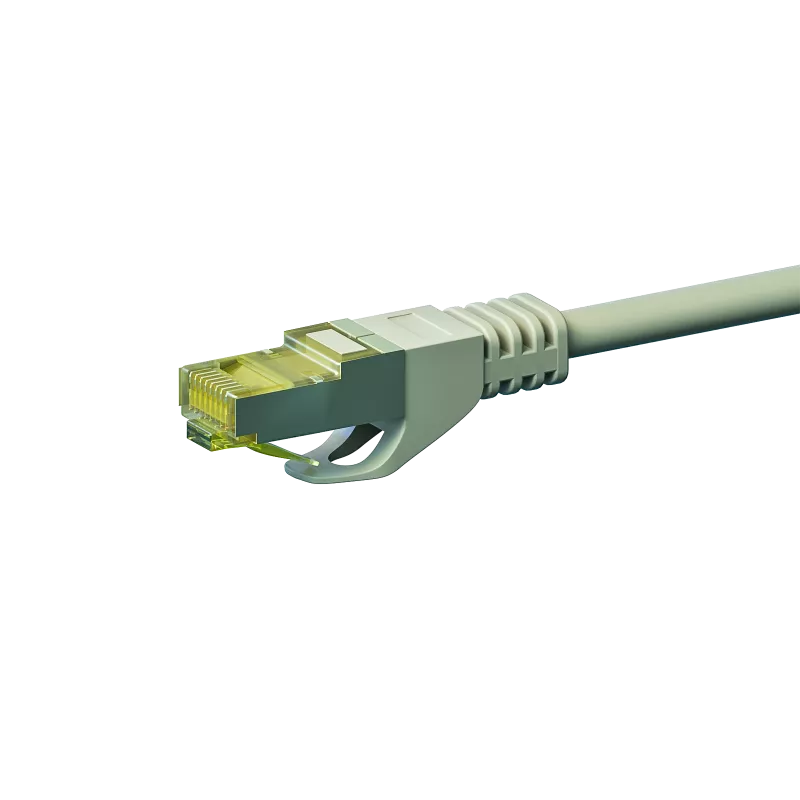

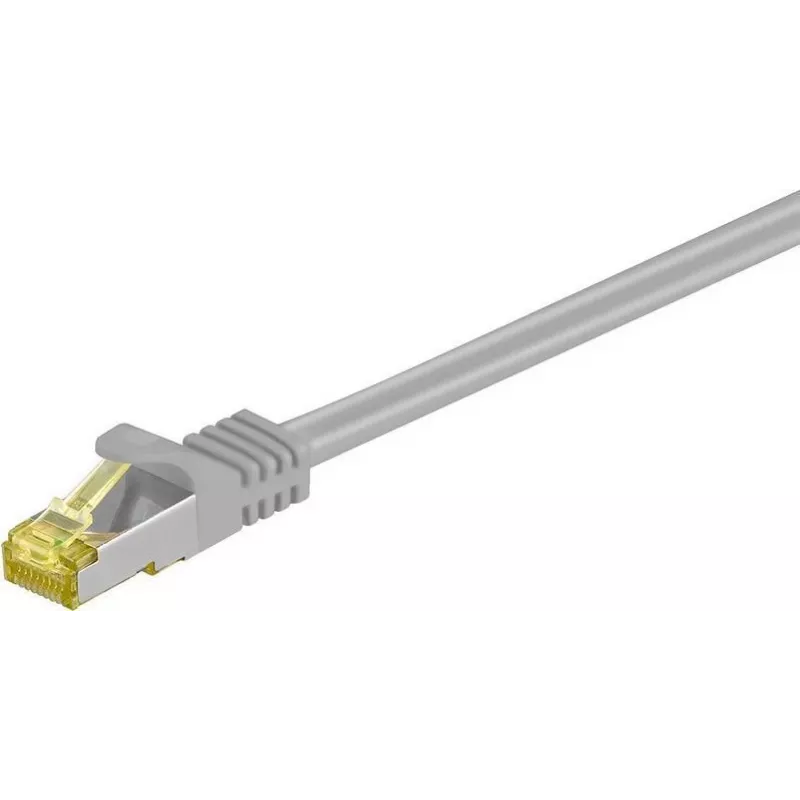

DSIT Cat.7 S/FTP PiMF RJ45 sieťový patch kábel, 30 m, sivá (DC-71-300)

Data centres and server rooms demand cabling that can handle 10-Gigabit speeds without interference. The DSIT Cat.7 S/FTP PiMF network cable delivers exactly that: a 30-metre grey patch cable with individually foil-shielded pairs (PiMF) and an overall braided shield, ensuring clean signal transmission even in dense rack environments. Terminated with robust RJ45 connectors, it’s a reliable choice for high-performance network links.

Key specifications

• Cable type: Cat.7 S/FTP (Screened Foiled Twisted Pair) with PiMF (Pairs in Metal Foil)
• Length: 30 metres
• Colour: Grey
• Connectors: RJ45 male to RJ45 male
• Bandwidth: 600 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Conductor: Bare copper, 23 AWG
• Shielding: S/FTP – overall braided shield plus foil around each pair
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE support: Yes (PoE, PoE+, 4PPoE/PoE++)

Why choose it

This cable’s PiMF construction virtually eliminates alien crosstalk, a critical factor in high-density installations. The 23 AWG solid copper conductors ensure low attenuation over the full 30-metre run, maintaining signal integrity for 10GBase-T applications. Backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5, it’s a future-proof investment for any network upgrade.

Ideal use cases

• Data centre interconnects and server-to-switch links
• High-speed workstation connections in offices
• Backbone cabling for PoE devices (IP cameras, access points)
• Home networks requiring maximum throughput for gaming or 4K streaming

Good to know

The grey jacket blends unobtrusively in most environments, and the cable is designed for easy routing in cable trays or under floors. With full support for Power over Ethernet up to 4PPoE, it can deliver both data and power to compatible devices, reducing the need for separate power supplies.
