DSIT DANICOM CAT6A 100% medený S/FTP 305m kábel s plným vodičom - LSZH (Cca) (DC-SFTP6A-305S-CCA)

Where lesser cables compromise on conductor purity or shielding integrity, the DSIT DANICOM CAT6A stands apart with 100% solid bare copper and full S/FTP construction. This 305-metre reel delivers true 10-Gigabit performance up to 500 MHz, ensuring your network backbone is ready for today's high-density demands and tomorrow's upgrades.

Highlights

• True CAT6A performance: supports 10GBASE-T up to 500 MHz bandwidth
• 100% solid bare copper conductors (AWG23) for reliable signal integrity and PoE++ (IEEE 802.3bt) compliance
• S/FTP (PiMF) shielding: individual foil per pair plus overall tinned copper braid for maximum EMI/RFI rejection
• LSZH jacket with Euroclass Cca-s1a,d1,a1 fire rating: low smoke, zero halogen, flame retardant

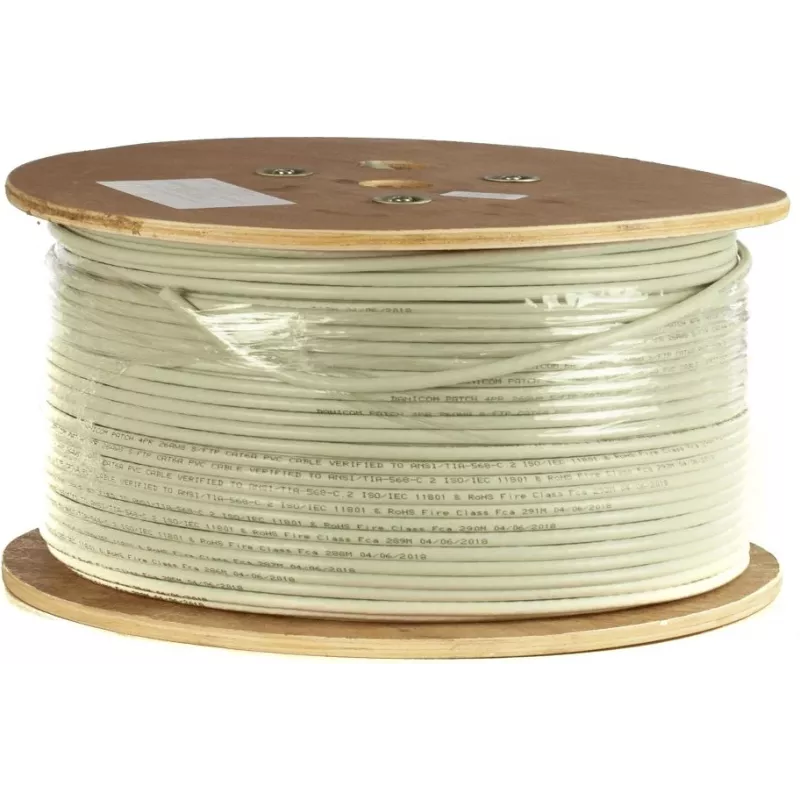

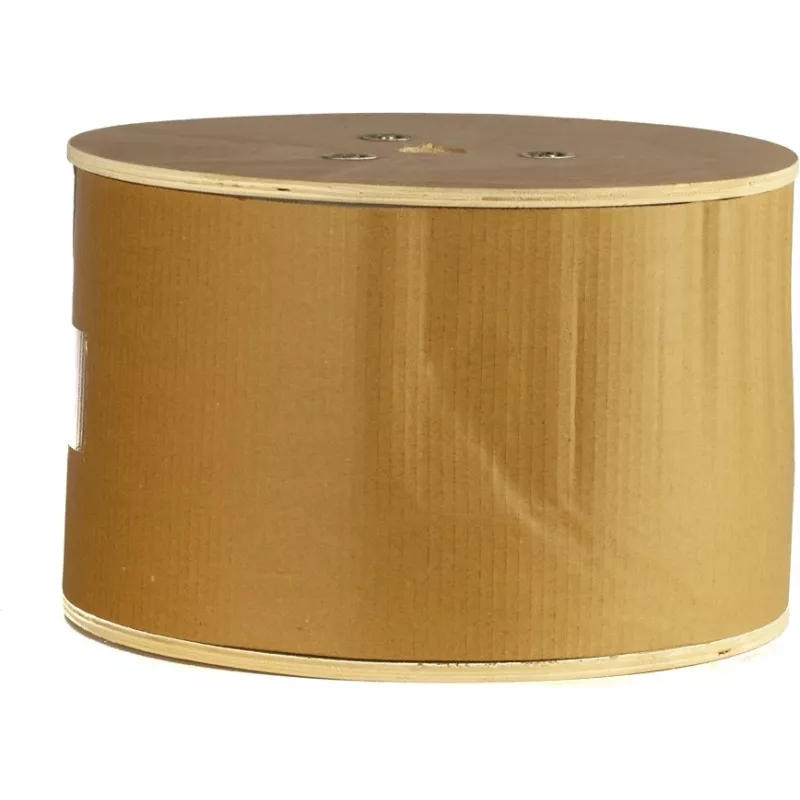

• 305 m (1000 ft) pull-box/reel packaging for professional installations

In daily use

Engineered for structured cabling in offices, data centres, and industrial buildings, this cable maintains stable impedance and minimal attenuation over long distances. The solid copper conductors ensure error-free transmission for bandwidth-intensive applications such as 4K video streaming, large file transfers, and VoIP. The LSZH sheath is safe for enclosed spaces, producing very low smoke and no corrosive halogen gases in the event of fire.

Full specifications

• Cable Type: S/FTP (Screened/Foiled Twisted Pair) / PiMF
• Category: Cat.6A (Class EA)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Material: 100% Solid Copper
• Conductor Gauge: AWG23
• Number of Pairs: 4 Twisted Pairs
• Shielding: Overall braid shield (S) and individual foil shield for each pair (FTP/PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Rating: Euroclass Cca-s1a,d1,a1
• Length: 305 meters (1000 ft)
• Conductor Type: Solid (Starrleiter)
• Impedance: 100 Ohm
• Outer Diameter: Approx. 7.5 mm
• Application: Indoor installation, suitable for PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Color: Grey
• Packaging: Reel / Drum
• Operating Temperature: -20°C to +60°C
• Insulation Material: HDPE (High-Density Polyethylene)

Final note

For installers and network architects who refuse to compromise, this cable delivers the headroom and reliability that future-proof networks demand.
