DSIT DANICOM UTP CAT5e bez nástroja RJ45 konektor samec pre lankové a plné vodiče

Terminate Cat5e UTP cable in seconds with a toolless RJ45 plug that supports both solid and stranded conductors from 22 to 26 AWG, delivering Gigabit Ethernet performance up to 100 MHz.

Overview

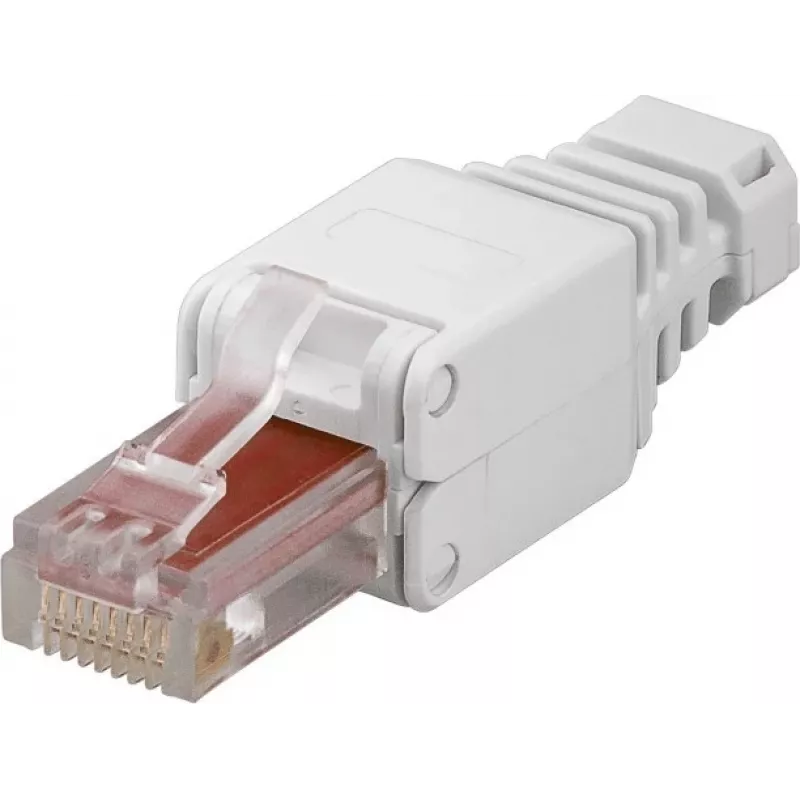

The DSIT DANICOM DC-RJ45-UTP5-TL is a toolless RJ45 connector engineered for fast, reliable field termination of unshielded twisted pair (UTP) Cat5e cabling. Its insulation displacement contacts (IDC) pierce the wire insulation without stripping, while the transparent housing lets you visually verify conductor placement before locking the cap. Compatible with both flexible (stranded) and massive (solid) UTP cables, this plug is ideal for patch cable assembly, network installations, and on-site repairs.

What stands out

• Toolless IDC termination – no crimp tool required, reducing installation time and errors.
• Supports solid and stranded conductors, 22–26 AWG, for maximum cable flexibility.
• Gold-plated contacts (50µm) ensure low contact resistance and corrosion resistance for reliable Gigabit Ethernet.
• Transparent polycarbonate housing allows visual inspection of wire order before final assembly.
• Meets TIA/EIA-568-B.2 Category 5e performance standards, with PoE support up to UPoE.

Technical details

• Connector type: RJ45 plug, 8P8C (8 positions, 8 contacts)
• Category rating: Cat5e (Category 5e)
• Cable compatibility: UTP (unshielded twisted pair), solid and stranded
• Conductor size: 22–26 AWG
• Termination method: Toolless IDC (insulation displacement connector)
• Contact plating: Gold, 50µm
• Housing material: High-impact transparent polycarbonate
• Shielding: Unshielded
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Frequency bandwidth: Up to 100 MHz
• Standard compliance: TIA/EIA-568-B.2
• PoE compatibility: PoE, PoE+, UPoE
• Operating temperature: -10°C to 60°C
• Insertion cycles: >750
• Flammability rating: UL 94V-0
• Application: Field termination, patch cable assembly, network installations

Our verdict

A professional-grade toolless RJ45 plug that combines speed, reliability, and versatility. The transparent design and support for both solid and stranded cable make it a smart choice for installers who need consistent Cat5e terminations without carrying a crimp tool.
