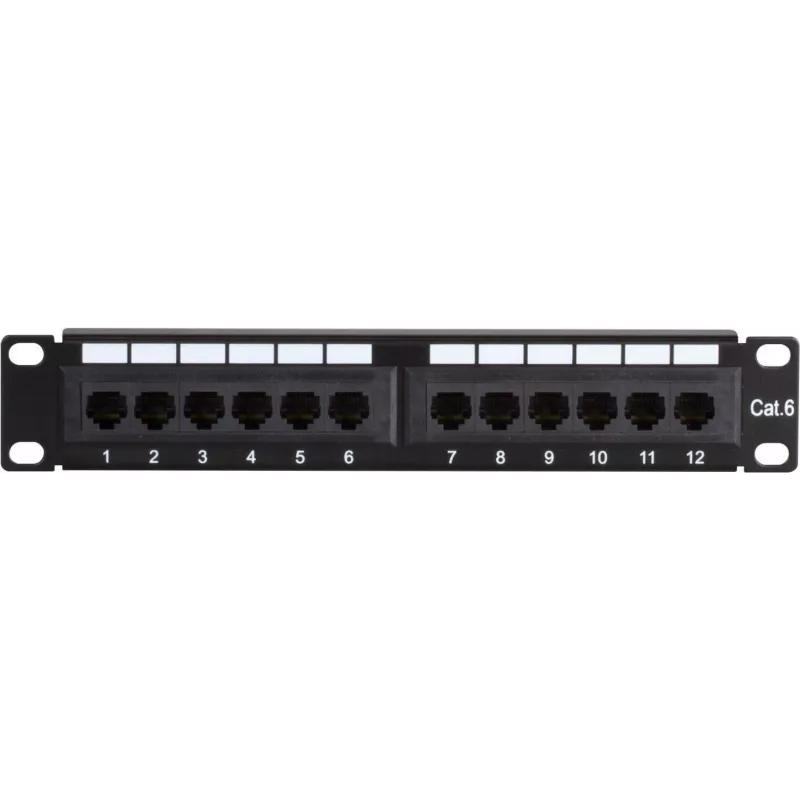

DSIT DS-10Patch6-12UTP 10" 12-portový UTP CAT6 patch panel, 1U racková montáž, čierna

With 12 RJ45 ports on a compact 10-inch footprint, this DSIT patch panel delivers CAT6 performance in a space-saving 1U form factor. The unshielded design and gold-plated contacts ensure reliable gigabit connectivity for small office or home networks.

Overview

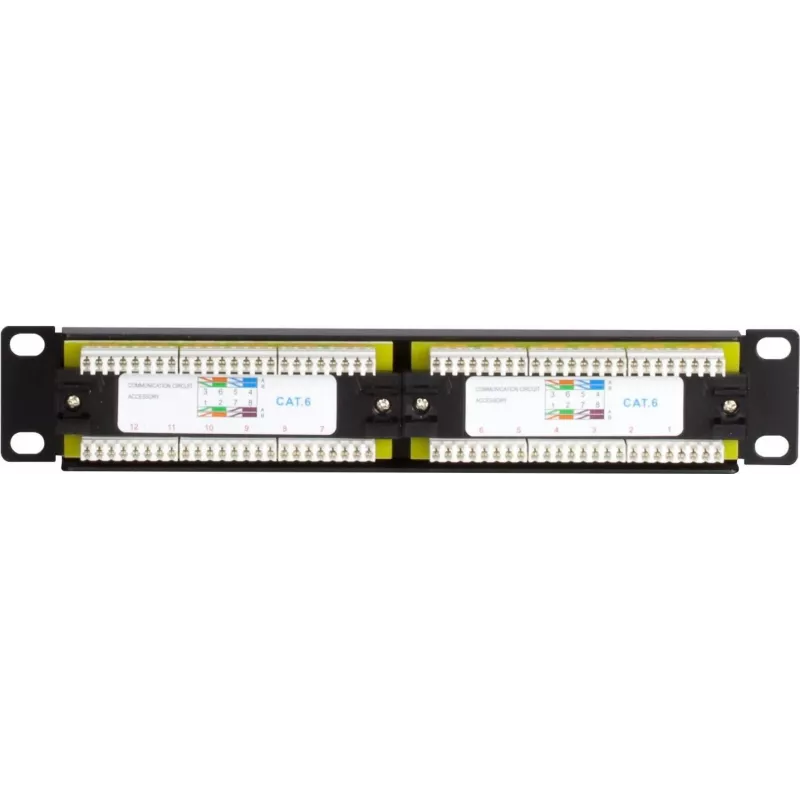

The DSIT DS-10Patch6-12UTP is a 12-port patch panel engineered for 10-inch rack installations. It terminates unshielded twisted pair (UTP) cabling with 110-type IDC blocks, supporting both T568A and T568B wiring schemes. The panel is constructed from SPCC steel with a black finish, providing durability and a professional appearance. Each RJ45 port features gold over nickel plating for superior conductivity and corrosion resistance, rated for 750 mating cycles. The IDC terminals accept 22-26 AWG solid wire and are rated for 200 punch-down cycles, ensuring long-term reliability. The panel is RoHS compliant and meets UL 94V-0 flammability standards.

What stands out

• Compact 10-inch width fits smaller racks and cabinets where space is limited.
• 12 CAT6 UTP ports support high-speed data transmission up to 1 Gbps.
• Gold-plated RJ45 contacts ensure low contact resistance and long life.
• Color-coded IDC blocks simplify termination and reduce wiring errors.
• Durable SPCC steel housing with black finish blends into any environment.
• Supports both T568A and T568B wiring standards for flexibility.

Technical details

• Product type: Network patch panel
• Mounting: 10-inch rack mount, 1U height
• Number of ports: 12
• Cabling standard: CAT6
• Shielding: UTP (unshielded)
• Front connectors: RJ45 female
• Rear termination: 110-type IDC
• Wiring scheme: TIA/EIA 568A/B
• Housing material: SPCC steel
• Contact plating: Gold over nickel
• IDC compatibility: 22-26 AWG solid wire
• Flammability rating: UL 94V-0
• Operating temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Certifications: RoHS
• Durability: 750 RJ45 mating cycles, 200 IDC punch-down cycles

Our verdict

A solid choice for compact network installations, this DSIT patch panel offers reliable CAT6 connectivity without unnecessary bulk. Its 10-inch width is ideal for smaller enclosures, while the robust construction and gold-plated contacts ensure long-term performance.
