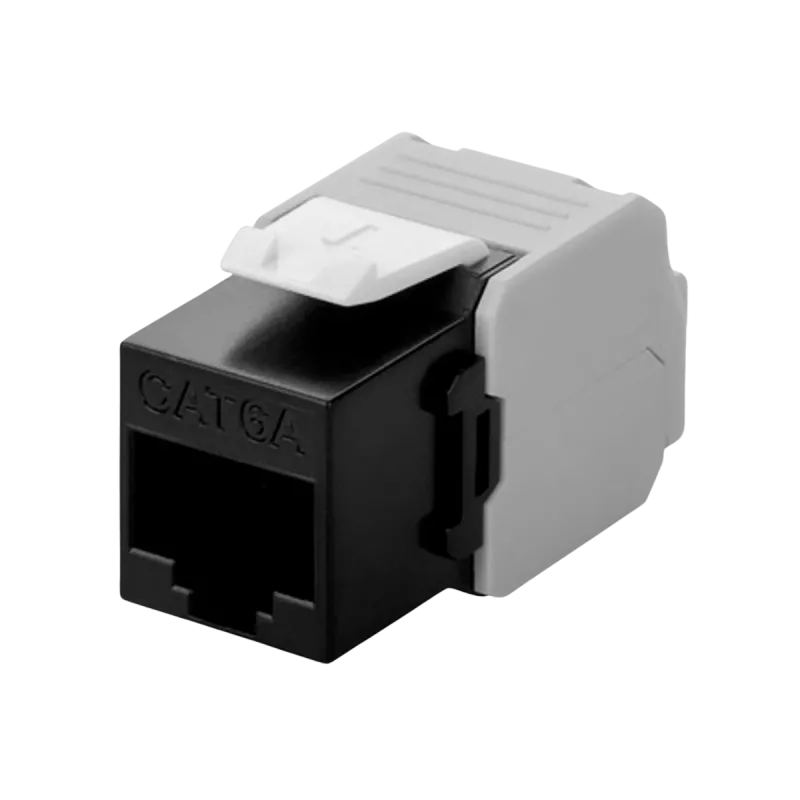

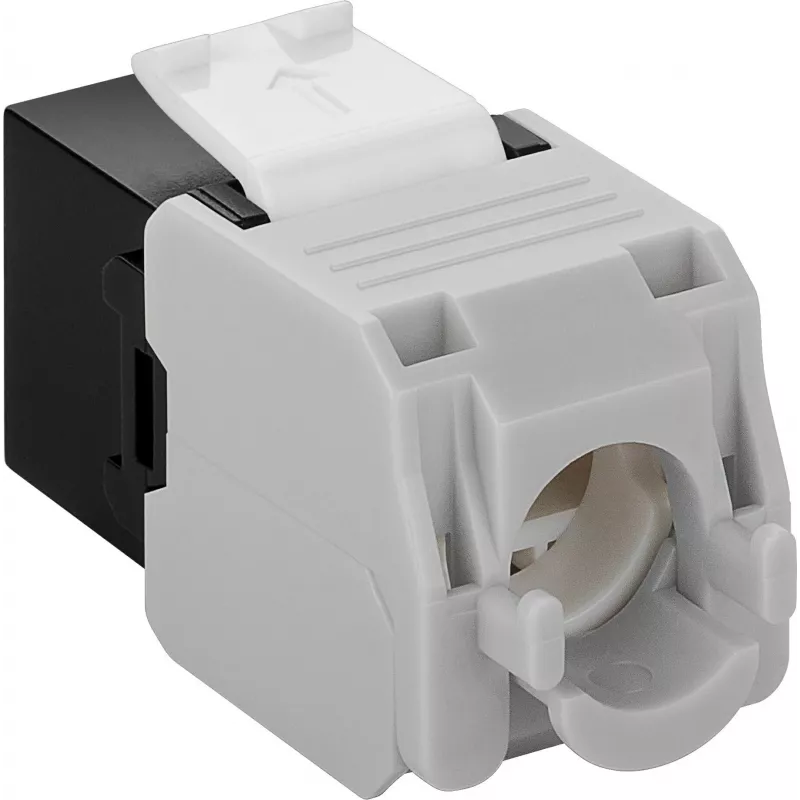

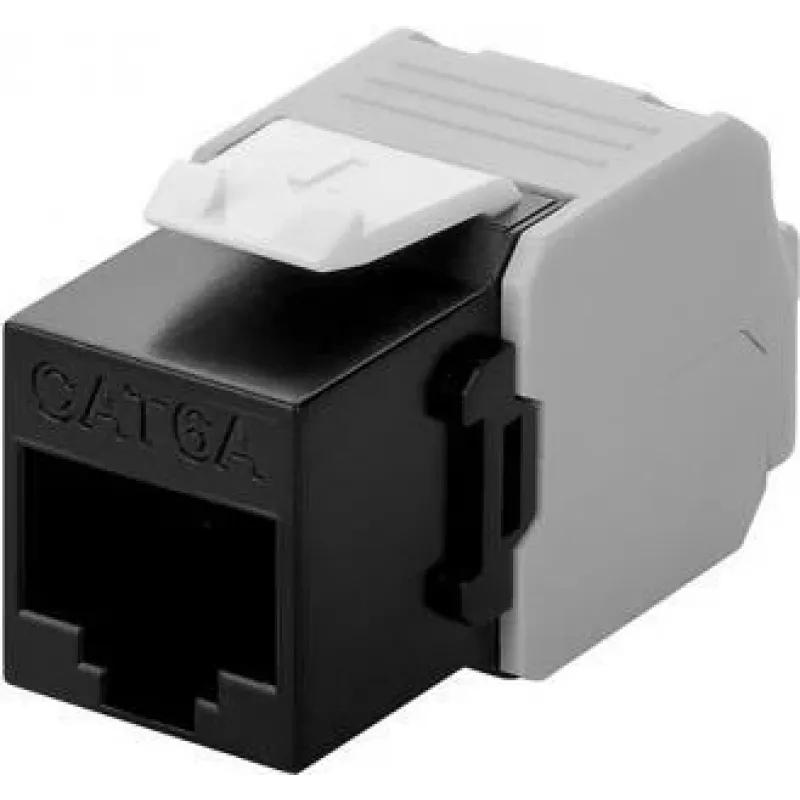

DS-IT CAT6a UTP keystone sieťový konektor - bez nástroja - čierny (DS-KC-UTP6A-TL-1)

The DSIT DS-KC-UTP6A-TL-1 brings professional-grade CAT6a performance to a toolless keystone format, eliminating punch-down tools without sacrificing signal integrity. This black UTP jack snaps into any standard keystone port and supports 10GBASE-T up to 500 MHz, making it a dependable choice for high-speed network runs in patch panels, wall plates, and surface-mount boxes.

Highlights

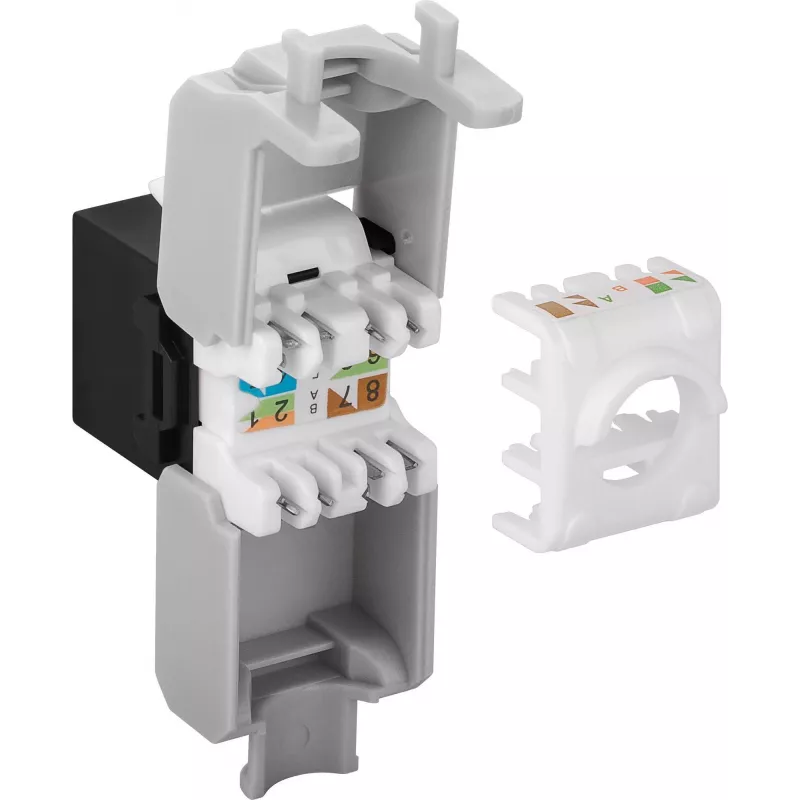

• Toolless IDC termination: insert conductors and close the cap—no punch-down tool required
• CAT6a UTP performance: 10 Gigabit Ethernet up to 500 MHz bandwidth
• Universal compatibility: fits standard keystone openings and accepts 22–26 AWG solid or stranded wire
• Durable construction: high-impact ABS housing with 50µm gold-plated phosphor bronze contacts
• Clear T568A/B colour coding for fast, error-free wiring

In daily use

Installers appreciate the DS-KC-UTP6A-TL-1 for its speed and reliability. The toolless mechanism reduces termination time by up to 50% compared to traditional punch-down jacks, while the robust latching ensures a secure snap into the keystone opening. The black finish blends into most patch panels and wall plates, and the 750 mating cycle rating means it withstands frequent reconnections in office or industrial environments.

Full specifications

• Brand: DSIT
• Model: DS-KC-UTP6A-TL-1
• MPN: DS-KC-UTP6A-TL-1
• EAN: 8720289759810
• Cable category: CAT6a
• Shielding: UTP (unshielded twisted pair)
• Connector type: RJ45 female
• Module type: Keystone jack
• Termination: Toolless IDC
• Wiring standard: T568A/B
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor gauge: 22–26 AWG solid or stranded
• Housing material: High-impact ABS plastic
• Contact plating: 50µm gold over phosphor bronze
• Colour: Black
• Mounting: Standard keystone snap-in
• Durability: 750 mating cycles
• Operating temperature: -10°C to 60°C
• Certifications: RoHS, CE

Final note

For network professionals who value speed and consistency, the DSIT DS-KC-UTP6A-TL-1 delivers tool-free termination with full CAT6a performance—a smart addition to any structured cabling project.
