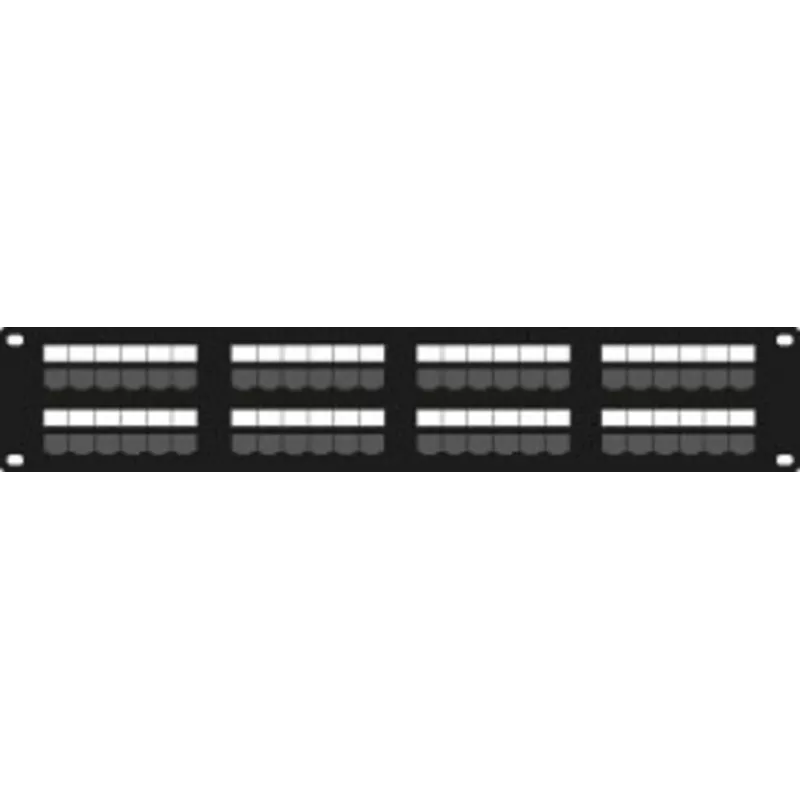

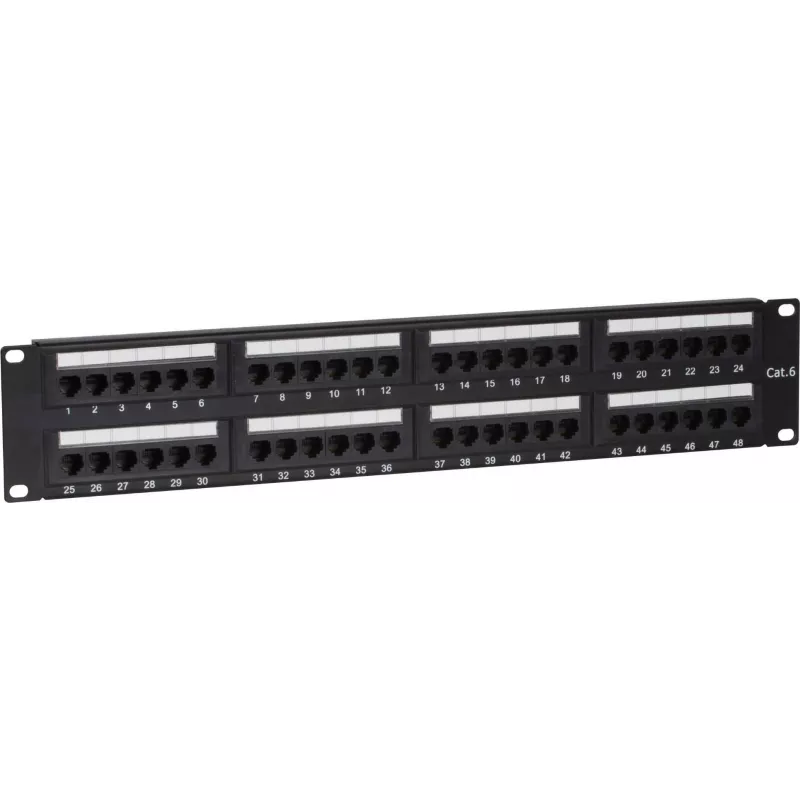

DSIT DS-Patch6-48UTP CAT6 UTP 19 palcový 48-portový sieťový patch panel, 1U, čierny

In a busy server room, a network technician needs to connect 48 Ethernet cables from workstations to a central switch. The DSIT DS-Patch6-48UTP CAT6 UTP 19" 48-Port Network Patch Panel provides a tidy, reliable termination point for all those horizontal runs. Mounted in a standard 19-inch rack, this 1U panel brings order to high-density cabling, making moves, adds, and changes straightforward.

Key specifications

• Category 6 performance with unshielded twisted pair (UTP) design, supporting frequencies up to 250 MHz

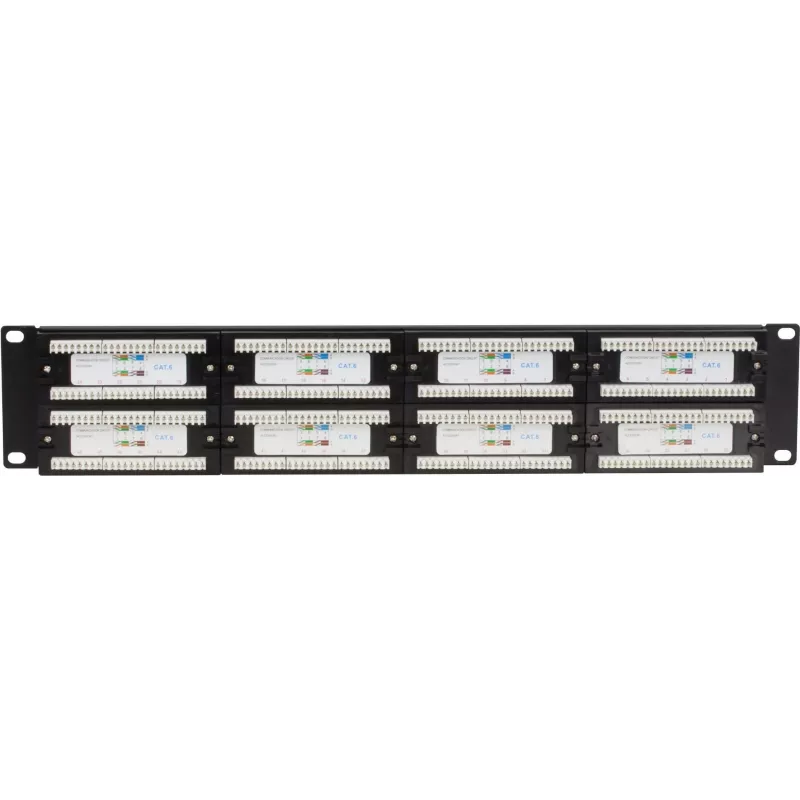

• 48 RJ45 female ports on the front, each with IDC termination on the rear for 22-26 AWG solid or stranded conductors
• Compatible with TIA/EIA 568A and 568B wiring schemes; use a 110-type or Krone punch-down tool
• Durable SPCC cold-rolled steel housing with black RAL 9005 finish; phosphor bronze contacts with 50µ gold plating
• Rack-mountable in 19-inch racks, occupying 1 rack unit (1U); numbered ports with write-on areas for labeling
• Operating temperature range -10°C to 60°C; compliant with RoHS and CE

Why choose it

This patch panel delivers reliable CAT6 performance in a compact 1U form factor. The gold-plated contacts resist corrosion and ensure stable connections, while the sturdy steel frame withstands the rigors of daily use. Clear port numbering speeds up troubleshooting and reduces downtime.

Ideal use cases

• Data centers and server rooms requiring high-density copper patching
• Enterprise LAN installations where 48 ports are needed in a single rack space
• Network upgrades from CAT5e to CAT6 without replacing existing UTP cabling
• Structured cabling projects in commercial buildings

Good to know

The panel supports both T568A and T568B wiring, so it fits into any existing infrastructure. It does not include cables or a punch-down tool; those must be purchased separately. For best performance, use CAT6 UTP cable and maintain proper bend radius during installation.
